DTC P226D
Precautions: General safety (00)
DTC Detecting Condition and Trouble Area
| DTC detecting condition | Trouble area |
|---|---|
|
P226D: Particulate Filter Deteriorated / Missing Substrate Bank 1 DPF® regeneration performance considerably decreases. (3 D/C detection logic) |
•DPF® differential pressure sensor and/or its circuit
•DPF® differential pressure sensor pipe and/or hose •DPF® •ECM |

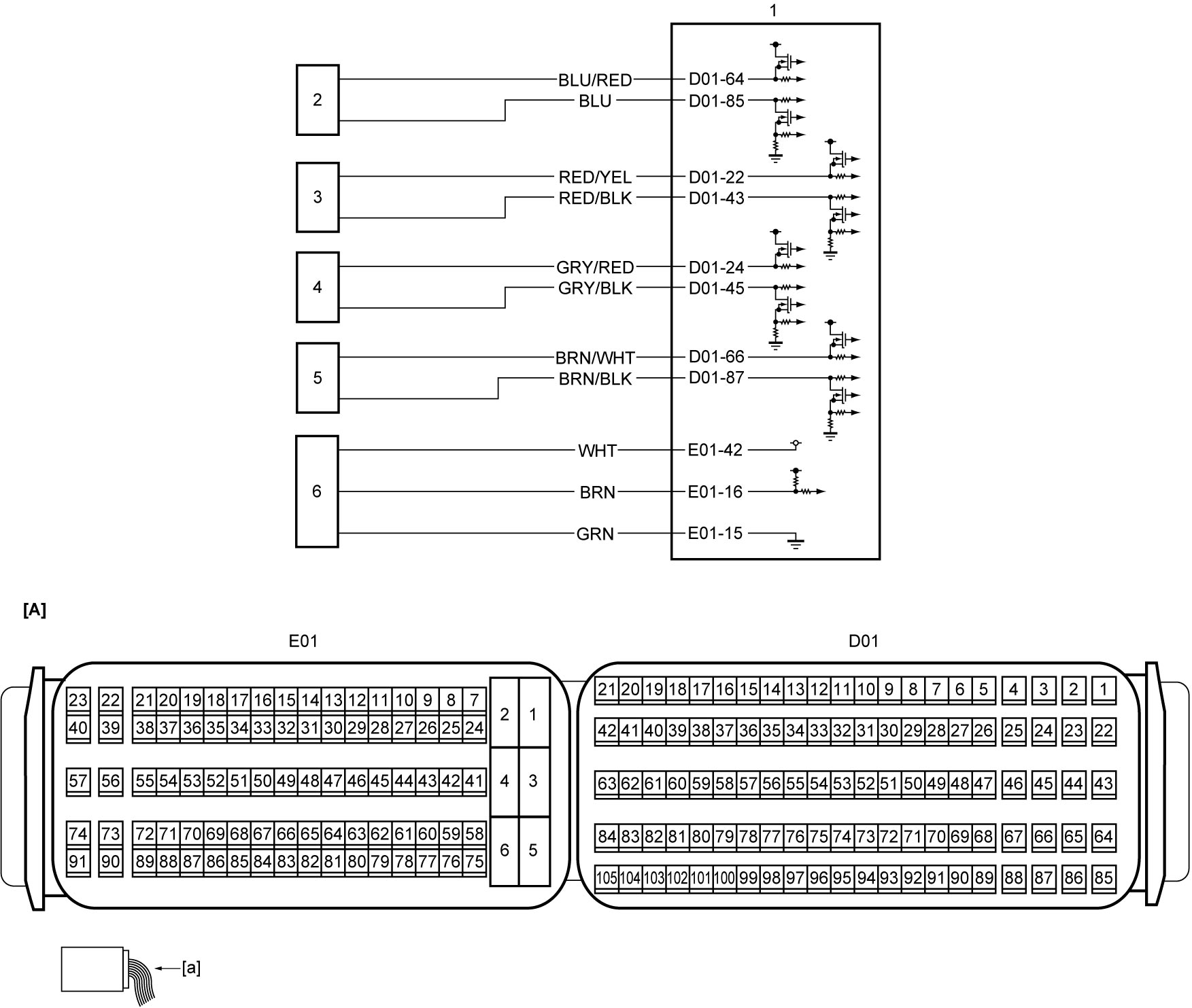

Circuit Diagram
| [A]: | ECM connector (View: [a]) | 3. | Fuel injector No.2 | 6. | DPF® differential pressure sensor |
| 1. | ECM | 4. | Fuel injector No.3 | ||
| 2. | Fuel injector No.1 | 5. | Fuel injector No.4 |
DTC Troubleshooting
| Step | Action | Yes | No |
|---|---|---|---|
| 1 |
Was “Engine and Emission Control System Check” performed?
|
Go to Step 2.
|
|
| 2 |
Exhaust system check
1)Check exhaust system for obstructions, damage, leakage and breaks.
Is check result OK?
|
Go to Step 3.
|
Repair or replace defective part(s).
|
| 3 |
DPF® differential pressure sensor operation check
1)Check DPF® differential pressure sensor operation.
Is check result OK?
|
Go to Step 4.
|
Repair or replace defective part(s).
|
| 4 |
DPF® replacement
1)Replace DPF®.
2)Clear DTC.
3)Set ignition “OFF”.
4)Check DTC.
Is DTC P226D still detected?
|
Replace ECM and recheck DTC.
|
End.
|
