DTC P2453 / P2454 / P2455
Precautions: General safety (00)
DTC Detecting Condition and Trouble Area
| DTC detecting condition | Trouble area |
|---|---|
|
P2453: Diesel Particulate Filter Pressure Sensor “A” Circuit Range / Performance Any of the following conditions is met.
•DPF® differential pressure is lower then specified value. (1 D/C detection logic)•Difference between pressure of upstream of DPF® and barometric pressure is higher than specified value. |
•DPF® differential pressure sensor and/or its circuit
•DPF® differential pressure sensor pipe and/or hose •DPF® •ECM |
|
P2454: Diesel Particulate Filter Pressure Sensor “A” Circuit Low Output voltage of DPF® differential pressure sensor signal circuit is lower than specified value. (1 D/C detection logic) |
|
|
P2455: Diesel Particulate Filter Pressure Sensor “A” Circuit High Output voltage of DPF® differential pressure sensor signal circuit is higher than specified value. (1 D/C detection logic) |

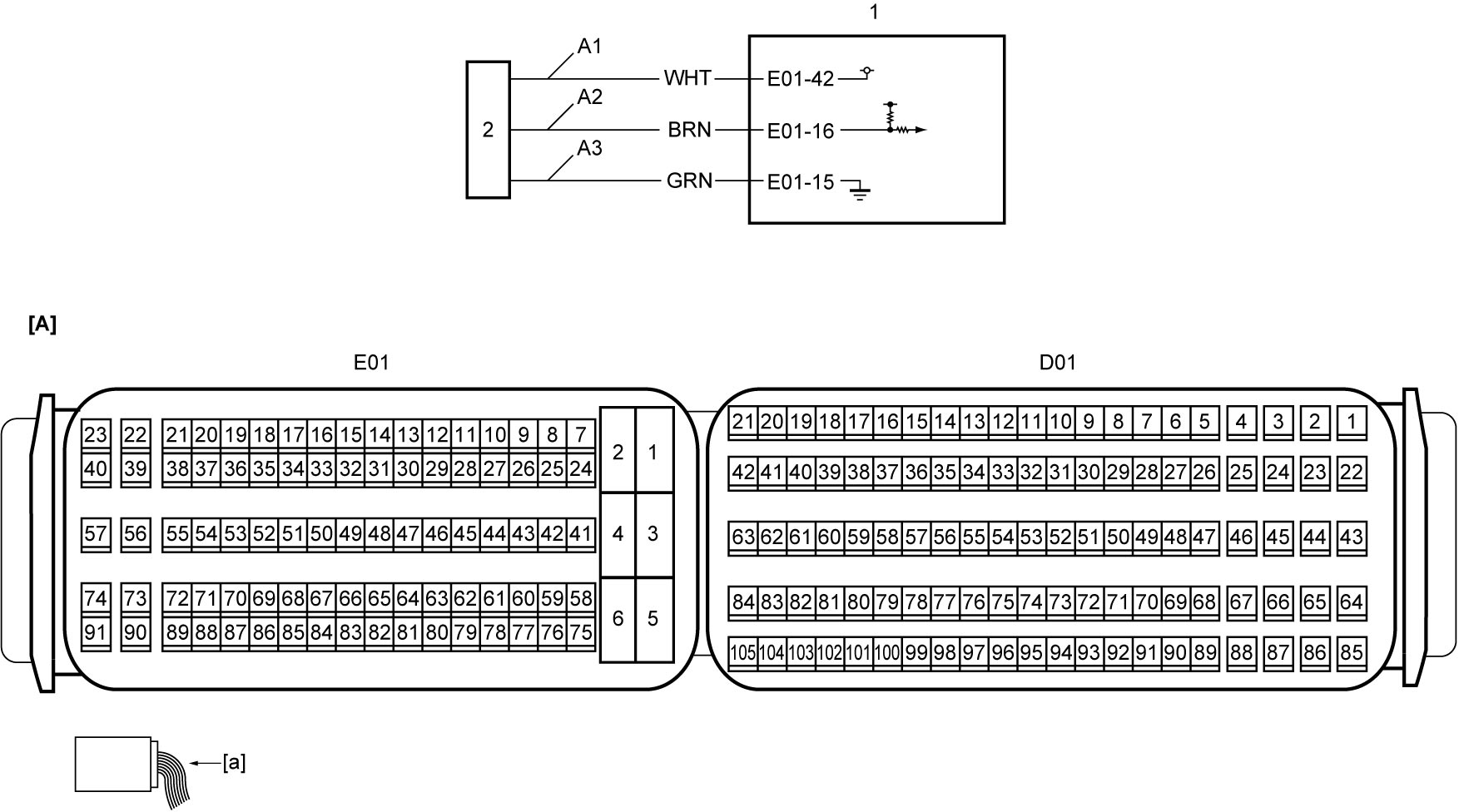

Circuit Diagram
| [A]: | ECM connector (View: [a]) | A2: | DPF® differential pressure sensor signal circuit | 1. | ECM |
| A1: | DPF® differential pressure sensor power supply circuit | A3: | DPF® differential pressure sensor ground circuit | 2. | DPF® differential pressure sensor |
DTC Troubleshooting
| Step | Action | Yes | No |
|---|---|---|---|
| 1 |
Was “Engine and Emission Control System Check” performed?
|
Go to Step 2.
|
|
| 2 |
DPF® differential pressure sensor power supply circuit, signal circuit and ground circuit check
1)Check “A1”, “A2” and “A3” circuits according to Step 2 – 5 of DPF® Differential Pressure Sensor Check:D16AA.
Is check result OK?
|
Go to Step 3.
|
Repair or replace defective wire harness.
|
| 3 |
DPF® differential pressure sensor check
1)Check DPF® differential pressure sensor.
Is check result OK?
|
Go to Step 4.
|
Replace DPF® differential pressure sensor.
|
| 4 |
DPF® differential pressure sensor hose and pipe check
1)Check DPF® differential pressure sensor hose and pipe for obstructions, damage, leakage and, breaks.
Is check result OK?
|
Go to Step 5.
|
Repair or replace defective part(s).
|
| 5 |
DTC check
1)Check DTCs.
Is DTC P1206, P2002, P226D or P24A4 detected?
|
Go to troubleshooting for DTC P1206, P2002, P226D or P24A4.
|
Go to Step 6.
|
| 6 |
DPF® replacement
1)Replace DPF®.
2)Clear DTC.
3)Set ignition “ON”.
4)Check DTCs.
Is DTC P2453, P2454 or P2455 still detected?
|
Replace ECM and recheck DTC.
|
End.
|
