Flywheel / Drive Plate Removal and Installation

Precautions: General safety (00)

Removal

1)For M/T model, remove clutch cover and clutch disc.

For A/T model, remove transaxle assembly.

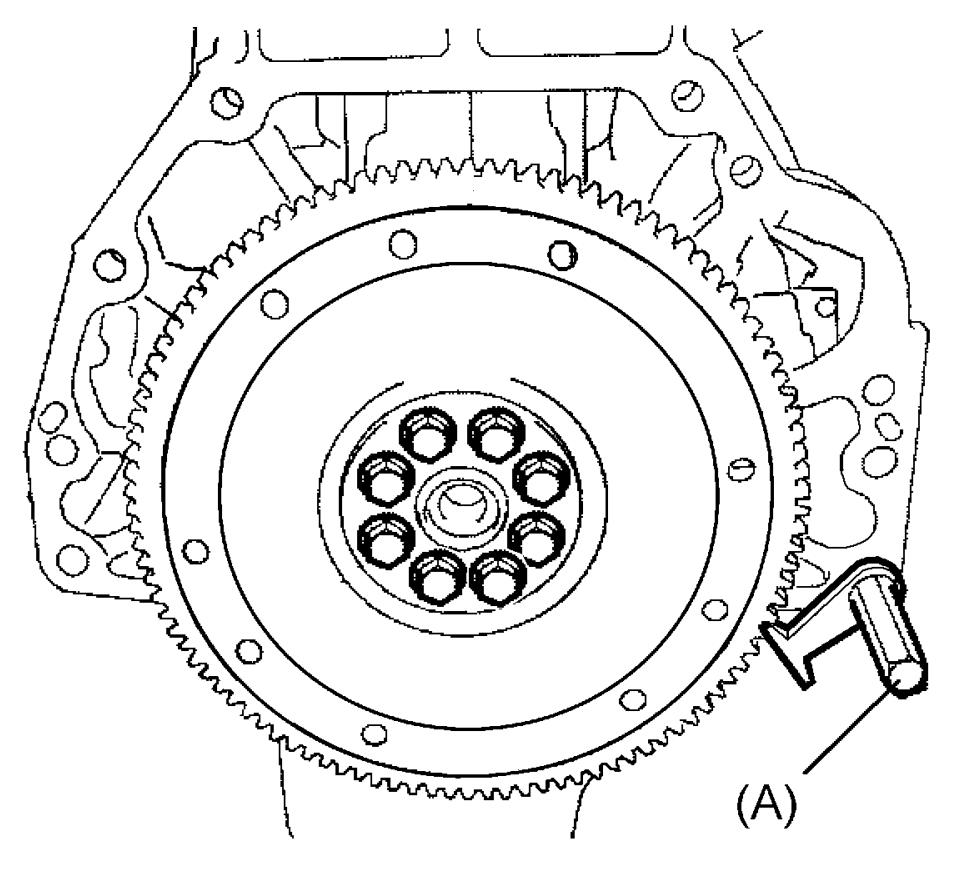

2)Lock flywheel (M/T model) or drive plate (A/T model) using special tool as shown in figure.

Special Tool

(A): 09924–17811

3)Remove flywheel (M/T model) or drive plate (A/T model) from crankshaft.

Installation

1)Install flywheel (M/T model) or drive plate (A/T model) according to the following procedure.

NOTE:

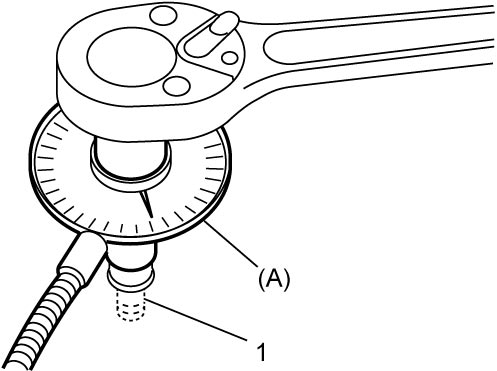

For accurate angle tightening of flywheel bolt (M/T model) (1) or drive plate bolt (A/T model) (1), it is recommended to use tightening angle gauge (special tool).

Special Tool

(A): 09919–56510

a)Install new flywheel bolts (M/T model) or new drive plate bolts (A/T model).

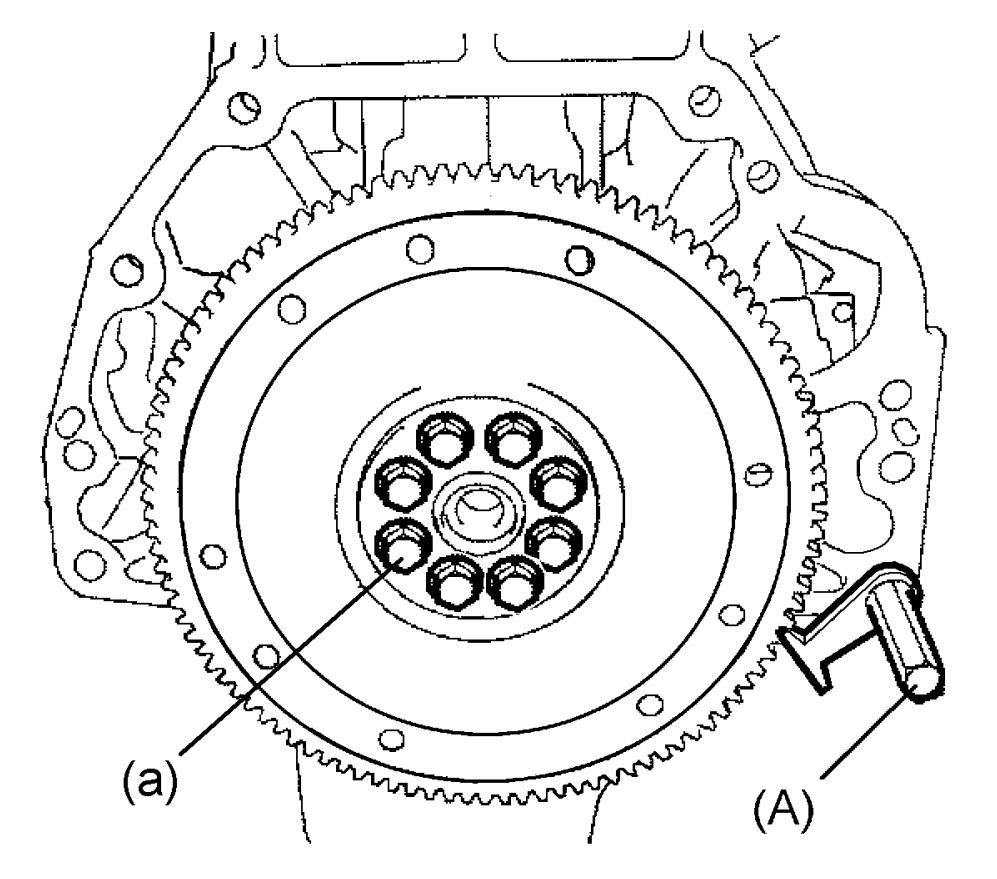

b)Lock flywheel (M/T model) or drive plate (A/T model) using special tool as shown in figure.

Special Tool

(A): 09924–17811

c)For M/T model, tighten all flywheel bolts evenly and gradually to 20 N·m (2.0 kgf-m, 15.0 lbf-ft).

d)For M/T model, retighten them 34°.

Tightening torque

Flywheel bolt* (a): 20 N·m → +34° (2.0 kgf-m → +34°, 15.0 lbf-ft → +34°)

e)For A/T model, tighten drive plate bolts to specified torque.

Tightening torque

Drive plate bolt (a): 75 N·m (7.6 kgf-m, 55.5 lbf-ft)

2)For M/T model, install clutch cover and clutch disc.

For A/T model, install transmission assembly.
