EGR Valve Components
Precautions: General safety (00)

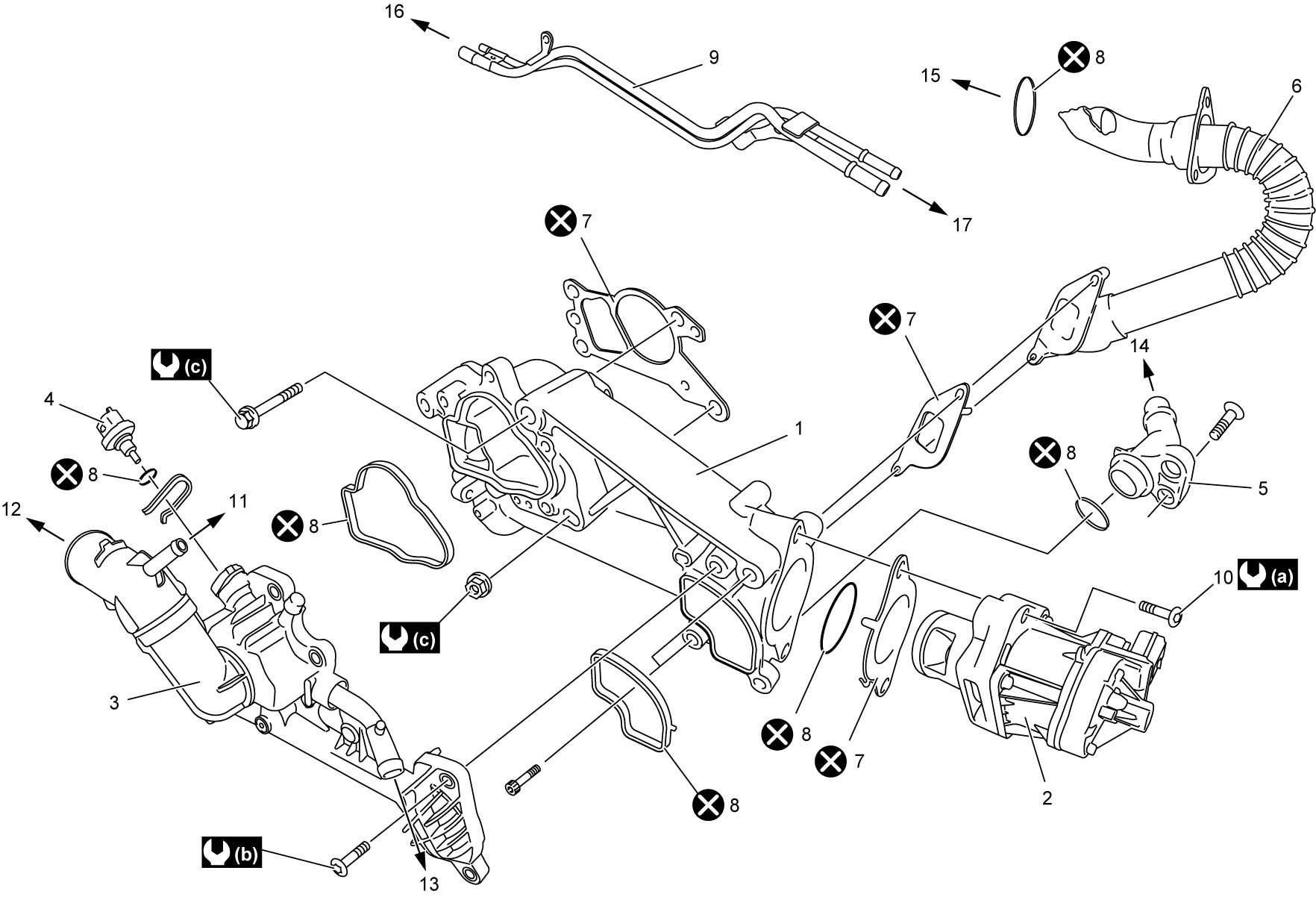

EGR-1 Valve
| 1. | EGR-1 valve mounting | 8. | O-ring | 15. | To intake manifold |
| 2. | EGR-1 valve | 9. | DPF® differential pressure sensor pipe | 16. | To DPF® |
| 3. | Thermostat | 10. | EGR-1 valve bolt | 17. | To DPF® differential pressure sensor |
| 4. | ECT sensor | 11. | To degassing tank |
 : |
6.0 N·m → 10 N·m (0.61 kgf-m → 1.0 kgf-m, 4.5 lbf-ft → 7.5 lbf-ft) |
| 5. | Hose connector | 12. | To radiator |
 : |
10 N·m (1.0 kgf-m, 7.5 lbf-ft) |
| 6. | EGR pipe | 13. | To heater core |
 : |
28 N·m (2.9 kgf-m, 21.0 lbf-ft) |
| 7. | Gasket | 14. | To heat exchanger No.1 |
 : |
Do not reuse. |

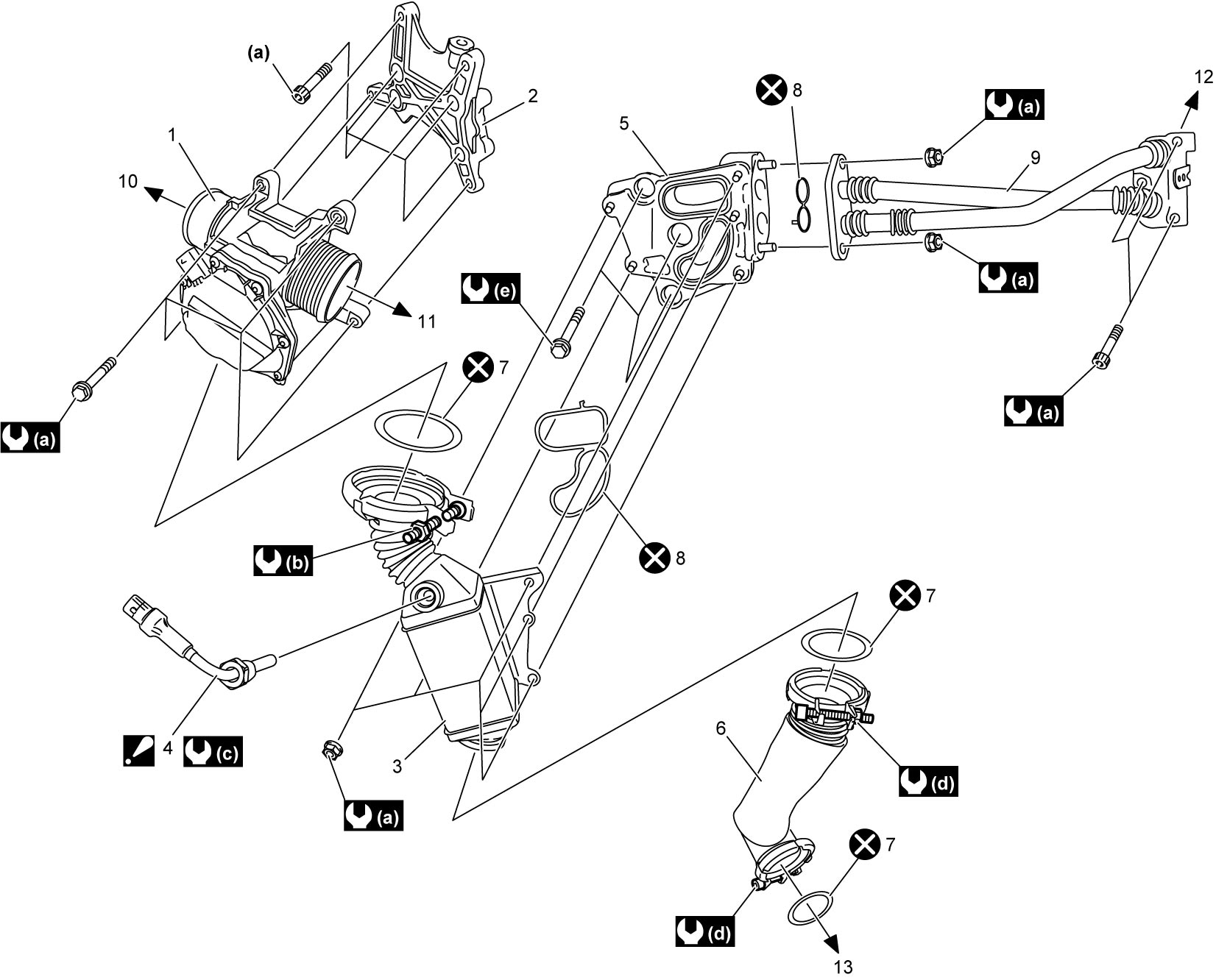

EGR-2 Valve
| 1. | EGR-2 valve | 8. | O-ring |
: |
13 N·m (1.3 kgf-m, 9.5 lbf-ft) |
| 2. | EGR-2 valve bracket | 9. | EGR cooler pipe |
: |
45 N·m (4.6 kgf-m, 33.5 lbf-ft) |
| 3. | EGR cooler | 10. | To air cleaner outlet No.2 hose |
 : |
9.0 N·m → 11 N·m (0.92 kgf-m → 1.1 kgf-m, 7.0 lbf-ft → 8.5 lbf-ft) |
 4. |
EGT sensor-4 : For installation, refer to EGT Sensor Removal and Installation:D16AA. |
11. | To turbocharger |
 : |
56 N·m (5.7 kgf-m, 41.5 lbf-ft) |
| 5. | EGR cooler bracket | 12. | To EGR-1 valve mounting |
: |
Do not reuse. |
| 6. | EGR lower pipe : For tightening order, refer to DPF® Removal and Installation:D16AA. |
13. | To DPF® | ||
| 7. | Gasket |
: |
10 N·m (1.0 kgf-m, 7.5 lbf-ft) |
