Crankshaft Front Oil Seal Replacement
Precautions: General safety (00)
1)Remove engine assembly.
2)Disconnect transaxle from engine.
•M/T model:
•Twin clutch system model:
•Twin clutch system model:
3)Remove timing belt.
4)Remove crankshaft timing belt pulley as follows.

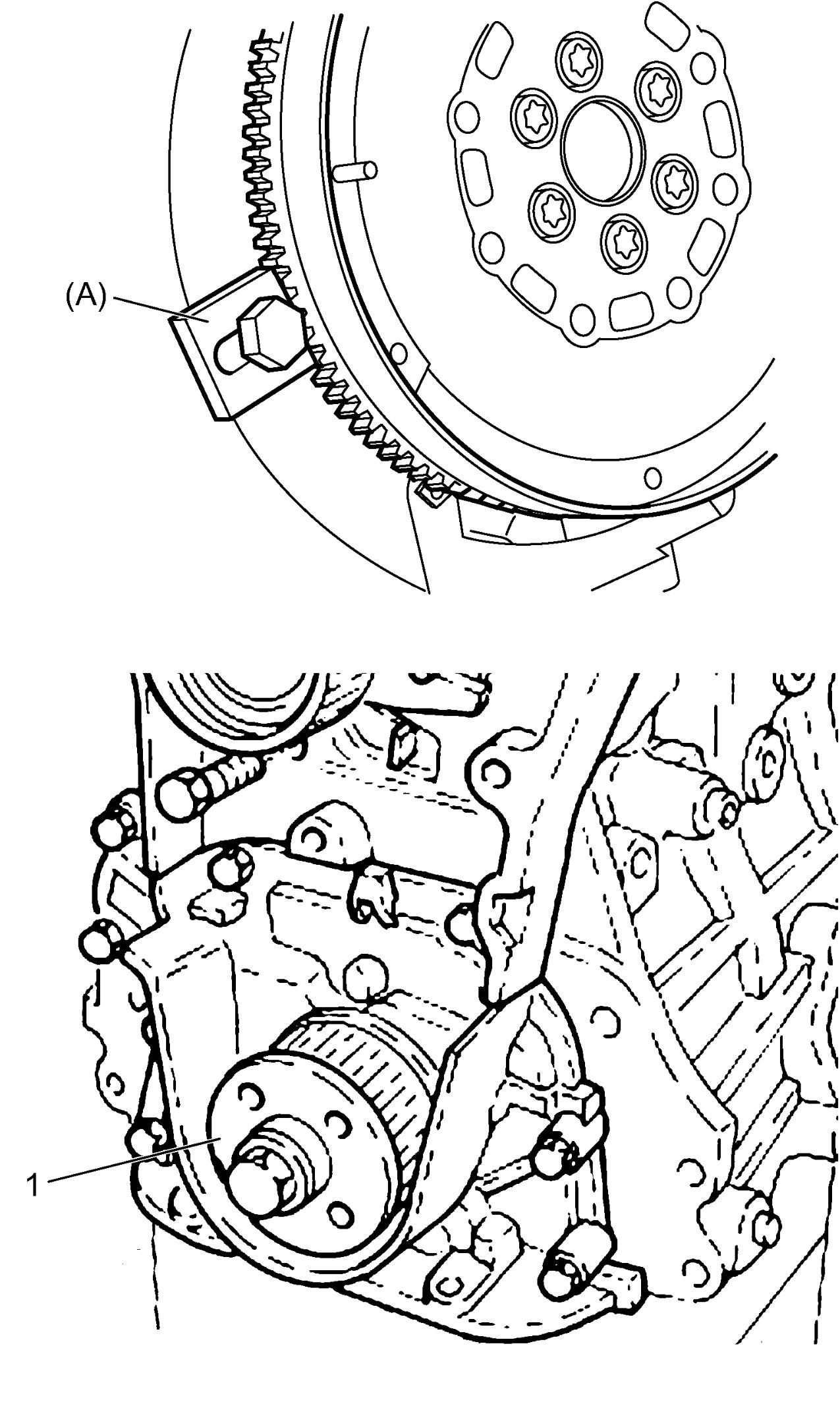

b)Loosen crankshaft timing belt pulley bolt, and remove crankshaft timing belt pulley (1).
NOTE:
Turn crankshaft timing belt pulley bolt clockwise to loosen it.

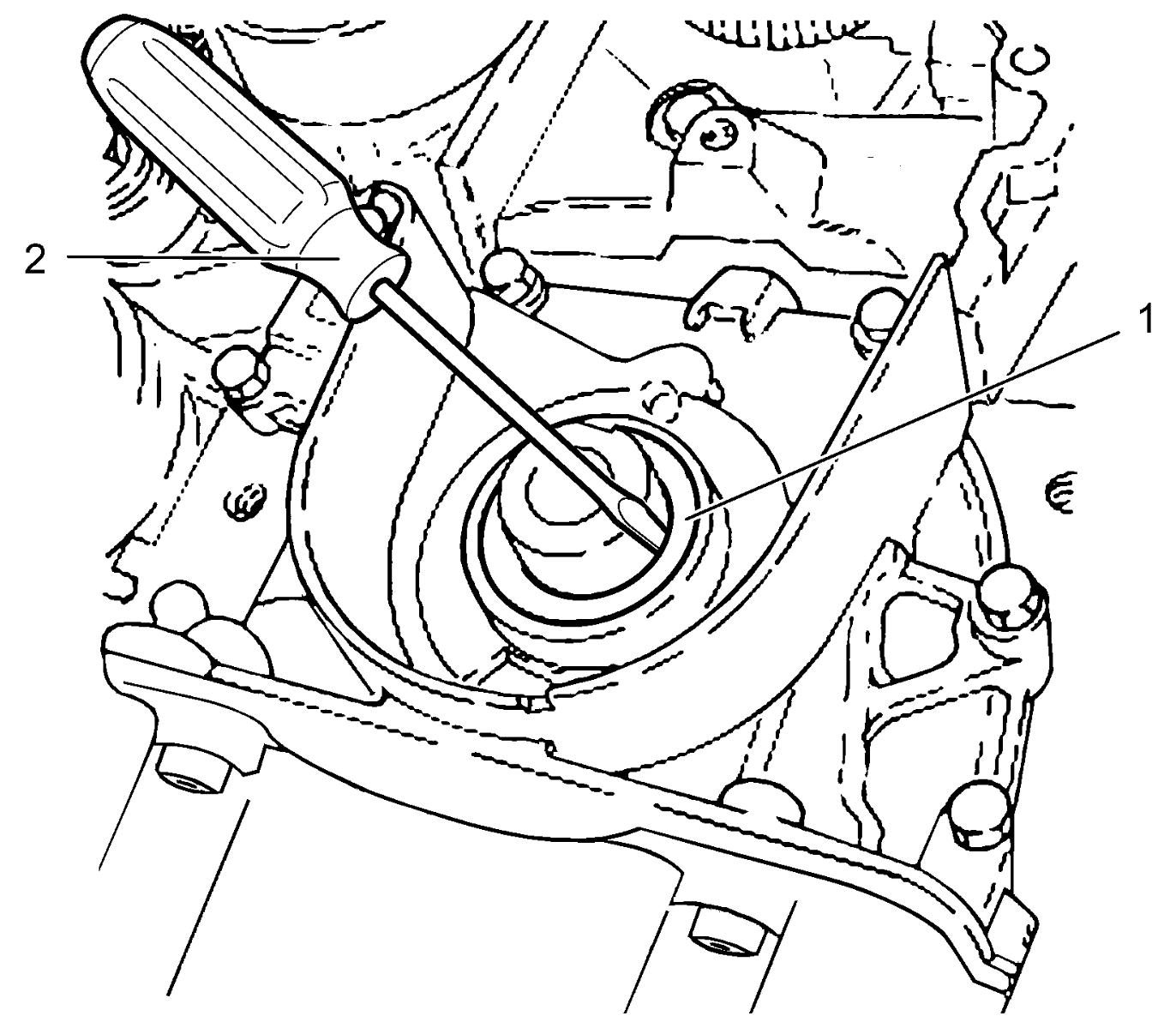

5)Remove crankshaft front oil seal (1) using flat-bladed screwdriver (2) or the like.
6)Install crankshaft front oil seal as follows.

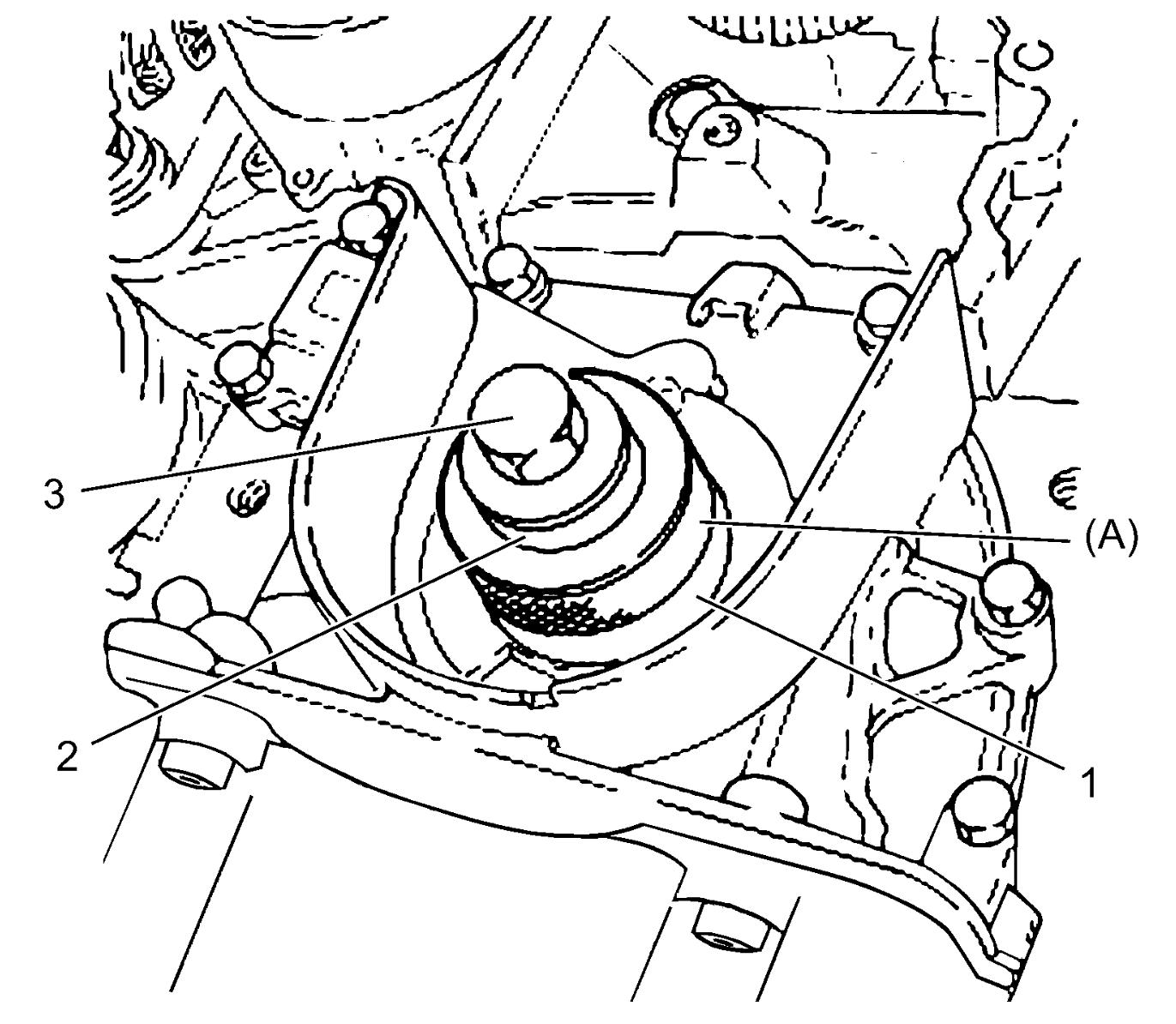

b)Install crankshaft front oil seal (1) with special tool (A) and crankshaft pulley washer (2)
c)Tighten crankshaft timing belt pulley bolt (3), until special tool contacts with oil pump.
NOTE:
Turn crankshaft timing belt pulley bolt counterclockwise to tighten it.
d)Remove special tool and crankshaft pulley washer.

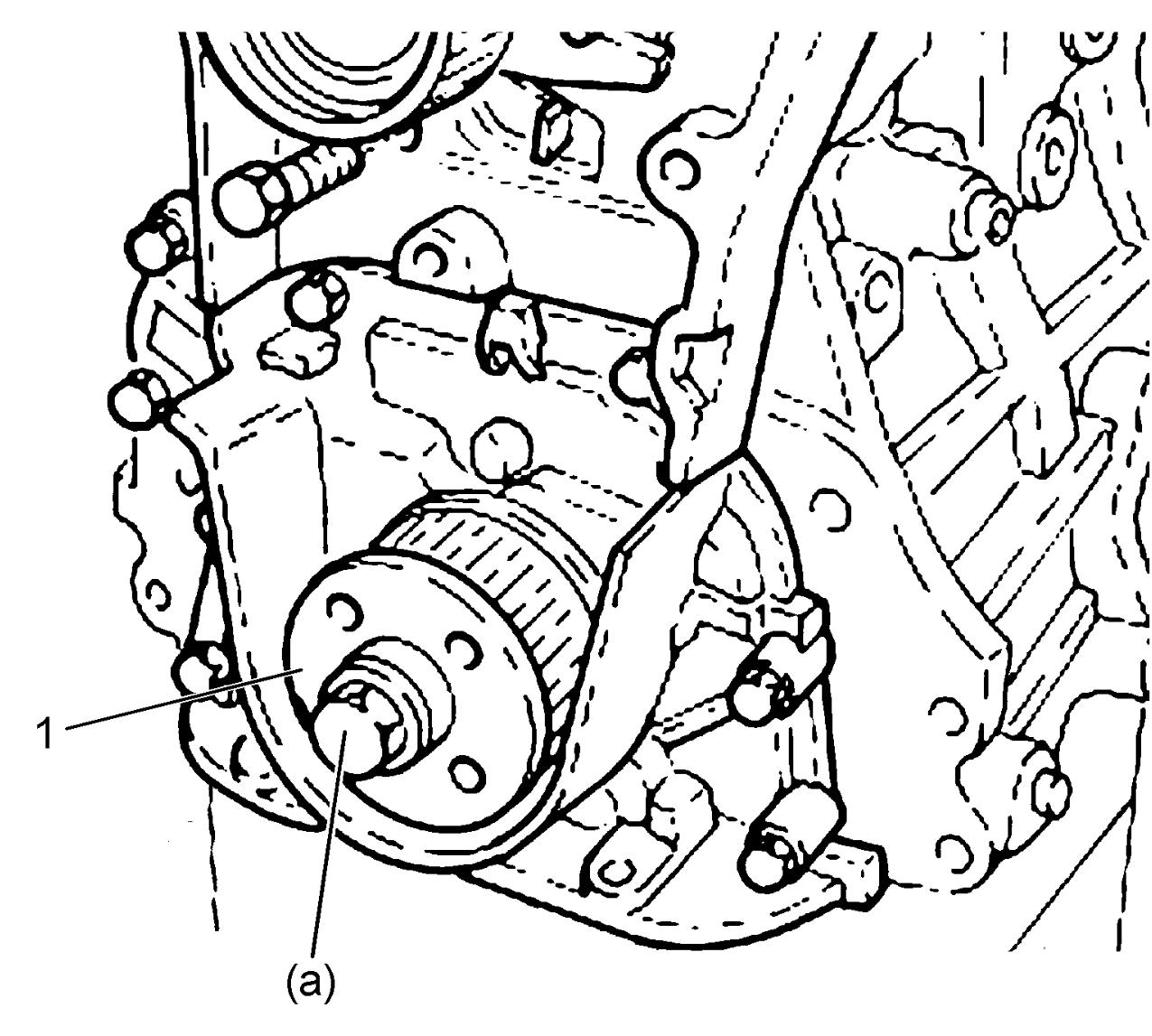

7)Install crankshaft timing belt pulley (1), and tighten crankshaft timing belt pulley bolt.
NOTE:
Turn crankshaft timing belt pulley bolt counterclockwise to tighten it.
9)Install timing belt.
10)Connect transaxle to engine.
•M/T model:
•Twin clutch system model:
•Twin clutch system model:
11)Install engine assembly.
