Water Pump / Generator Drive Belt Removal and Installation
Precautions: Precautions for Handling Battery · Precautions for Replacing Battery · General safety (00)
Removal
1)Remove engine undercover.
2)On vehicle equipped with A/C, remove compressor drive belt before removing water pump / generator drive belt (1).
•Manual A/C model:
•Automatic A/C model:
•Automatic A/C model:

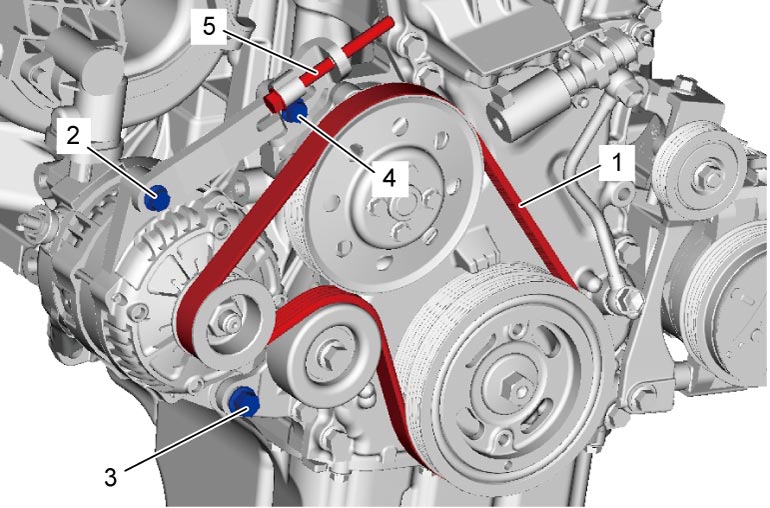

3)Loosen generator bolt (2), pivot bolt (3) and adjuster bolt (4).
4)Loosen generator adjusting bolt (5), and then remove water pump / generator drive belt.
5)Remove tensioner pulley if necessary.
Installation
1)Install tensioner pulley and tighten pulley bolt to specified torque, if removed.

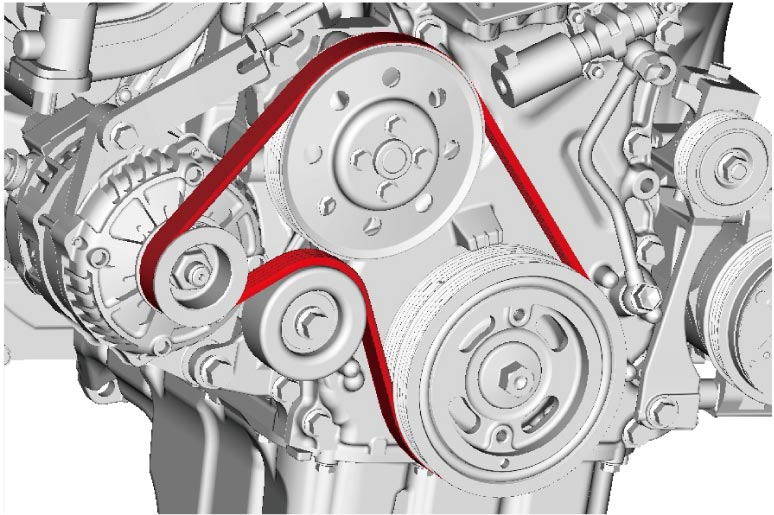

2)Install water pump / generator drive belt (1) as shown in figure.
3)Adjust belt tension.
4)If vehicle equipped with A/C, install compressor drive belt.
•Manual A/C model:
•Automatic A/C model:
•Automatic A/C model:
NOTE:
Check that drive belt is installed in grooves of each pulley correctly.
5)Install engine undercover.
