Generator Removal and Installation
Precautions: Precautions for Handling Battery · Precautions for Replacing Battery · General safety (00)
Removal
1)Disconnect negative (–) cable at battery.
2)Remove right front fender lining.
3)Remove exhaust No.1 pipe.
4)Remove water pump / generator drive belt.

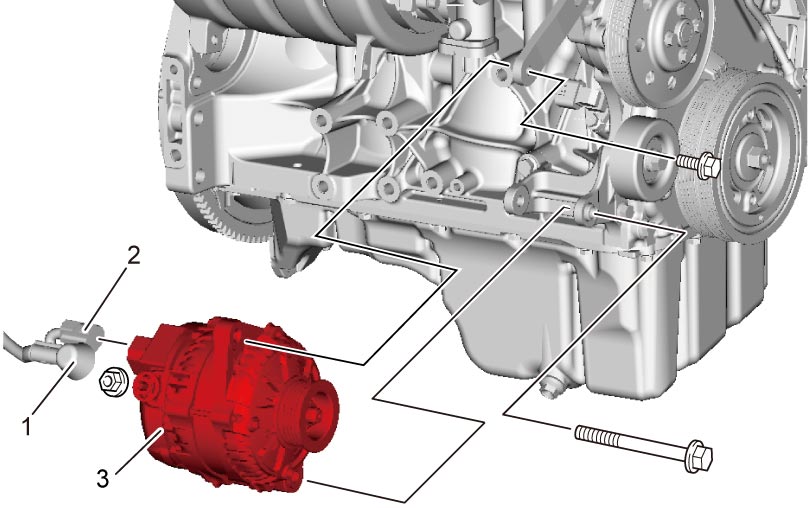

5)Disconnect “B” terminal wire (1) and connector (2) from generator (3).
6)Remove generator.
Installation
Reverse removal procedure noting the following points.

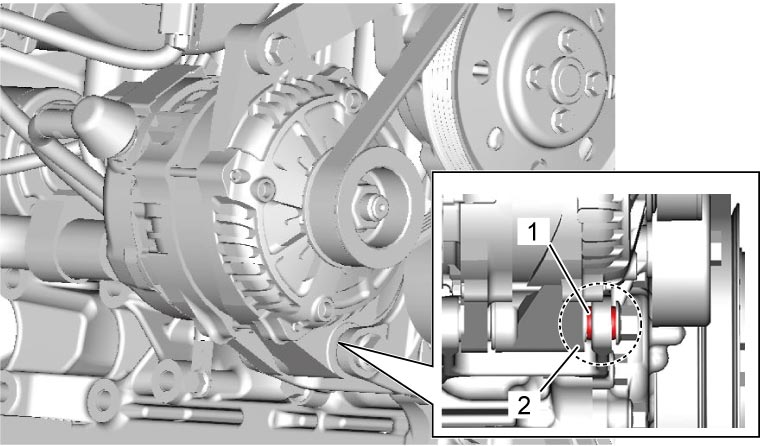

•Before adjusting belt tension, tighten pivot bolt to 30 N·m (3.1 kgf-m, 22.5 lbf-ft) and check that bush (1) in generator bracket is in contact with generator (2), and then loosen the bolt.
•Tighten generator bolt and pivot bolt to specified torque.
Pivot bolt (b): 48 N·m (4.9 kgf-m, 35.5 lbf-ft)

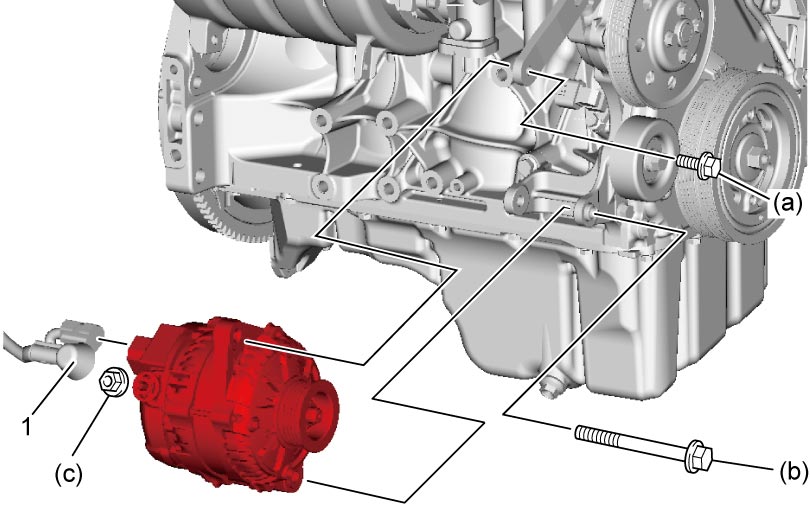

•Connect wire (1) to generator as shown in figure, and tighten “B” terminal nut to specified torque.
Tightening torque
Generator bolt (a): 25 N·m (2.5 kgf-m, 18.5 lbf-ft)Pivot bolt (b): 48 N·m (4.9 kgf-m, 35.5 lbf-ft)
