DTC C1260 / C1261
Precautions: Precautions for Diagnosing Trouble · Precautions for Driveline / Axle · General safety (00)
DTC Detecting Condition and Trouble Area
| DTC detecting condition | Trouble area |
|---|---|
|
C1260: Transfer Oil Temperature Sensor Open Input signal voltage from transfer oil temperature sensor is higher than specified value for specified time. |
•Transfer oil temperature sensor
•Transfer oil temperature sensor circuit •4WD control module |
|
C1261: Transfer Oil Temperature Sensor Short Input signal voltage from transfer oil temperature sensor is lower than specified value for specified time. |

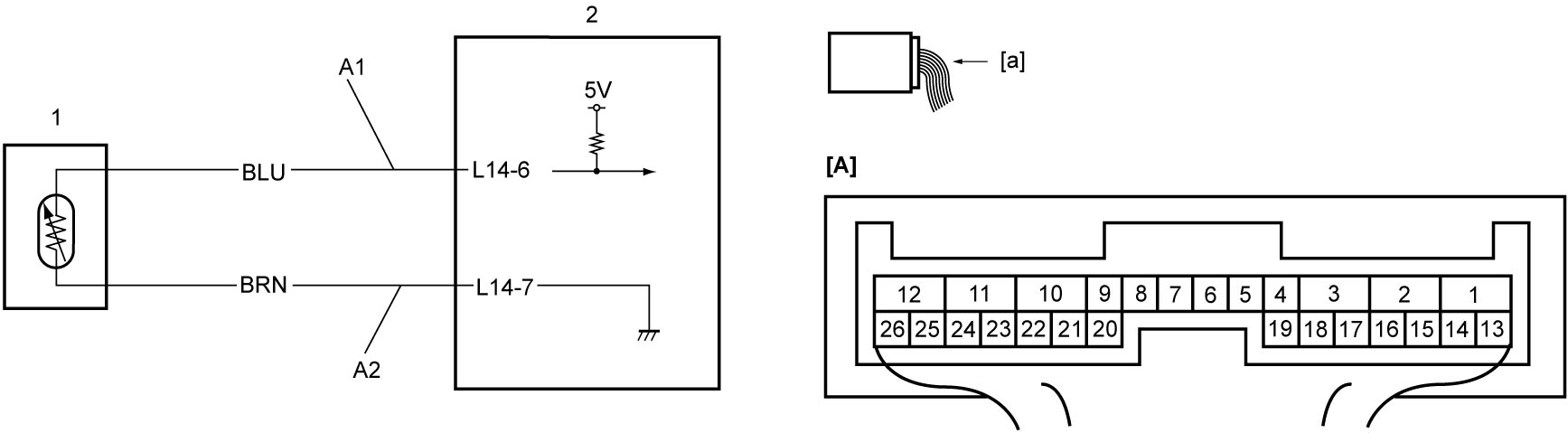

Circuit Diagram
| [A]: | 4WD control module connector (View: [a]) | A2: | Transfer oil temperature sensor ground circuit | 2. | 4WD control module |
| A1: | Transfer oil temperature sensor signal circuit | 1. | Transfer oil temperature sensor |
DTC Confirmation Procedure
1)Set ignition “ON”.
DTC Troubleshooting
| Step | Action | Yes | No |
|---|---|---|---|
| 1 |
Was “4WD control system check” performed?
|
Go to Step 2.
|
Go to 4WD Control System Check.
|
| 2 |
Transfer oil temperature sensor signal circuit and transfer oil temperature sensor ground circuit check
1)Disconnect “L14” and transfer oil temperature sensor connectors with ignition “OFF”.
2)Check for proper connection to 4WD control module and transfer oil temperature sensor.
3)If connections are OK, check the following points.
•Resistance of “A1” and “A2” circuits: less than 1 Ω
•Resistance between “A1” circuit and ground: infinity •Resistance between “A1” circuit terminal and other terminal at transfer oil temperature sensor connector: infinity •Voltage of “A1” circuit: approx. 0 V (When ignition is “ON”) Is check result OK?
|
Go to Step 3.
|
Repair or replace defective wire harness.
|
| 3 |
Transfer oil temperature sensor check
1)Check transfer oil temperature sensor.
Is check result OK?
|
Substitute a known-good 4WD control module and recheck DTC.
|
Replace transfer oil temperature sensor.
|
