Brake Pedal Free Height Inspection

Precautions: Precautions for Brake Service · Precautions for Brakes · General safety (00)

NOTE:

The brake pedal-to-carpet clearance must be measured between the specified points that vary with vehicle specification. Select the appropriate measuring point (1) according to the figure below.

[A]:	LHD-M/T model	[C]:	RHD-M/T model
[B]:	LHD-A/T model and LHD-twin clutch system model	[D]:	RHD-A/T model and RHD-twin clutch system model

Check brake pedal free height. If it is out of specification, check and adjust the following items.

•Brake light switch position:

•Brake booster for installation:

•Length of brake booster push rod:

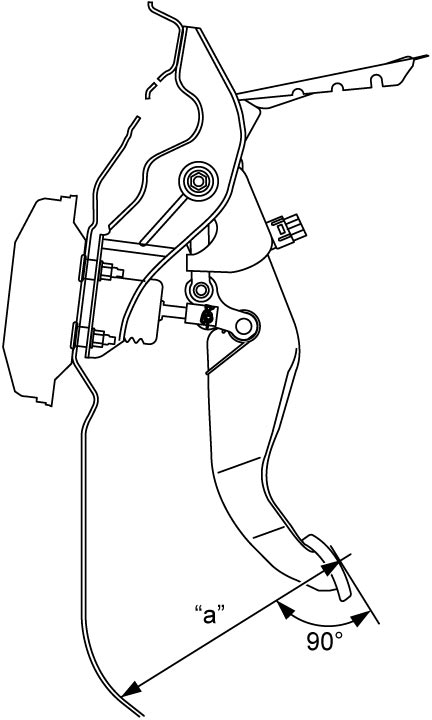

Brake pedal free height “a” from carpet

LHD: 125.0 mm (4.92 in.)

RHD: 113.8 mm (4.48 in.)
