Front Wheel Speed Sensor Removal and Installation

Precautions: Precautions for ESP® · Precautions for Diagnosing Trouble · Test with Speedometer Tester or Other Equipment · Precautions for Brakes · General safety (00)

Reference: Front and Rear Wheel Speed Sensor On-Vehicle Inspection

Removal

1)Disconnect negative (–) cable at battery.

2)Hoist vehicle a little and remove wheel.

3)Remove front fender lining.

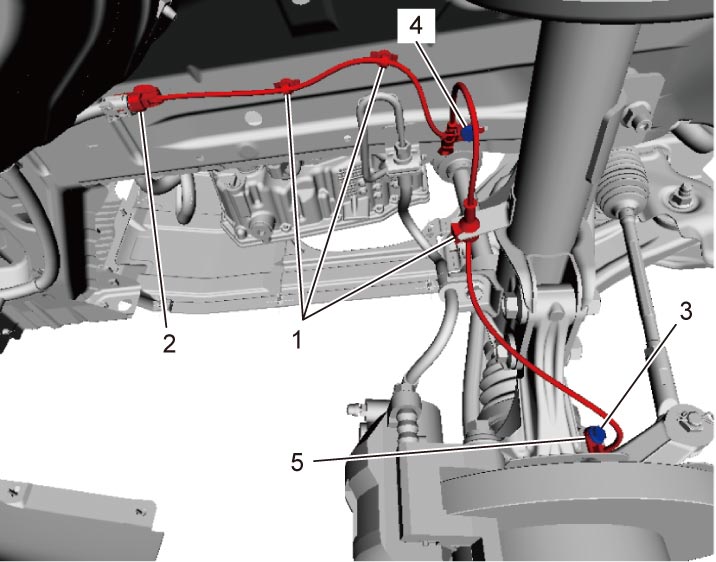

4)Remove clips (1) and disconnect front wheel speed sensor connector (2).

5)Remove front wheel speed sensor bolt (3) and front wheel speed sensor harness bolt (4).

6)Remove front wheel speed sensor (5) from steering knuckle.

Installation

Reference: Front and Rear Wheel Speed Sensor Inspection

Reverse removal procedure noting the following points.

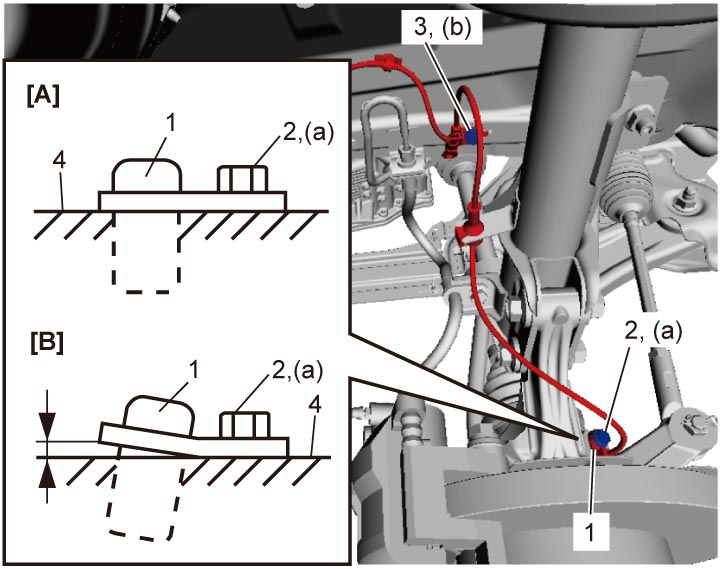

•Check that no iron powder is stuck to sensing area of wheel speed sensor (1).
•Tighten front wheel speed sensor bolt (2) and front wheel speed sensor harness bolt (3) to specified torque.

Tightening torque

Front wheel speed sensor bolt (a): 11 N·m (1.1 kgf-m, 8.5 lbf-ft)
Front wheel speed sensor harness bolt (b): 11 N·m (1.1 kgf-m, 8.5 lbf-ft)

•Check that there is no space between front wheel speed sensor and steering knuckle (4).

[A]:

[B]:

•Install wheel.
