Key Interlock Cable Inspection (Ignition Switch Model)
Precautions: Precautions for Diagnosing Trouble · Precautions for Disassembly and Reassembly · Precautions for Transmission / Transaxle · General safety (00)
1)Shift select lever to P range and set ignition switch to “ACC”.
2)For LHD model, open cap (1) at select lever assembly using a flat-bladed screwdriver.

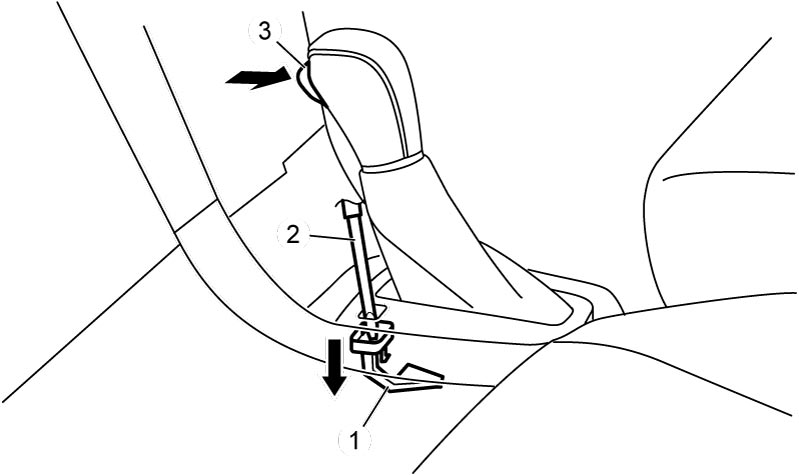

3)While pushing shift lock solenoid release plate (1) at inside of cap using a flat-bladed screwdriver (2), press the select lever button (3).
4)Under the condition in Step 3), check that ignition switch cannot be turned from “ACC” to “LOCK” position.
5)Release the select lever button. Check that ignition switch can be turned from “ACC” to “LOCK” position.
If faulty condition is found, adjust key interlock cable.
If faulty condition is found, adjust key interlock cable.
