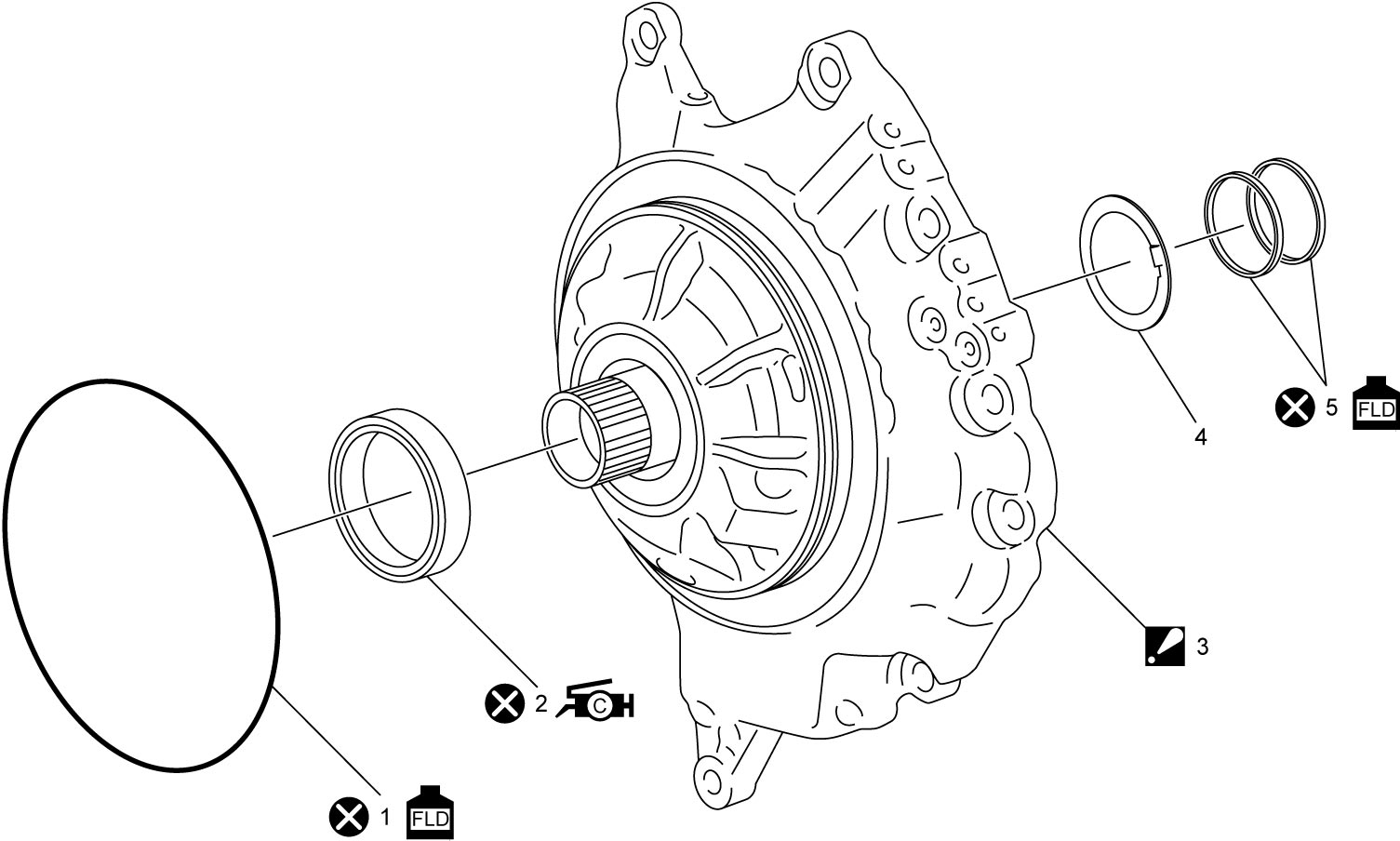

Oil Pump Assembly Components
Precautions: Precautions for Diagnosing Trouble · Precautions for Disassembly and Reassembly · Precautions for Transmission / Transaxle · General safety (00)
| 1. | O-ring | 4. | Oil pump thrust washer |
 : |
Do not reuse. |
 2. |
Oil seal : Apply grease 99000-25030 to oil seal lip. |
5. | Oil seal ring | ||
 3. |
Oil pump body : Do not disassemble. |
 : |
Apply ATF. |
