Output Shaft Speed Sensor Removal and Installation
Precautions: Precautions for Diagnosing Trouble · Precautions for Disassembly and Reassembly · Precautions for Transmission / Transaxle · General safety (00)
Removal
1)Remove counter drive gear.

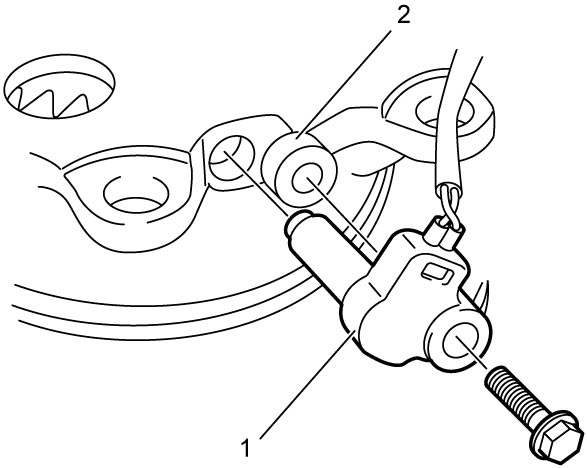

2)Remove output shaft speed sensor (1) and spacer (2).
Installation
Reverse removal procedure noting the following point.

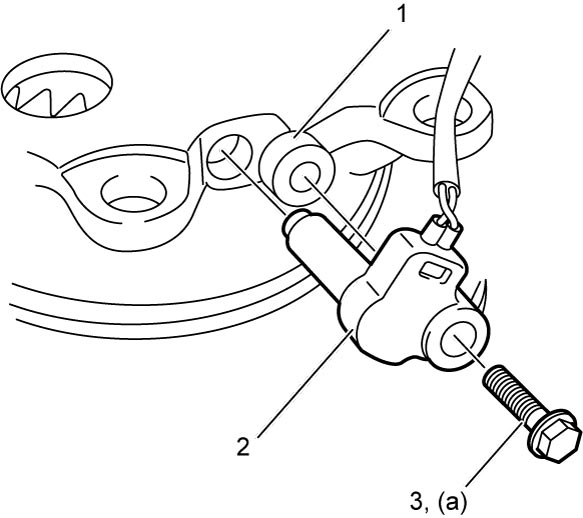

•Install spacer (1) and output shaft speed sensor (2), and then tighten output shaft speed sensor bolt (3) to specified torque.
