Output Shaft Speed Sensor Inspection

Precautions: Precautions for Diagnosing Trouble · Precautions for Disassembly and Reassembly · Precautions for Transmission / Transaxle · General safety (00)

1)Remove output shaft speed sensor.

2)Check the following point.

•End face of output shaft speed sensor and counter drive gear teeth are free from any metal particles and damage.

3)Check output shaft speed sensor as follows.
If faulty condition is found, replace output shaft speed sensor.

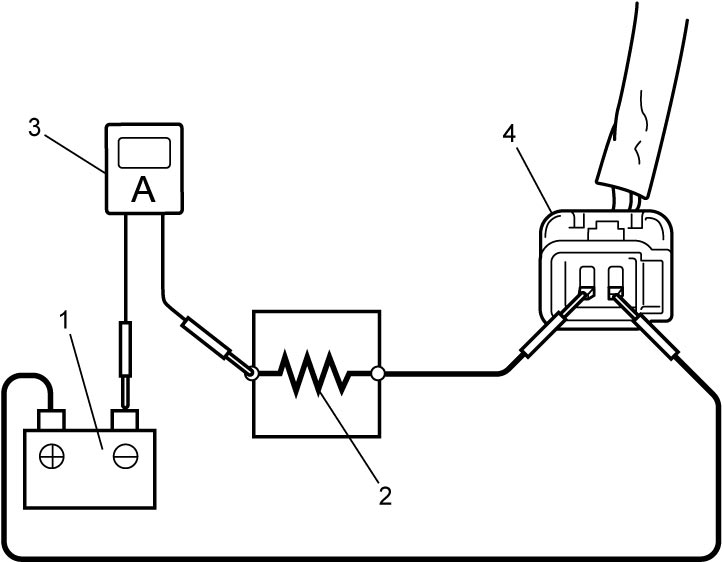

a)Connect battery (1), resistance and ammeter (3) to output shaft speed sensor connector (4) as shown in figure.

2.	Resistance (100 Ω)

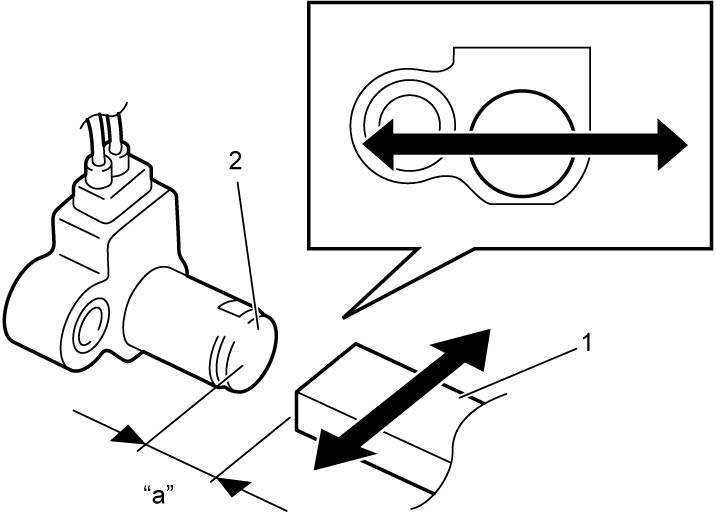

b)Check that current through output shaft speed sensor changes to specified value when ferromagnetic material (iron) (1) passes in front of output shaft speed sensor (2).

NOTE:

The gap “a” between ferromagnetic material (iron) and end face of output shaft speed sensor must be 5 mm (0.19 in) or less.

Output shaft speed sensor current

Current alternates between 4 – 8 mA and 12 – 16 mA
