Input Shaft Speed Sensor Removal and Installation

Precautions: Precautions for Diagnosing Trouble · Precautions for Disassembly and Reassembly · Precautions for Transmission / Transaxle · General safety (00)

Removal

1)Remove valve body assembly.

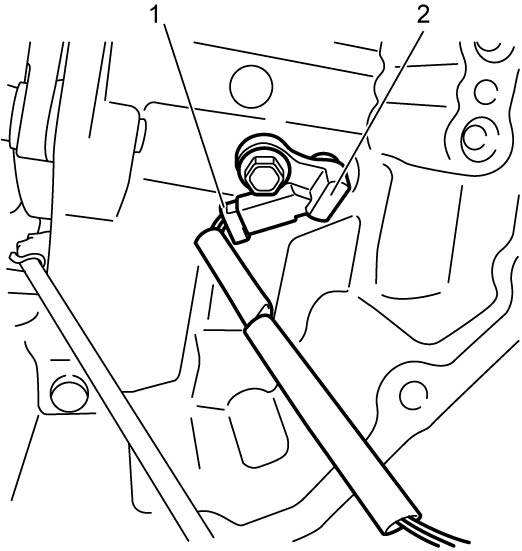

2)Disconnect input shaft speed sensor connector (1).

3)Remove input shaft speed sensor (2).

Installation

Reference: Input Shaft Speed Sensor Inspection

Reverse removal procedure noting the following point.

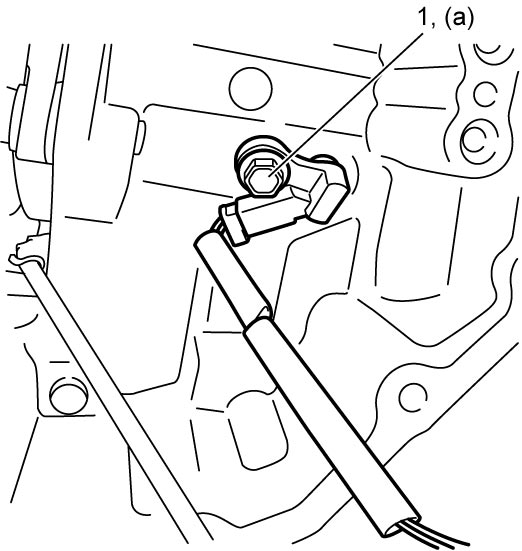

•Tighten input shaft speed sensor bolt (1) to specified torque.

Tightening torque

Input shaft speed sensor bolt (a): 5.4 N·m (0.55 kgf-m, 4.0 lbf-ft)
