Input Shaft Speed Sensor Inspection
Precautions: Precautions for Diagnosing Trouble · Precautions for Disassembly and Reassembly · Precautions for Transmission / Transaxle · General safety (00)
1)Remove input shaft speed sensor.
2)Check the following point.
•End face of input shaft speed sensor and direct clutch drum teeth are free from any metal particles and damage.
3)Check input shaft speed sensor as follows.
If faulty condition is found, replace input shaft speed sensor.
If faulty condition is found, replace input shaft speed sensor.

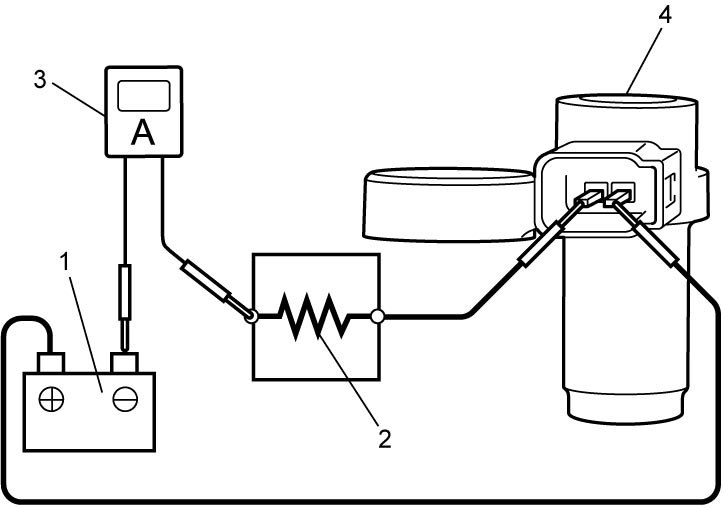

a)Connect battery (1), resistance and ammeter (3) to input shaft speed sensor connector (4) as shown in figure.
| 2. | Resistance (100 Ω) |

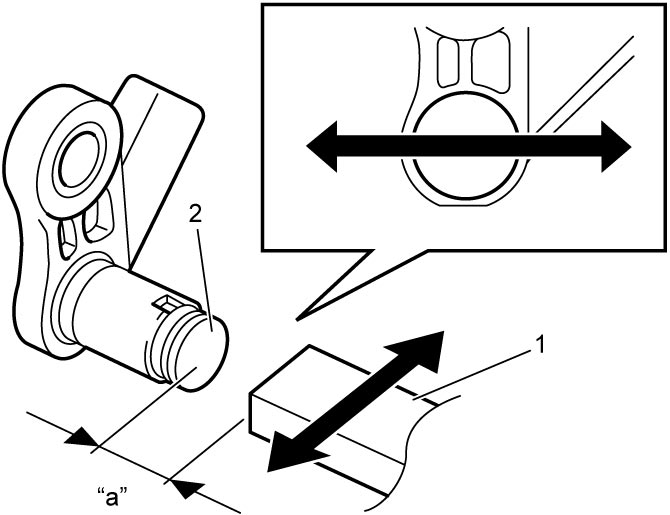

b)Check that current through input shaft speed sensor changes to specified value when ferromagnetic material (iron) (1) passes in front of input shaft speed sensor (2).
NOTE:
The gap “a” between ferromagnetic material (iron) and end face of input shaft speed sensor must be 5 mm (0.19 in) or less.
Input shaft speed sensor current
Current alternates between 4 – 8 mA and 12 – 16 mA
