Solenoid Harness with ATF Temperature Sensor Removal and Installation
Precautions: Precautions for Diagnosing Trouble · Precautions for Disassembly and Reassembly · Precautions for Transmission / Transaxle · General safety (00)
Removal
1)Remove valve body assembly.

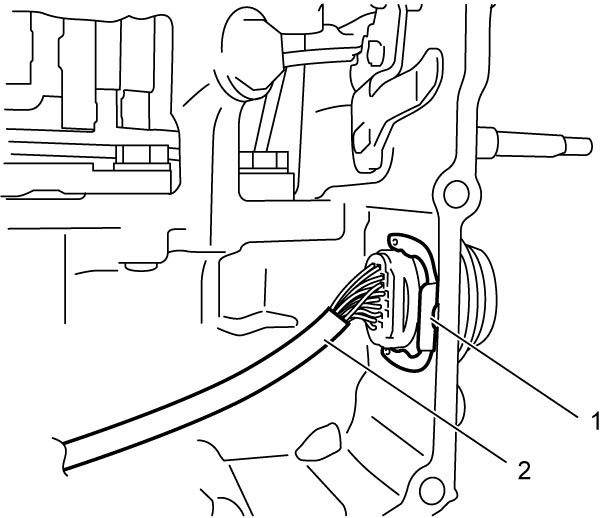

2)Remove solenoid harness lock plate (1) and solenoid harness with ATF temperature sensor (2).
Installation
Reverse removal procedure noting the following points.
•Install solenoid harness lock plate properly.

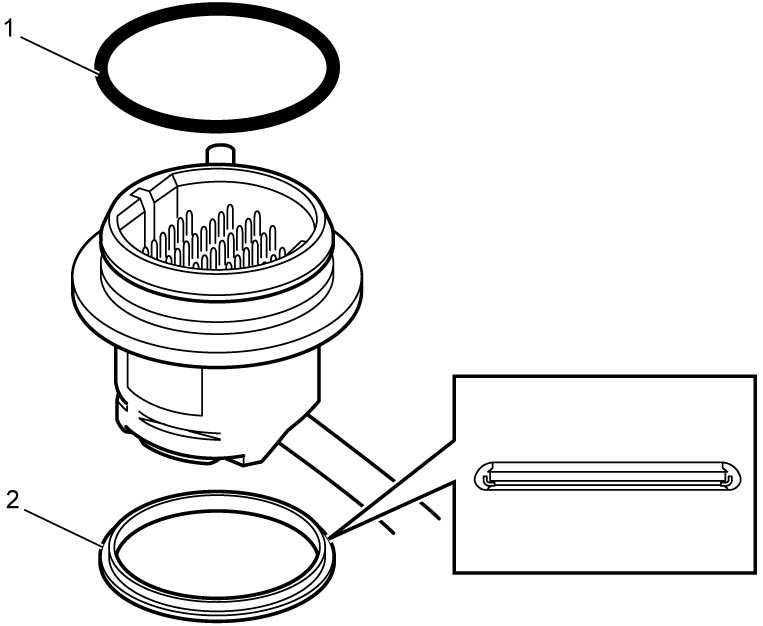

•Use new solenoid harness connector O-ring (1) and new gasket (2).
•Apply ATF to O-ring and gasket.
•Use new solenoid harness connector O-ring (1) and new gasket (2).
•Apply ATF to O-ring and gasket.
