Reverse Clutch Assembly Inspection

Precautions: Precautions for Diagnosing Trouble · Precautions for Disassembly and Reassembly · Precautions for Transmission / Transaxle · General safety (00)

Reference: A/T Assembly Disassembly

Reference: A/T Assembly Reassembly

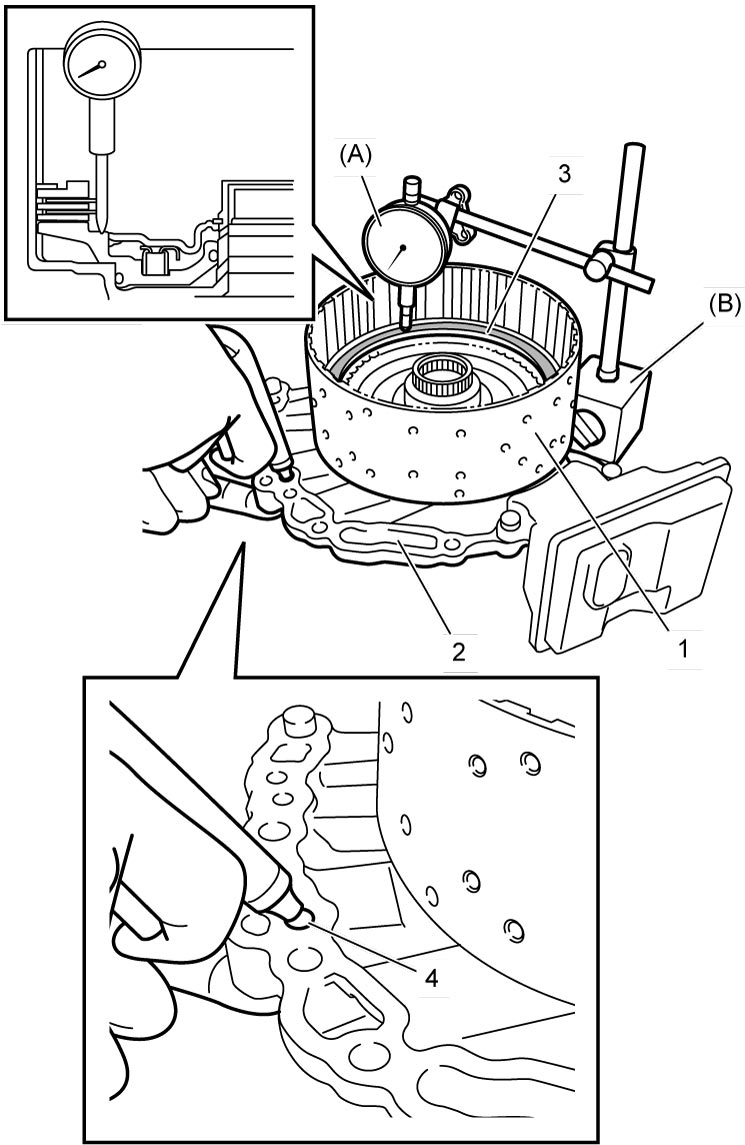

1)Install reverse clutch assembly (1) to oil pump assembly (2).

2)Install special tools to upper surface of reverse clutch piston (3). Blow in air (200 kPa, 2.0 kgf/cm², 29.0 psi) through oil hole (4) of oil pump assembly, and measure piston stroke of reverse clutch.
If piston stroke exceeds specified value, replace reverse clutch assembly.

Special Tool

(A): 09900–20607
(B): 09900–20701

Reverse clutch piston stroke

0.54 to 0.74 mm (0.032 to 0.039 in.)
