Direct Clutch Assembly Inspection

Precautions: Precautions for Diagnosing Trouble · Precautions for Disassembly and Reassembly · Precautions for Transmission / Transaxle · General safety (00)

Reference: A/T Assembly Disassembly

Reference: A/T Assembly Reassembly

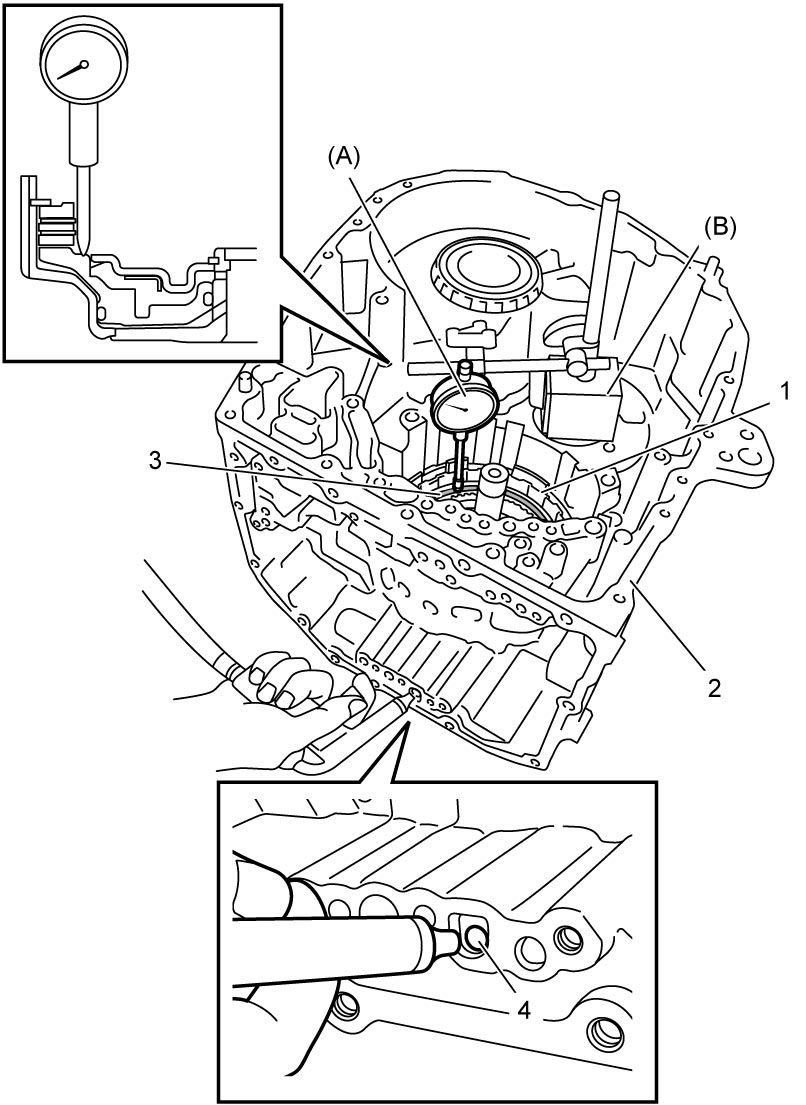

1)Install direct clutch assembly (1) to transaxle case (2).

2)Install special tools to upper surface of direct clutch piston (3). Blow in air (400 kPa, 4.1 kgf/cm², 58.0 psi) through oil hole (4) of transaxle case, and measure piston stroke of direct clutch.
If piston stroke exceeds specified value, replace direct clutch assembly.

Special Tool

(A): 09900–20607
(B): 09900–20701

Direct clutch piston stroke

0.54 to 0.74 mm (0.022 to 0.029 in.)
