Special Tool
Precautions: General safety (00)
| 09900–06107 |
 |
09900–20607 |
 |
| Snap ring pliers (opening type) | Dial gauge | ||
 |
|
||
| 09900–20701 |
 |
09912–34510 |
 |
| Magnetic stand | Case separator | ||
|
|
|
||
| 09913–50121 |
 |
09913–65135 |
 |
| Oil seal remover | Bearing puller | ||
|
|
|
||
| 09913–70123 |
 |

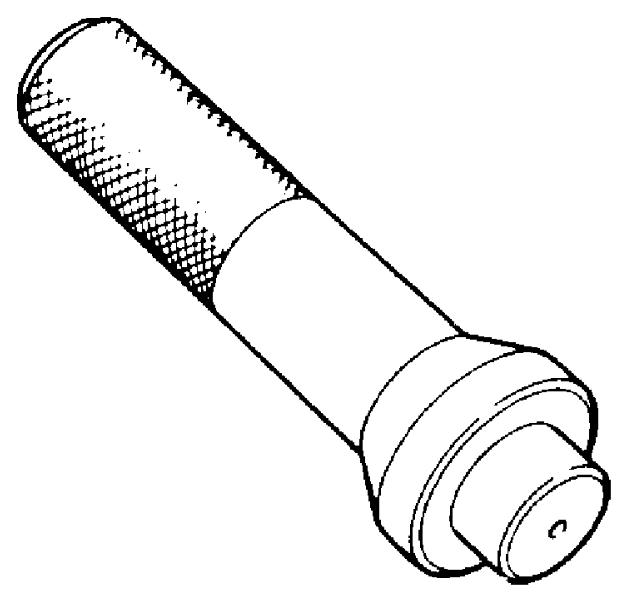

09913–75830 |
 |
| Bearing installer | Steering pinion bush installer | ||
|
|
|
||

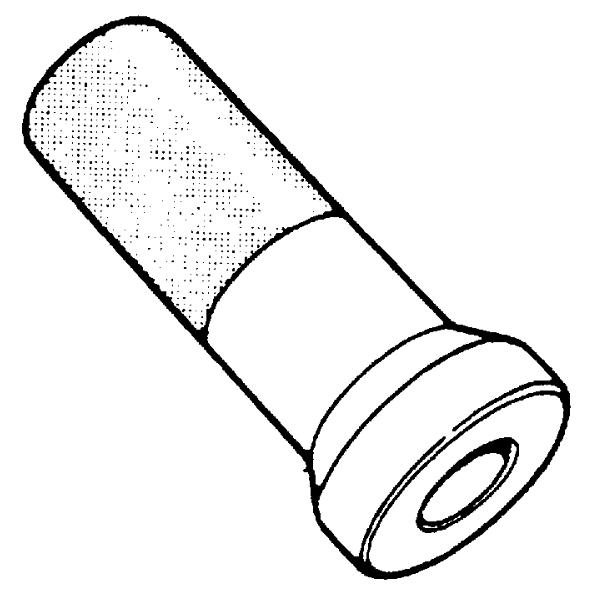

| 09913–76010 |
 |
09913–85210 |
 |
| Bearing installer | Bearing installer | ||
|
|
|
||
| 09913–85230 |
 |
09921–26010 |
 |
| Bearing remover tool | Bearing outer race remover collar | ||
|
|
|
||
| 09922–28030 |
 |
09922–85811 |
 |

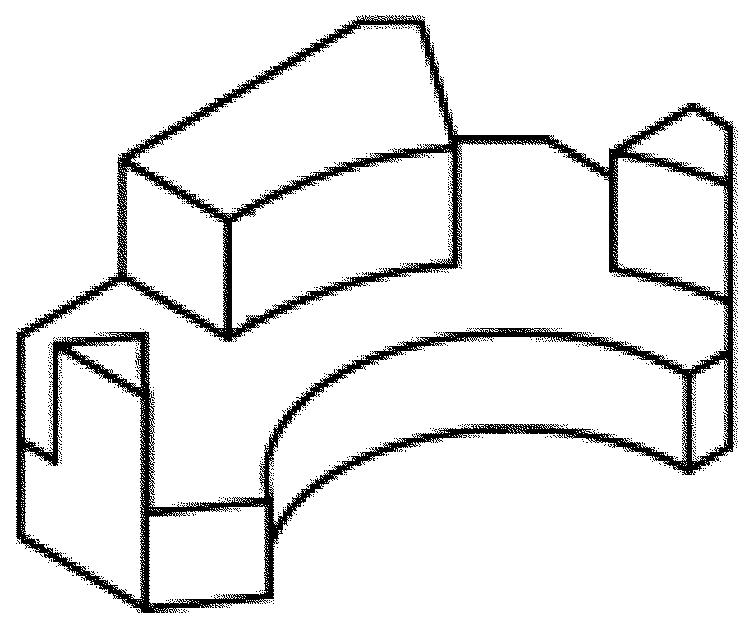

| Shift cable lever stopper | Spring pin remover (4.5 mm) | ||
|
|
|
||

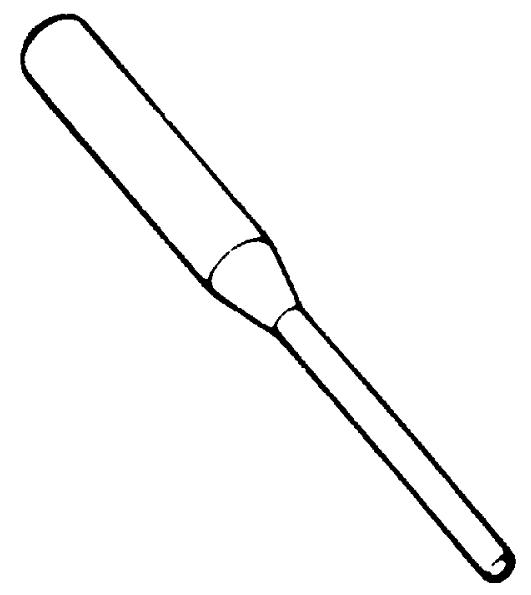

| 09922–89810 |
 |
09924–07720 |
 |
| Shifter lock pin remover (3.5 mm) | Synchronizer hub installer | ||
|
|
|
||
| 09924–74510 |
 |

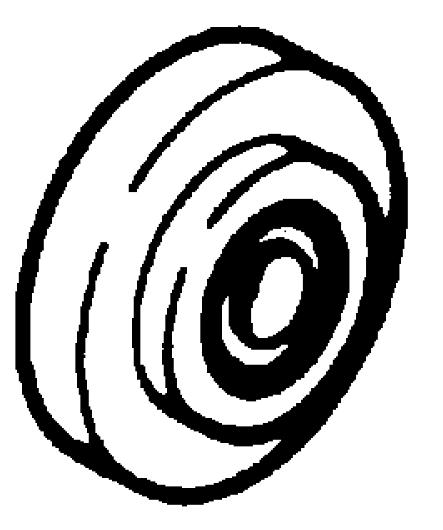

09925–14520 |
 |
| Bearing and oil seal handle | Bearing and oil seal installer (80 x 50 mm) | ||
|
|
|
||
| 09925–15410 |
 |

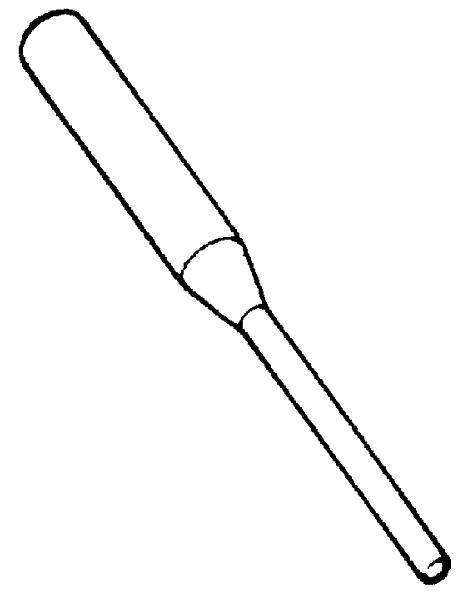

09925–78210 |
 |
| Oil seal installer | Spring pin remover (6 mm) | ||
|
|
|
||

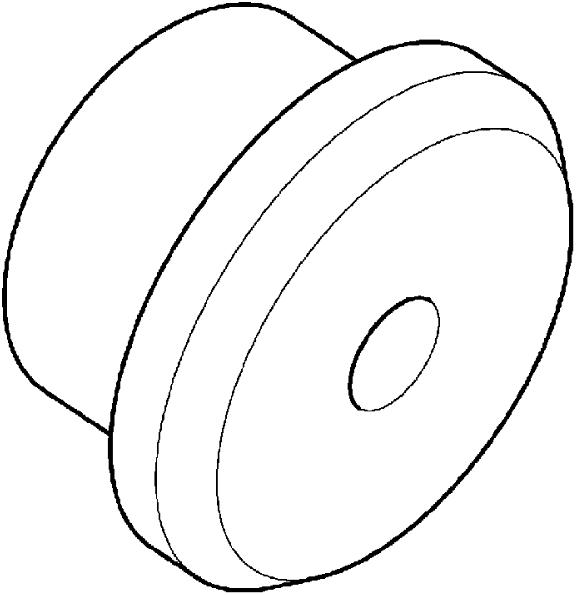

| 09926–27610 |
 |
09940–54910 |
 |
| Oil seal installer | Front fork oil seal install driver | ||
|
|
|
||
| 09941–74910 |
 |
09942–15511 |
 |
| Steering stem bearing remover and installer | Sliding hammer | ||
|
|
|
||
| 09944–66010 |
 |
09944–77030 |
 |
| Oil seal installer | Bearing / cover installer support | ||
|
|
|
||

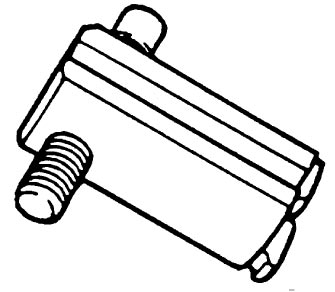

| 09944–96013 |
 |

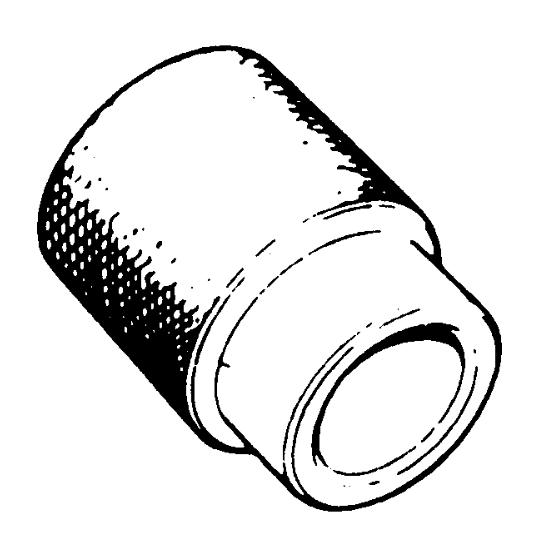

09945–55410 |
 |
| Bearing outer race remover | Bushing installer | ||
|
|
|
||
| 09952–06010 |
 |
||
| Dial gauge plate No.1 | |||
|
|
