Even Gear Clutch Control Actuator Removal and Installation
Precautions: Precautions for Diagnosing Trouble · Precautions for Disassembly and Reassembly · Precautions for Transmission / Transaxle · General safety (00)
Removal
1)Remove even gear clutch assembly.

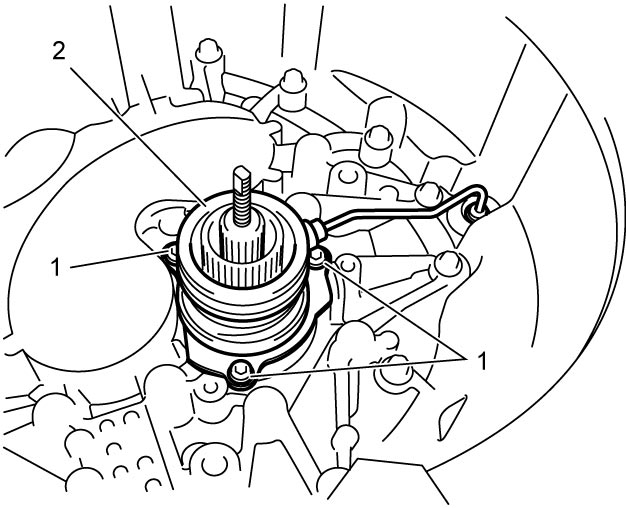

2)Remove even gear clutch control actuator bolts (1) and remove even gear clutch control actuator (2).

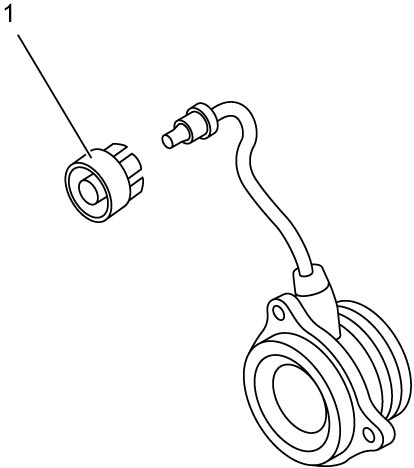

3)Remove clutch pipe joint sleeve (1), if necessary.
Installation
Reverse removal procedure noting the following point.

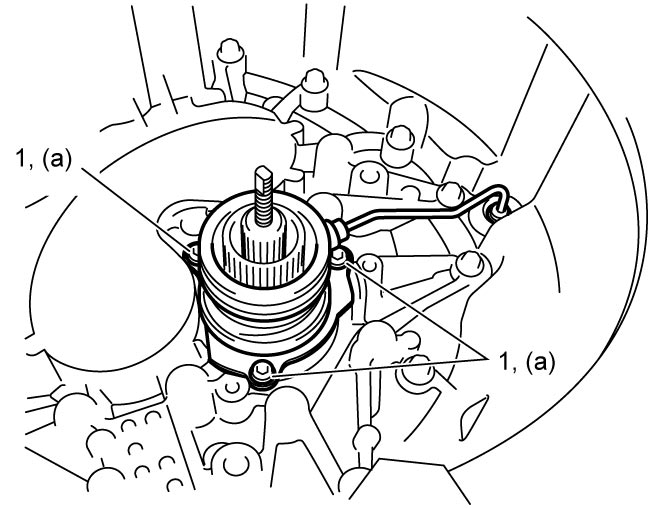

•Tighten even gear clutch control actuator bolts (1) to specified torque.
•After replacing even gear clutch control actuator, perform TCM and Clutch Initialization.
