Even Gear Clutch Assembly Removal and Installation
Precautions: Precautions for Diagnosing Trouble · Precautions for Disassembly and Reassembly · Precautions for Transmission / Transaxle · General safety (00)
Removal
1)Remove odd gear clutch assembly.

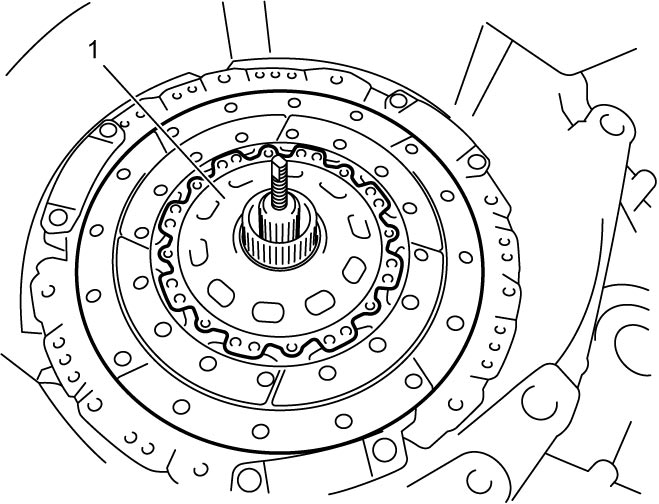

2)Remove even gear clutch disc (1).

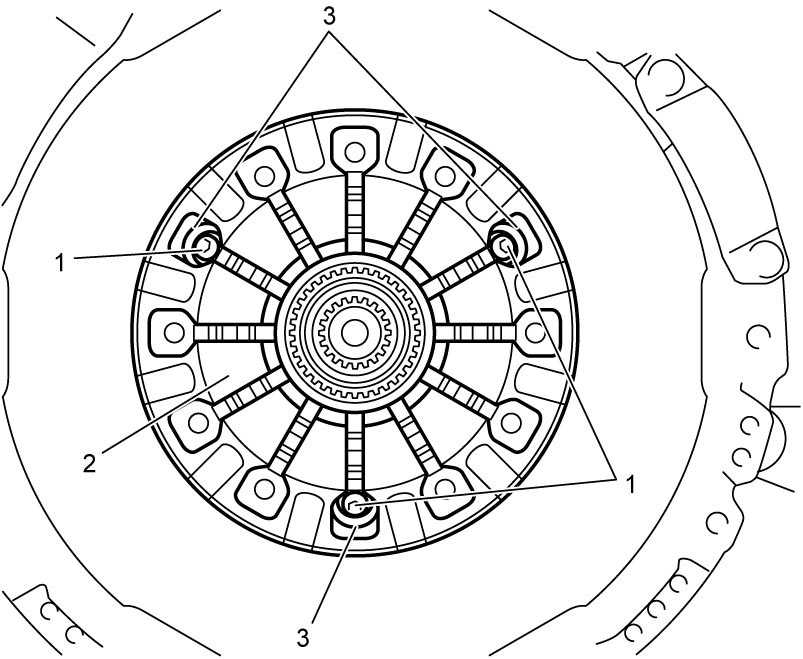

3)Remove even gear clutch assembly mounting bolts (1) evenly and gradually and remove even gear clutch assembly (2).
| 3. | Bolt hole |
Installation
Reverse removal procedure noting the following points.

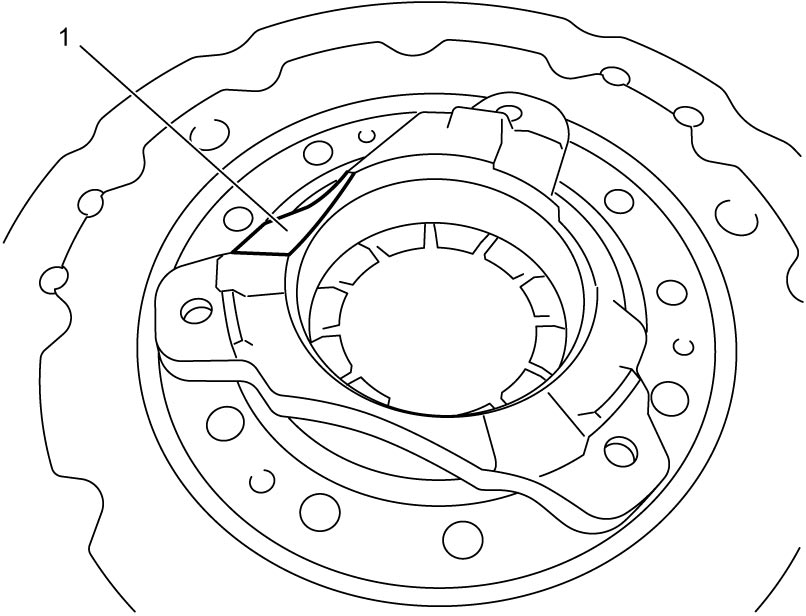

•Align a large dent portion (1) with even clutch control actuator pipe.

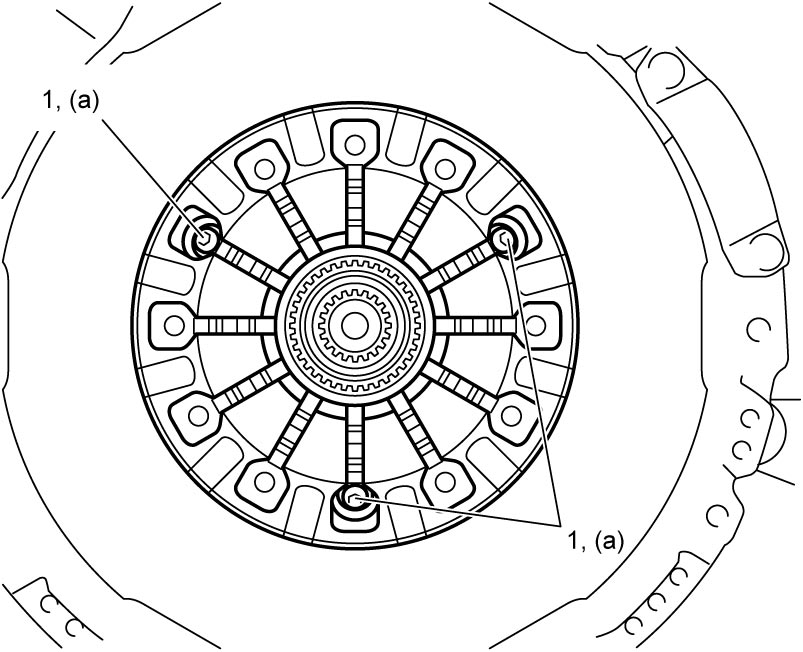

•Tighten even gear clutch assembly mounting bolts (1) evenly and gradually to specified torque.
•After replacing even gear clutch assembly, perform TCM and Clutch Initialization.
