DTC B1504-L
Precautions: Precautions for Diagnosing Trouble · General safety (00)
DTC Detecting Condition and Trouble Area
| DTC detecting condition | Trouble area |
|---|---|
|
B1504-L: Sunload Sensor and/or Its Circuit Malfunction Signal voltage of position sensor in sunload sensor is lower than specified value (0.1 V) for specified time continuously. |
•Sunload sensor circuit
•Sunload sensor •HVAC control module |

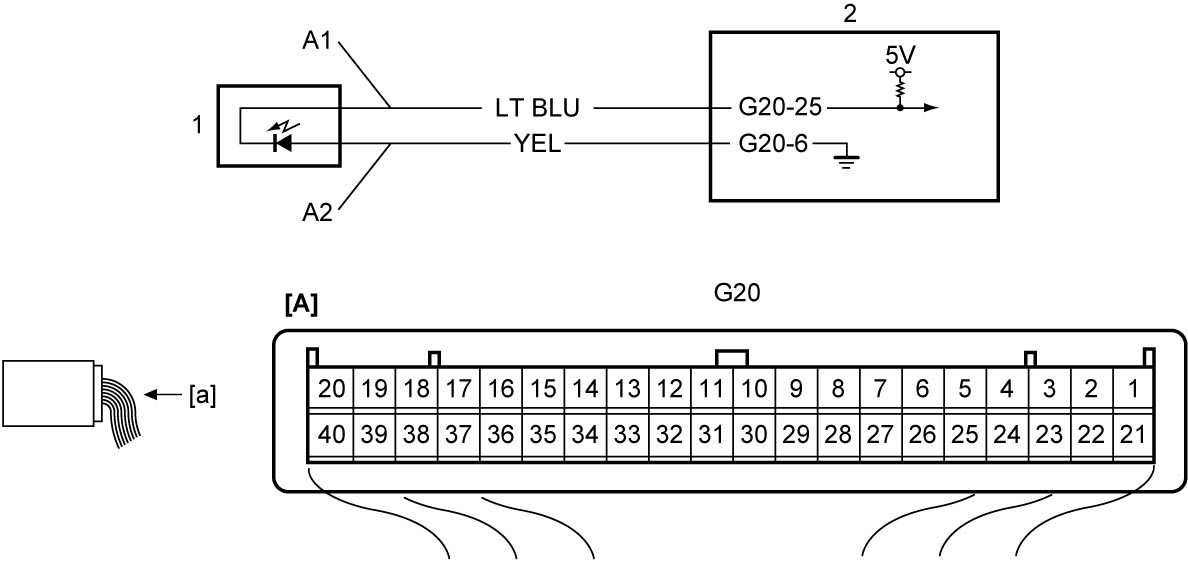

Circuit Diagram
| [A]: | HVAC control module connector (View: [a]) | A2. | Ground for sensors circuit | 2. | HVAC control module |
| A1. | Sunload sensor signal circuit | 1. | Sunload sensor |
DTC Confirmation Procedure
1)Start engine and operate A/C system.
DTC Troubleshooting
| Step | Action | Yes | No |
|---|---|---|---|
| 1 |
Scan tool parameter check
1)Check “Sun Load” using “Data list” mode on SUZUKI scan tool.
Is sun load value over 1275 W/m2?
|
Go to Step 2.
|
Intermittent trouble.
|
| 2 |
Sunload sensor signal circuit check
1)Disconnect sunload sensor connector.
2)Check “Sun Load” using “Data list” mode on SUZUKI scan tool.
Is sun load value over 1275 W/m2?
|
Go to Step 3.
|
Replace sunload sensor.
|
| 3 |
Sunload sensor signal circuit check
1)Disconnect “G20” connector.
2)Check that voltage between the “A1” circuit terminal and ground is 0 – 1 V with ignition “ON”.
Is voltage as specified?
|
Replace HVAC control module and recheck DTC.
|
Replace instrument panel harness.
|
