A/C System Major Components
Precautions: Precautions for Diagnosing Trouble · General safety (00)
M16A Model and D16AA Model
Refer to A/C System Major Components:Manual Type.

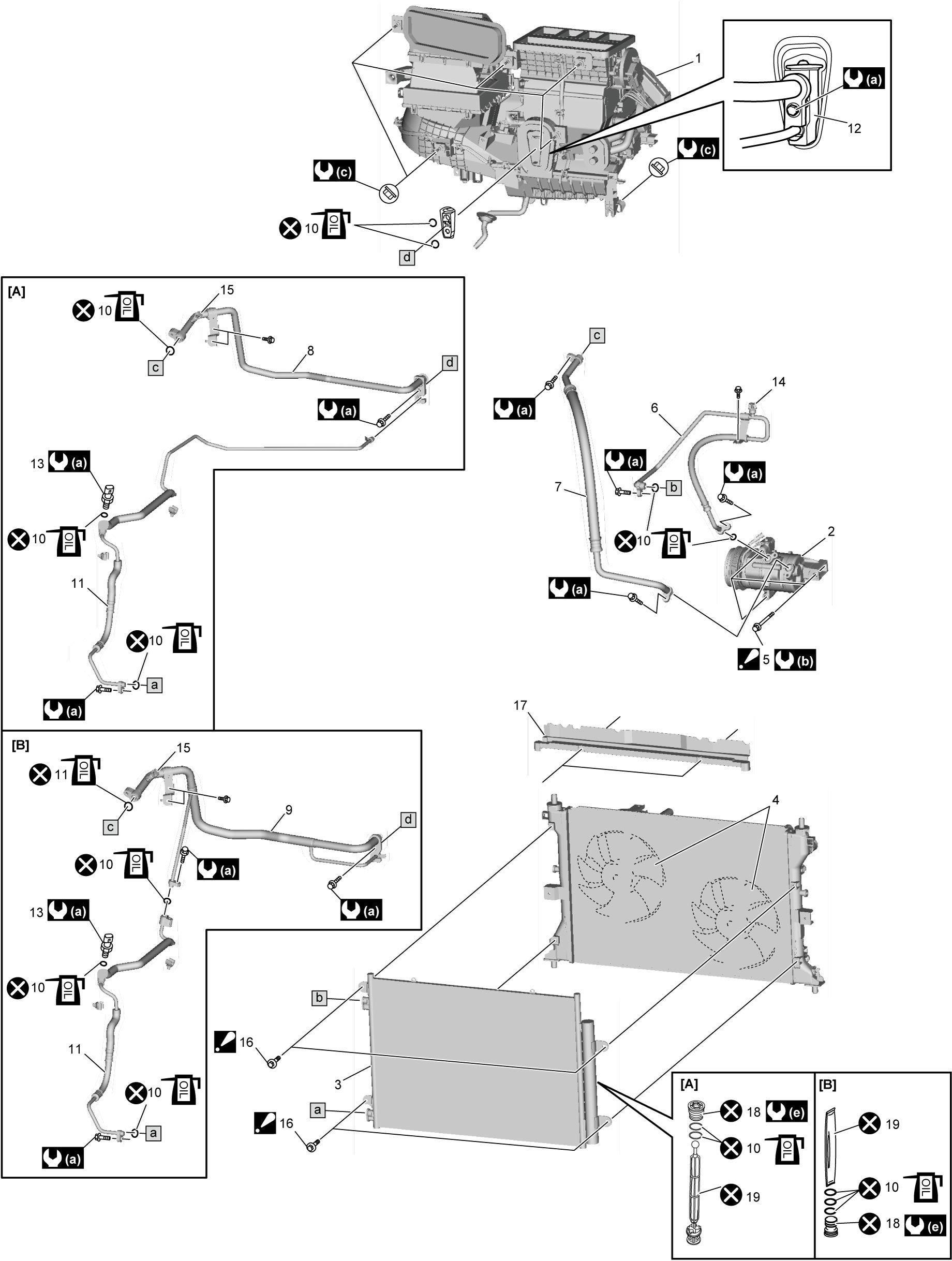

K14C Model
| [A]: | HFC-134a | 8. | Suction pipe | 17. | Radiator upper shroud |
| [B]: | HFO-1234yf | 9. | Inner heat exchanger pipe | 18. | Cap |
| 1. | HVAC unit |
 10: |
O-ring : Apply compressor oil. |
19. | Desiccant |
| 2. | Compressor | 11. | Liquid pipe |
 : |
11 N·m (1.1 kgf-m, 8.5 lbf-ft) |
| 3. | Condenser with receiver/dryer | 12. | Expansion valve |
 : |
25 N·m (2.5 kgf-m, 18.5 lbf-ft) |
| 4. | Radiator cooling fan | 13. | A/C refrigerant pressure sensor |
 : |
6.0 N·m (0.61 kgf-m, 4.5 lbf-ft) |
 5. |
Compressor mounting bolt : For tightening procedure of compressor mounting bolt, refer to Compressor Assembly Removal and Installation:Manual Type. |
14. | High pressure charging valve |
 : |
60 N·m (6.1 kgf-m, 44.5 lbf-ft) |
| 6. | Discharge hose | 15. | Low pressure charging valve |
 : |
18 N·m (1.8 kgf-m, 13.5 lbf-ft) |
| 7. | Suction hose |
16. |
Condenser bolt : For tightening procedure of condenser bolt, refer to Condenser Assembly Removal and Installation:Manual Type. |
 : |
Do not reuse. |
