DTC B1062-14
Precautions: Precautions for Air Bag System Service · Precautions for Handling and Storage of Air Bag System Components · Precautions for Disposal of Air Bag and Seat Belt Pretensioner · Precautions for Restraint · General safety (00)
DTC Detecting Condition and Trouble Area
| DTC detecting condition | Trouble area |
|---|---|
|
B1062-14: Passenger Air Bag (1st stage) Circuit Shorted to Ground Passenger air bag (inflator) module circuit has been shorted to ground. |
•Passenger air bag (inflator) module circuit
•SDM |
Circuit Diagram
| [A]: | “G259” connector (View: [a]) | A2: | Passenger air bag (inflator) module deployment signal ground circuit | 2. | SDM |
| [B]: | “L378” connector (View: [a]) | A3: | Passenger air bag (inflator) module deployment signal output circuit | 3. | Shorting bar |
| [C]: | “L04” connector (View: [a]) | A4: | Passenger air bag (inflator) module deployment signal ground circuit | 4. | Floor harness |
| A1: | Passenger air bag (inflator) module deployment signal output circuit | 1. | Passenger air bag (inflator) module | 5. | Instrument panel harness |
DTC Troubleshooting
| Step | Action | Yes | No |
|---|---|---|---|
| 1 |
Was “Air Bag Diagnostic System Check” performed?
|
Go to Step 2.
|
|
| 2 |
Passenger air bag (inflator) module circuit check
1)Check that ignition is “OFF”.
2)Remove glove box.
3)Disconnect “G259” connector referring to Step 3) of “Removal” under Passenger Air Bag (Inflator) Module Removal and Installation.
4)Disconnect “L04” connector.

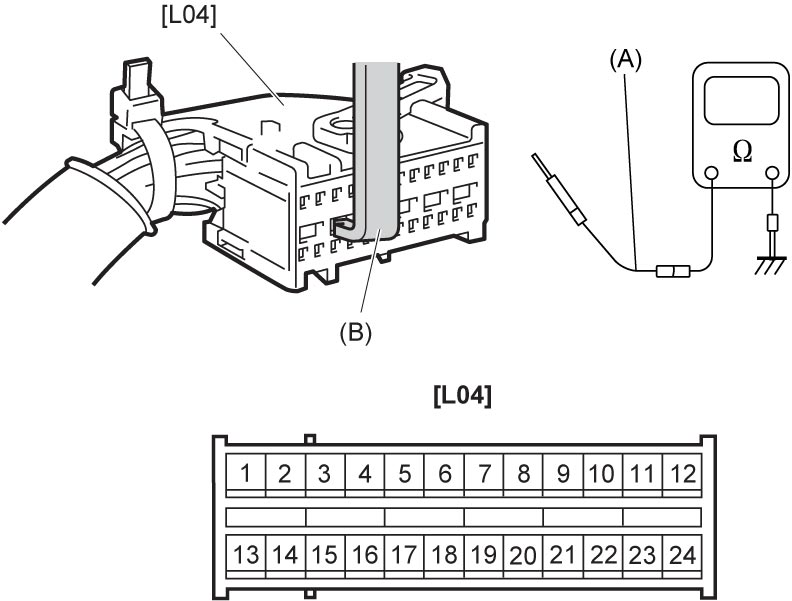

5)Release shorting bar in SDM connector inserting release tool (B).
6)Check the following point.
•Resistance between each of “A3” and “A4” circuits and ground: infinity
 Is check result OK?
|
Replace SDM and recheck DTC.
|
Go to Step 3.
|
| 3 |
Floor harness circuit check
1)Disconnect “L378” connector.
2)Release shorting bar in SDM connector inserting release tool (B).
3)Check the following point.
•Resistance between each of “A3” and “A4” circuits and ground: infinity
Is check result OK?
|
Replace instrument panel harness.
|
Replace floor harness.
|
NOTE:
Upon completion of inspection and repair work, perform the following items.
•Reconnect all air bag system components and check that all components are properly mounted.
•Clear DTCs, referring to DTC Clearance if any DTC is detected.
•Repeat Air Bag Diagnostic System Check to check that the trouble has been solved.
•Clear DTCs, referring to DTC Clearance if any DTC is detected.
•Repeat Air Bag Diagnostic System Check to check that the trouble has been solved.
