Front Window Regulator Assembly Removal and Installation

Precautions: Precautions for Working on Glass · Precautions for Working on Power Window · Precautions for Body, Cab and Accessories · General safety (00)

Reference: Front Door Window Glass Components
Removal
1)Remove front door glass. icon
2)Disconnect power window motor connector (3).

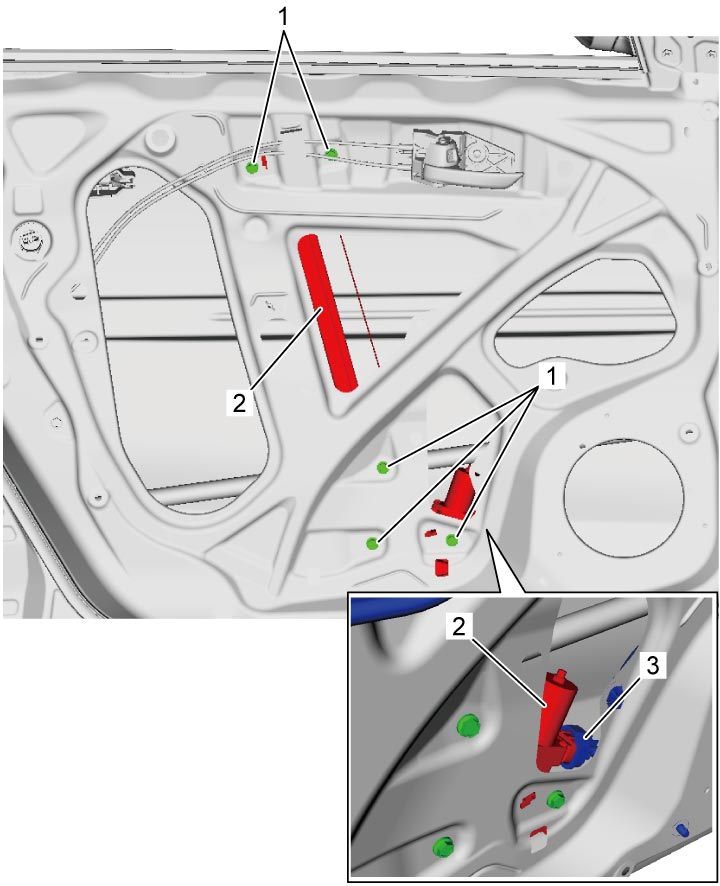

3)Remove front window regulator bolts (1) and remove front window regulator assembly (2).
Installation
Reference: Front Window Regulator Assembly Inspection
Reverse removal procedure noting the following points.
•Apply grease to sliding parts of front window regulator assembly.
: Grease 99000–25011 (SUZUKI Super Grease A)

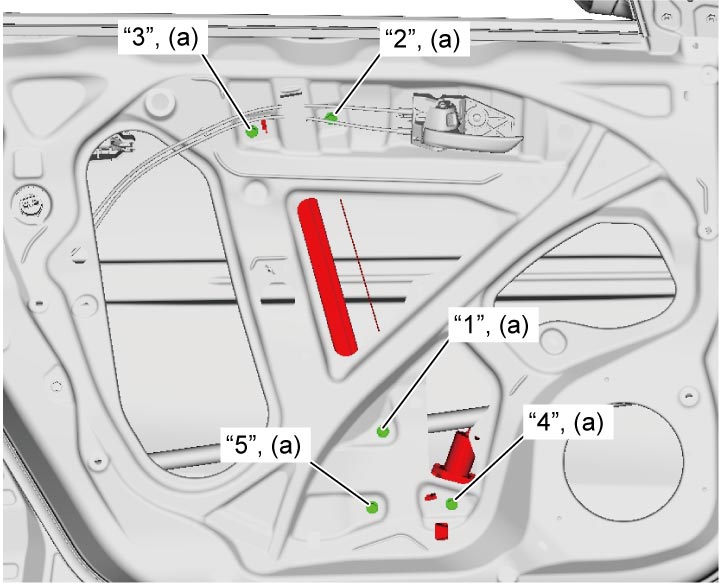

•Tighten front window regulator bolts in numerical order (“1” – “5”) to specified torque.
Tightening torque
Front window regulator bolt* (a): 8.4 N·m (0.86 kgf-m, 6.5 lbf-ft)
