Keyless Entry System Component Location
Precautions: Precautions for Diagnosing Trouble · Precautions for Replacing Ignition Key (Ignition Switch Model) · Precautions for Transmitter Disposal (Ignition Switch Model) · Precautions for Replacing Keyless Entry Control Module (Ignition Switch Model) · Precautions for Body, Cab and Accessories · General safety (00)
NOTE:

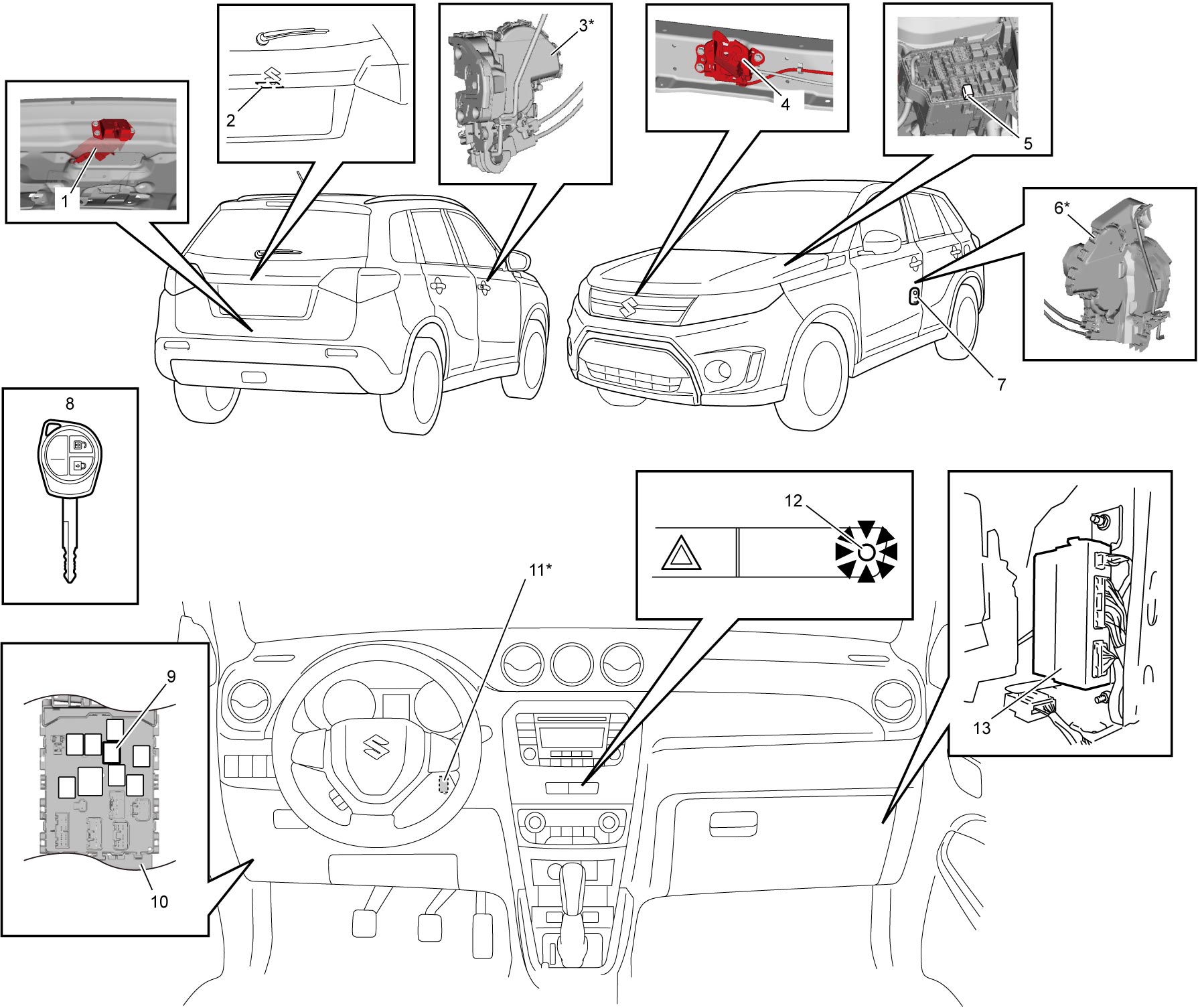

The figure shows LHD. For RHD, parts with (*) are installed at the opposite side.
| 1. | Rear end door opener actuator (included in rear end door switch) | 6. | Driver door lock actuator (included in door key cylinder switch) | 11. | Key reminder switch (included in ignition switch) |
| 2. | Rear end door opener switch | 7. | Door switch | 12. | Theft deterrent light |
| 3. | Passenger door lock actuator | 8. | Transmitter | 13. | Keyless entry control module |
| 4. | Hood latch switch (if equipped) | 9. | Horn relay | ||
| 5. | Starting motor control relay | 10. | J/B |
