Door Lock Switch and Actuator On-Vehicle Inspection
Precautions: Precautions for Diagnosing Trouble · Precautions for Replacing Ignition Key (Ignition Switch Model) · Precautions for Transmitter Disposal (Ignition Switch Model) · Precautions for Replacing Keyless Entry Control Module (Ignition Switch Model) · Precautions for Body, Cab and Accessories · General safety (00)
1)Remove door trim.
•Front:
•Rear:
•Rear:
2)Disconnect door lock connector from door lock assembly.
3)Check door lock switch for continuity between its terminals. Replace door lock assembly if defective.
4)Check door lock actuator by checking operation of door lock lever when battery voltage is applied to the following terminals of door lock assembly as shown in tables. Replace door lock assembly if defective.

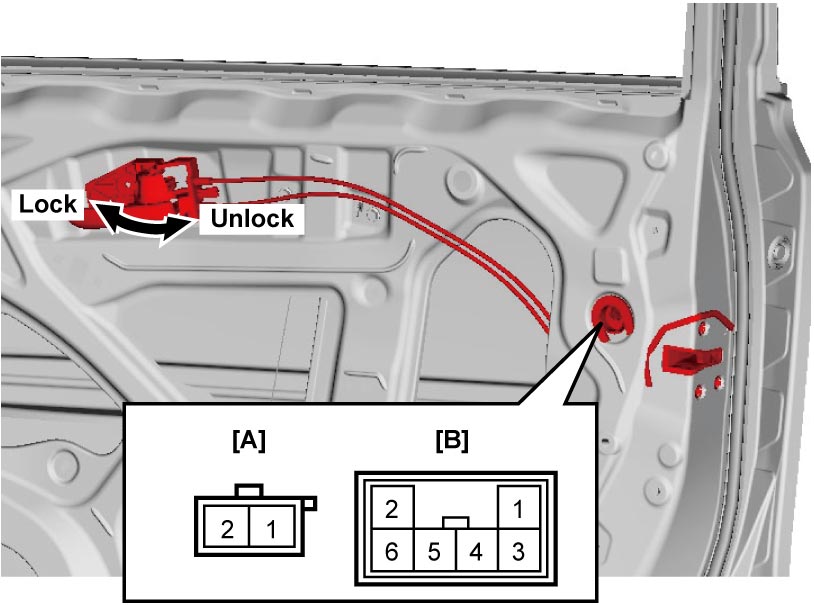

Driver Door Lock
| [A]: | Non-deadlock model | [B]: | Deadlock model |

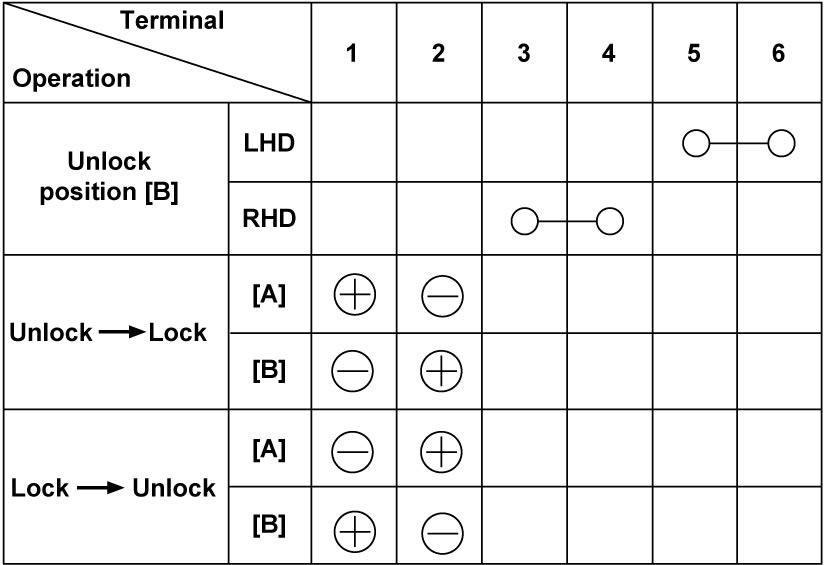

Door lock switch continuity and actuator operation (Non-deadlock model)
| *: | Keyless push start model |

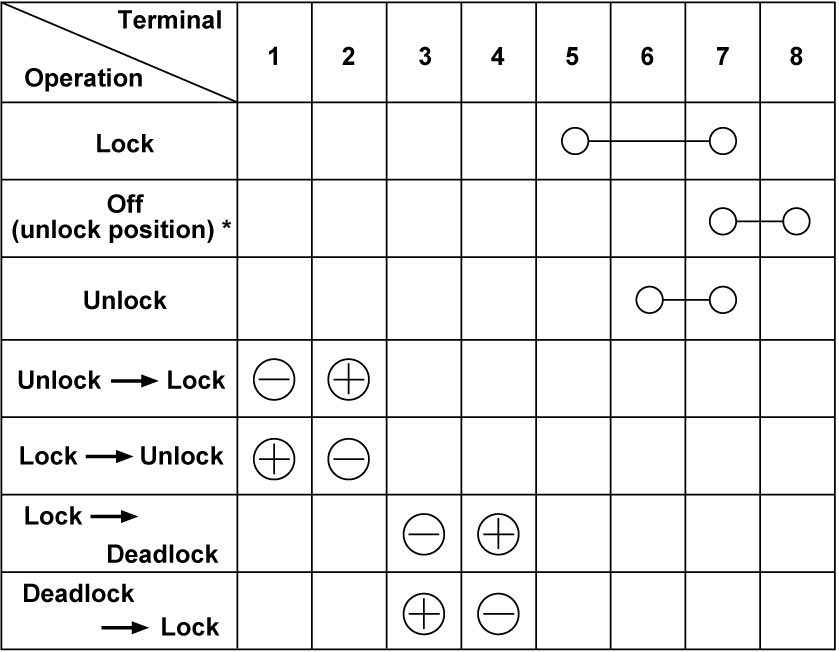

Door lock switch continuity and actuator operation (Deadlock model)
| *: | Keyless push start model |

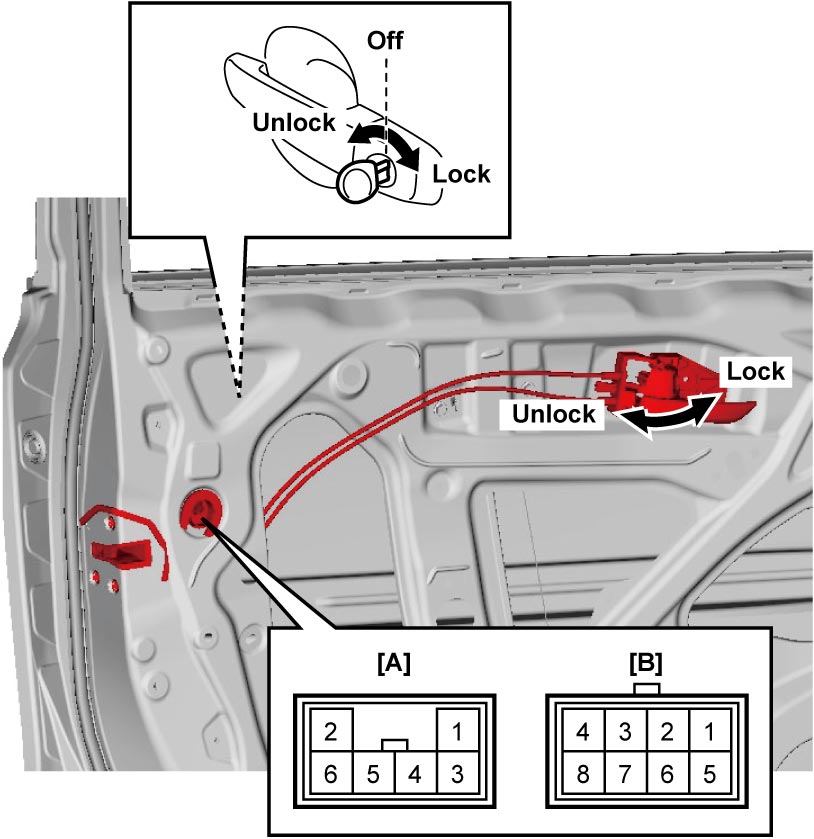

Passenger Door Lock
| [A]: | Ignition switch model without deadlock | [B]: | Keyless push start model / Deadlock model |

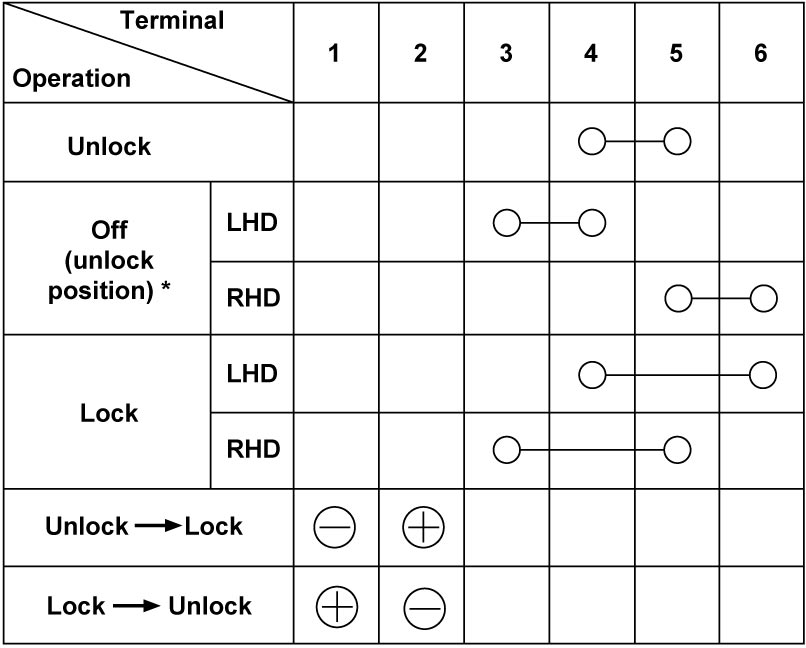

Door lock switch continuity and actuator operation (Non-deadlock model)
| [A]: | Ignition switch model | [B]: | Keyless push start model |

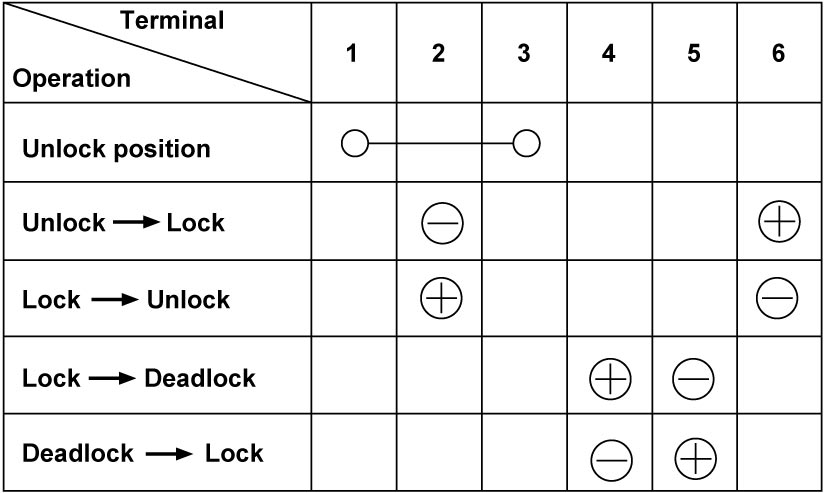

Door lock switch continuity and actuator operation (Deadlock model)

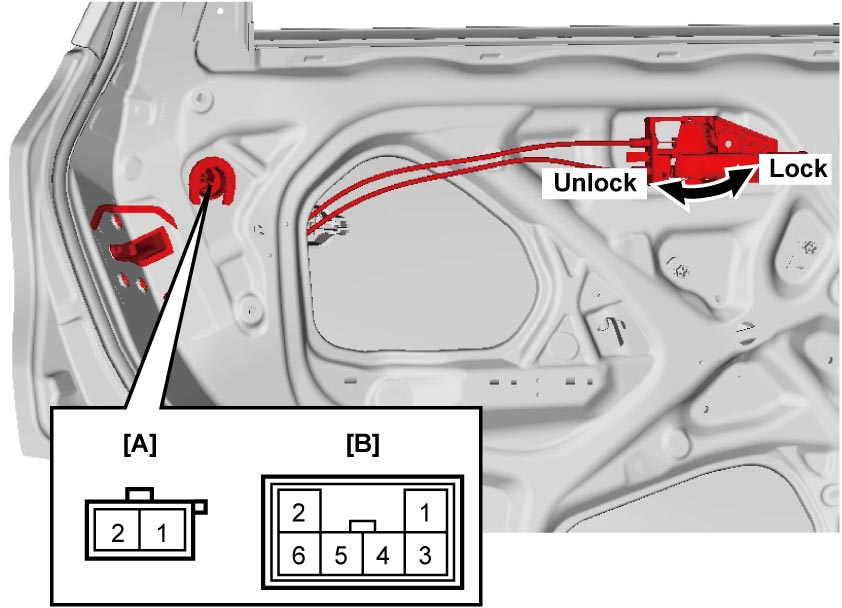

Rear Door Lock
| [A]: | Non-deadlock model | [B]: | Deadlock model |

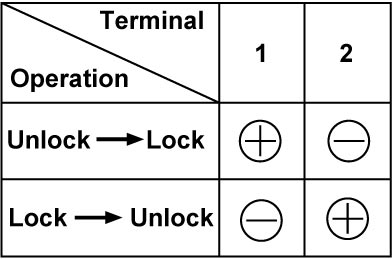

Door lock actuator operation (Non-deadlock model)

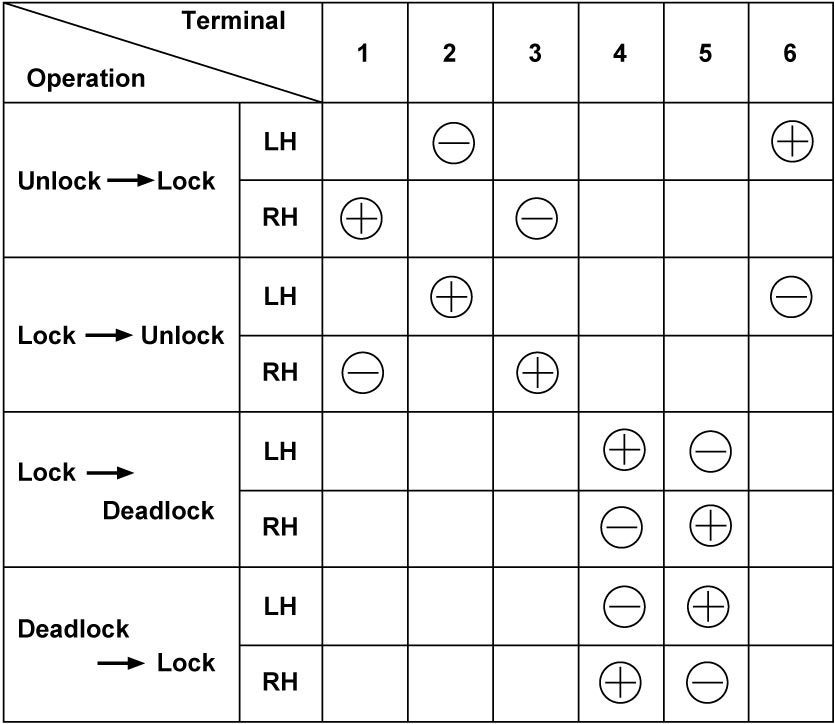

Door lock actuator operation (Deadlock model)
