Rear End Door Opener Switch Removal and Installation

Precautions: Precautions for Diagnosing Trouble · Precautions for Replacing Ignition Key (Ignition Switch Model) · Precautions for Transmitter Disposal (Ignition Switch Model) · Precautions for Replacing Keyless Entry Control Module (Ignition Switch Model) · Precautions for Body, Cab and Accessories · General safety (00)

Reference: Rear End Door Opener Switch On-Vehicle Inspection

Removal

1)Remove rear end door trim.

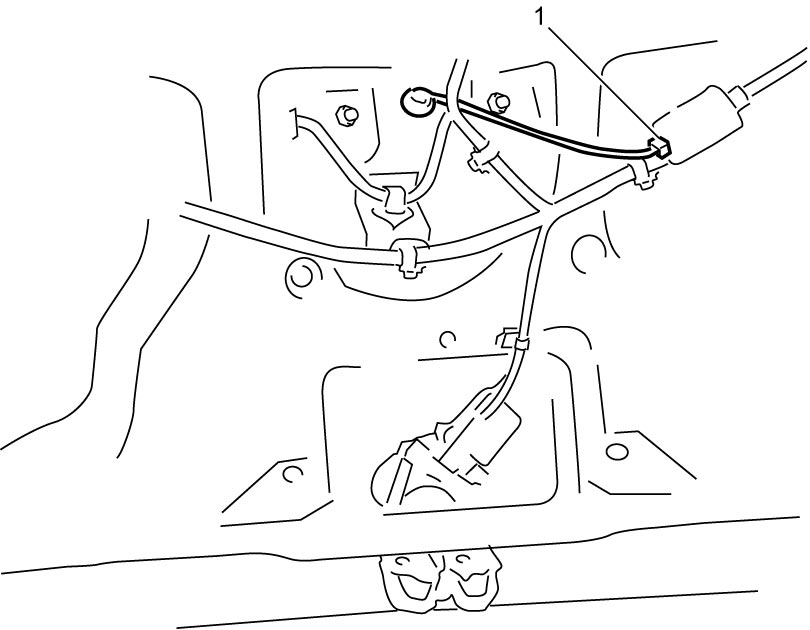

2)Disconnect rear end door opener switch connector (1).

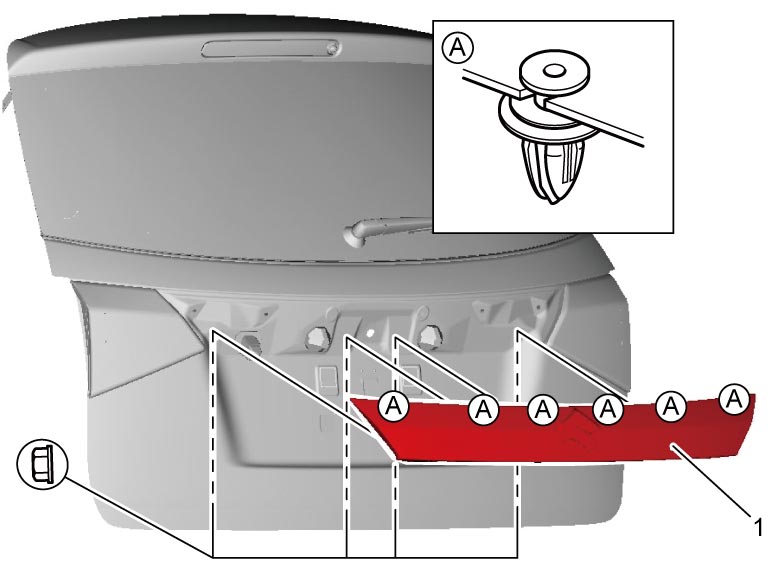

3)Remove rear end door license garnish (1).

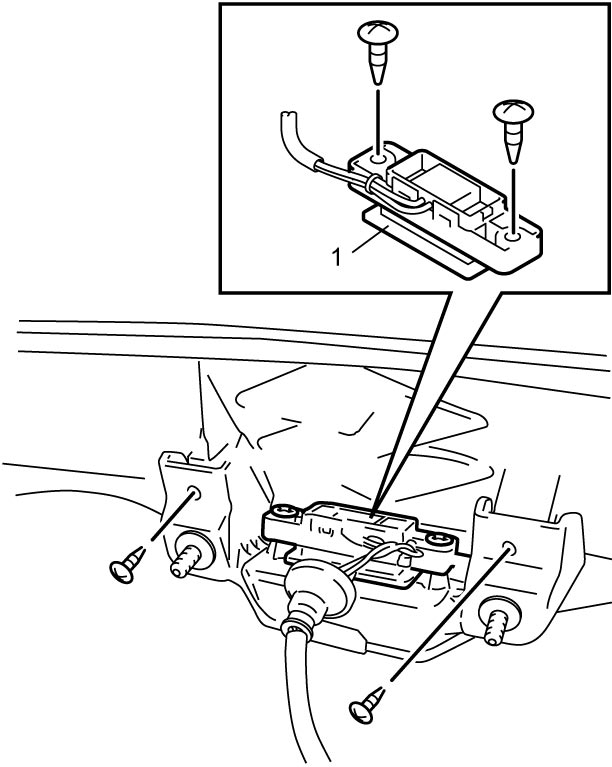

4)Remove screws, and then remove rear end door opener switch (1).

Installation

Reverse removal procedure noting the following point.

•Tighten rear end door license garnish nuts to specified torque.

Tightening torque

Rear end door license garnish nut: 5.5 N·m (0.56 kgf-m, 4.0 lbf-ft)
