Head Lining Removal and Installation
Precautions: Precautions for Body, Cab and Accessories · General safety (00)
Removal
1)Disable air bag system (if equipped).
2)Remove sun visors (1).
3)Remove the following lights.
•Spot light (if equipped) (3):
•Dome light (if equipped) (2):
•Dome light (if equipped) (2):
4)Remove the following trims.
•Front pillar trims
•Center pillar upper trims
•Rear quarter inner upper trims
•Center pillar upper trims
•Rear quarter inner upper trims
5)Remove assist grips (4).
6)Remove screws and then remove rear center seat belt holder (5).
7)Remove clips and remove head lining (6).

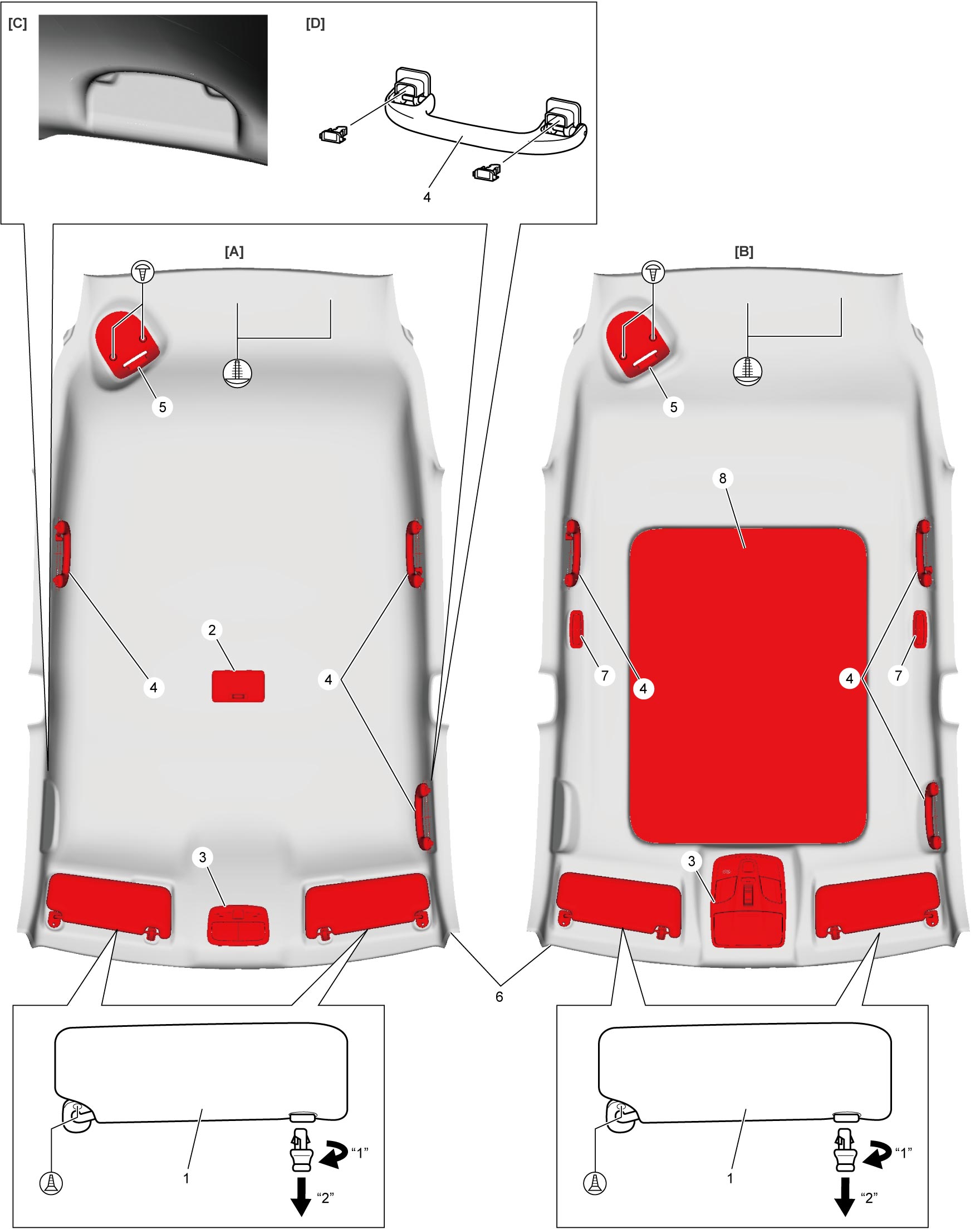

| [A]: | Without sun roof | [C]: | Without assist grip | 8. | Sun roof assembly |
| [B]: | With sun roof | [D]: | With assist grip |
Installation
Reverse removal procedure noting the following point.
•Enable air bag system (if equipped).
