Floor Carpet Removal and Installation
Precautions: Precautions for Body, Cab and Accessories · General safety (00)
Removal
1)Remove seats.
•Front seat:
•Rear seat:
•Rear seat:
2)Remove the following scuffs and trims.
•Side sill inner front scuffs
•Side sill inner rear scuffs
•Dash side trims
•Center pillar lower trims
•Side sill inner rear scuffs
•Dash side trims
•Center pillar lower trims
3)Remove center console front box / rear box.
4)Remove steering joint cover.

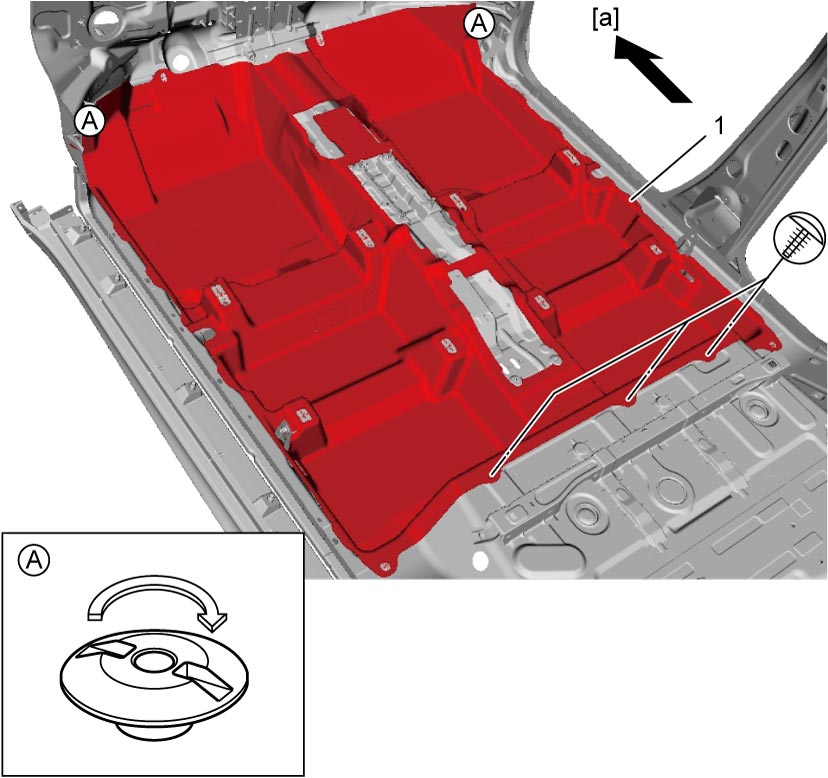

5)Remove 5 clips and then remove floor carpet (1).
| [a]: | Vehicle forward |
Installation
Reverse removal procedure noting the following point.
•Tighten mounting bolts of each seat to specified torque.
—Front seat:
—Rear seat:
—Rear seat:
