Inspection of Sun Roof Motor (For Sun Roof Glass) and Its Circuits
Precautions: Precautions for Sun Roof · Precautions for Disassembly and Reassembly · Precautions for Body, Cab and Accessories · General safety (00)
Voltage Check
1)Remove spot light with connector still connected.
2)Check voltage using circuit tester.

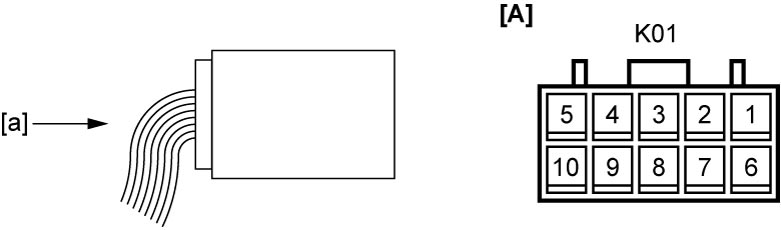

| [A]: | Sun roof motor connector (View: [a]) |
“K01” connector
| Terminal No. | Wire color | Circuit | Normal voltage | Condition |
|---|---|---|---|---|
| K01-1 | GRY | Sun roof switch (OPEN) | Approx. 0 V | Ignition “ON” “OPEN” (side) of sun roof switch: Pressed |
| Approx. 12 V | Ignition “ON” “OPEN” (side) of sun roof switch: Not pressed |
|||
| K01-2 | BLU | Sun roof switch (PUSH TILT) | Approx. 0 V | Ignition “ON” “PUSH TILT” (side) of sun roof switch: Pressed |
| Approx. 12 V | Ignition “ON” “PUSH TILT” (side) of sun roof switch: Not pressed |
|||
| K01-3 | YEL | IG2 power source | Approx. 0 V | Ignition “OFF” or “ACC” |
| Approx. 12 V | Ignition “ON” | |||
| K01-4 | LT GRN | Sun roof switch (Full open / Full close) | Approx. 0 V | Ignition “ON” “Full open / Full close” (side) of sun roof switch: Not pressed |
| Approx. 12 V | Ignition “ON” “Full open / Full close” (side) of sun roof switch: Not pressed |
|||
| K01-5 | BLK | Ground for sun roof motor (for sun roof glass) | Approx. 0 V | Ignition “OFF”, “ACC” or “ON” |
| K01-6 | BRN | Sun roof switch (CLOSE) | Approx. 0 V | Ignition “ON” “CLOSE” (side) of sun roof switch: Pressed |
| Approx. 12 V | Ignition “ON” “CLOSE” (side) of sun roof switch: Not pressed |
|||
| K01-9 | GRN | Sun roof motor (for sunshade) signal | Approx. 9 V | Ignition “ON” “OPEN / CLOSE” or “PUSH TILT” (side) of sun roof switch: Pressed |
| Approx. 10 V | Ignition “ON” “OPEN / CLOSE” or “PUSH TILT” (side) of sun roof switch: Not pressed |
|||
| K01-10 | WHT | Power source | Approx. 12 V | Ignition “OFF”, “ACC” or “ON” |
