Inspection of Sun Roof Motor (For Sunshade) and Its Circuits

Precautions: Precautions for Sun Roof · Precautions for Disassembly and Reassembly · Precautions for Body, Cab and Accessories · General safety (00)

Voltage Check

1)Remove spot light (with connector still connected).

2)Check voltage using circuit tester.

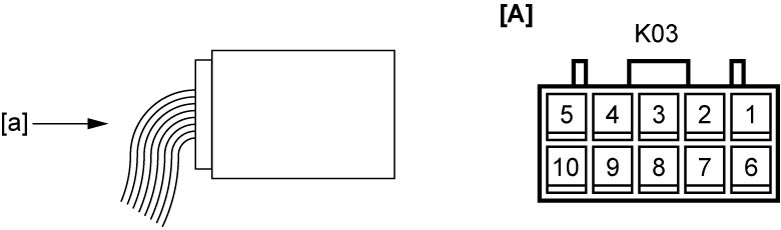

[A]:	Sun roof motor connector (View: [a])

“K03” connector

Terminal No.	Wire color	Circuit	Normal voltage	Condition
K03-3	YEL	IG2 power source	Approx. 0 V	Ignition “OFF” or “ACC
			Approx. 12 V	Ignition “ON””
K03-5	BLK	Ground for sun roof motor (for sunshade)	Approx. 0 V	Ignition “OFF”, “ACC” or “ON”
K03-9	GRN	Sun roof motor (for sun roof glass) signal	Approx. 9 V	Ignition “ON” “OPEN / CLOSE” or “PUSH TILT” (side) of sun roof switch: Pressed
			Approx. 10 V	Ignition “ON” “OPEN / CLOSE” or “PUSH TILT” (side) of sun roof switch: Not pressed
K03-10	WHT	Power source	Approx. 12 V	Ignition “OFF”, “ACC” or “ON”
