Engine Compartment Dimensions with Mechanical Parts
Precautions: Precautions for Body Structure · Precautions for Body, Cab and Accessories · General safety (00)
NOTE:

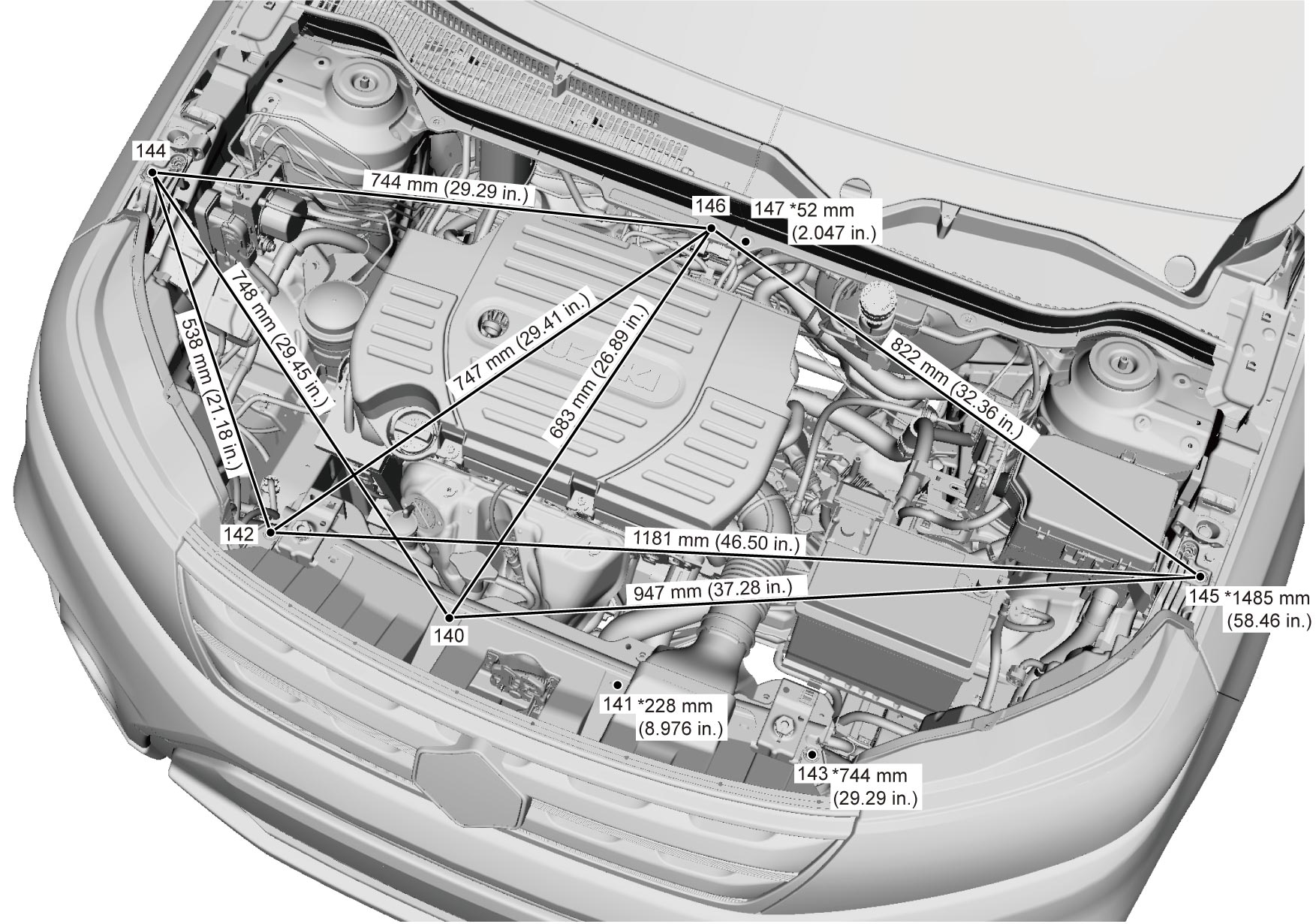

•Values in this dimensional drawing are provided for reference only. Refer to Front Body Dimensions when correct values are needed.
•Dimension with asterisk (*) shows distance to the same point on opposite side.
•In principle, body dimensions in the figure below are symmetrical. Adopt the dimension for the opposite side if the dimension is not mentioned in the figure below.
•The number with “ø” is circle diameter and measurement unit is “mm”.
•Dimension with asterisk (*) shows distance to the same point on opposite side.
•In principle, body dimensions in the figure below are symmetrical. Adopt the dimension for the opposite side if the dimension is not mentioned in the figure below.
•The number with “ø” is circle diameter and measurement unit is “mm”.
| Point | Position | ||
|---|---|---|---|
| 140 | Radiator grille cover installation clip | R | Clip head center |
| 141 | ↑ | L | ↑ |
| 142 | Headlight installation bolt | R | M6 bolt head center |
| 143 | ↑ | L | ↑ |
| 144 | Front fender installation bolt | R | ↑ |
| 145 | ↑ | L | ↑ |
| 146 | Cowl top garnish installation clip | R | Clip head center |
| 147 | ↑ | L | ↑ |
