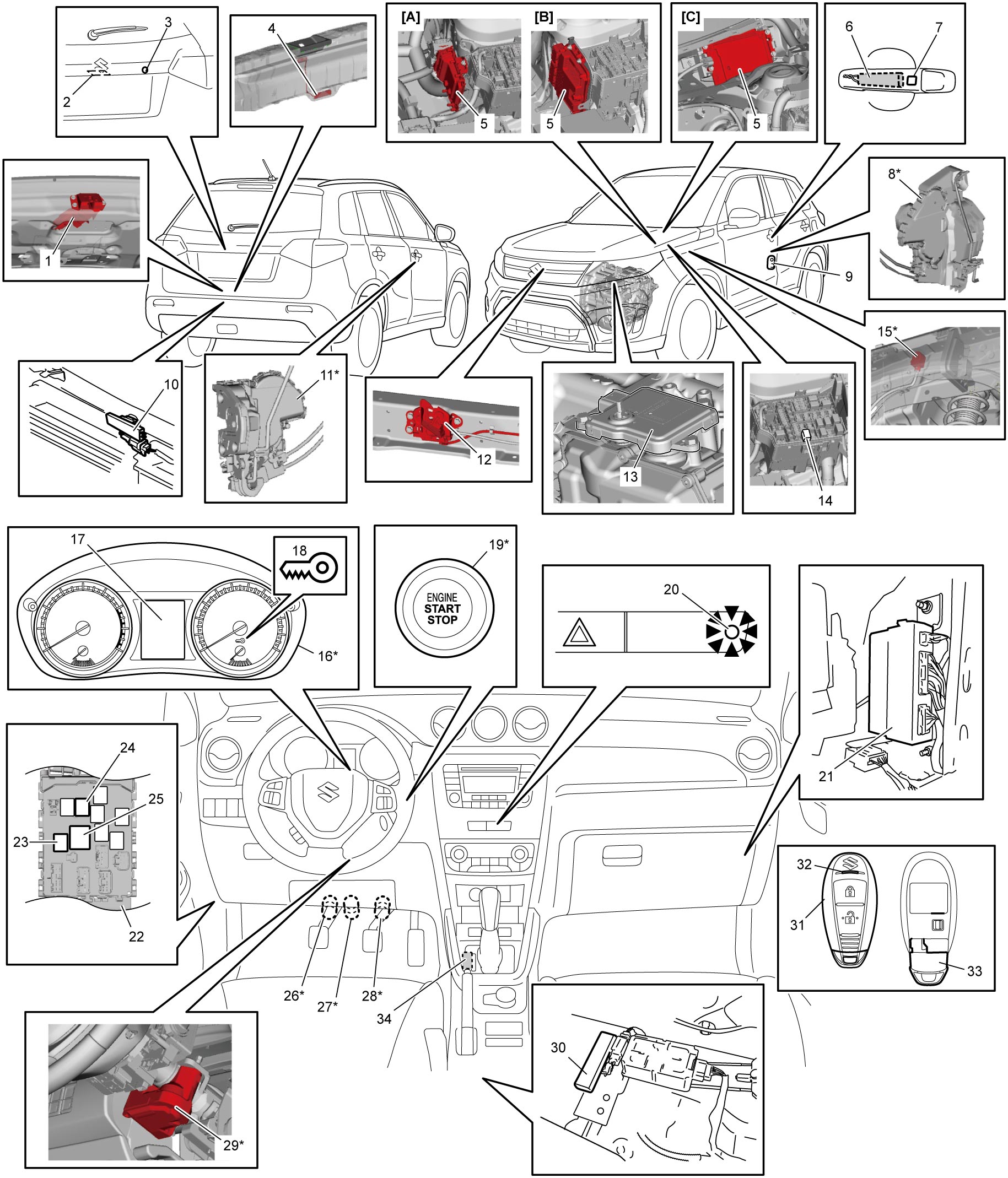

Keyless Start System Component Location
Precautions: Precautions for Diagnosing Trouble · Precautions for Replacing Remote Controller · Precautions for Remote Controller Disposal · Precautions for Replacing Keyless Start Control Module · Precautions for Control Systems · General safety (00)
NOTE:
The figure shows LHD. For RHD, parts with (*) are installed at the opposite side.
| [A]: | M16A model | 11. | Passenger door lock actuator (included in door lock switch) | 24. | ACC relay |
| [B]: | K14C model | 12. | Hood latch switch (if equipped) | 25. | IG2 relay |
| [C]: | D16AA model | 13. | TCM (including transmission range sensor) (A/T model) | 26. | CPP No.2 switch (M/T model) |
| 1. | Rear end door opener actuator (included in rear end door switch) | 14. | Starting motor control relay | 27. | CPP No.1 switch (M/T model) |
| 2. | Rear end door opener switch | 15. | Outside warning buzzer | 28. | Brake light switch |
| 3. | Rear end door request switch | 16. | Combination meter | 29. | Steering lock unit |
| 4. | Rear inside antenna | 17. | Information display | 30. | Mid inside antenna |
| 5. | ECM | 18. | Immobilizer indicator light | 31. | Remote controller |
| 6. | Driver side outside antenna / Passenger side outside antenna | 19. | Engine switch | 32. | Operation indicator light |
| 7. | Door request switch | 20. | Theft deterrent light | 33. | Emergency key |
| 8. | Driver door lock actuator (included in door key cylinder switch and door lock switch) | 21. | Keyless start control module | 34. | P position switch (A/T model / twin clutch system model) |
| 9. | Door switch | 22. | J/B | ||
| 10. | Rear outside antenna | 23. | IG1 relay |
