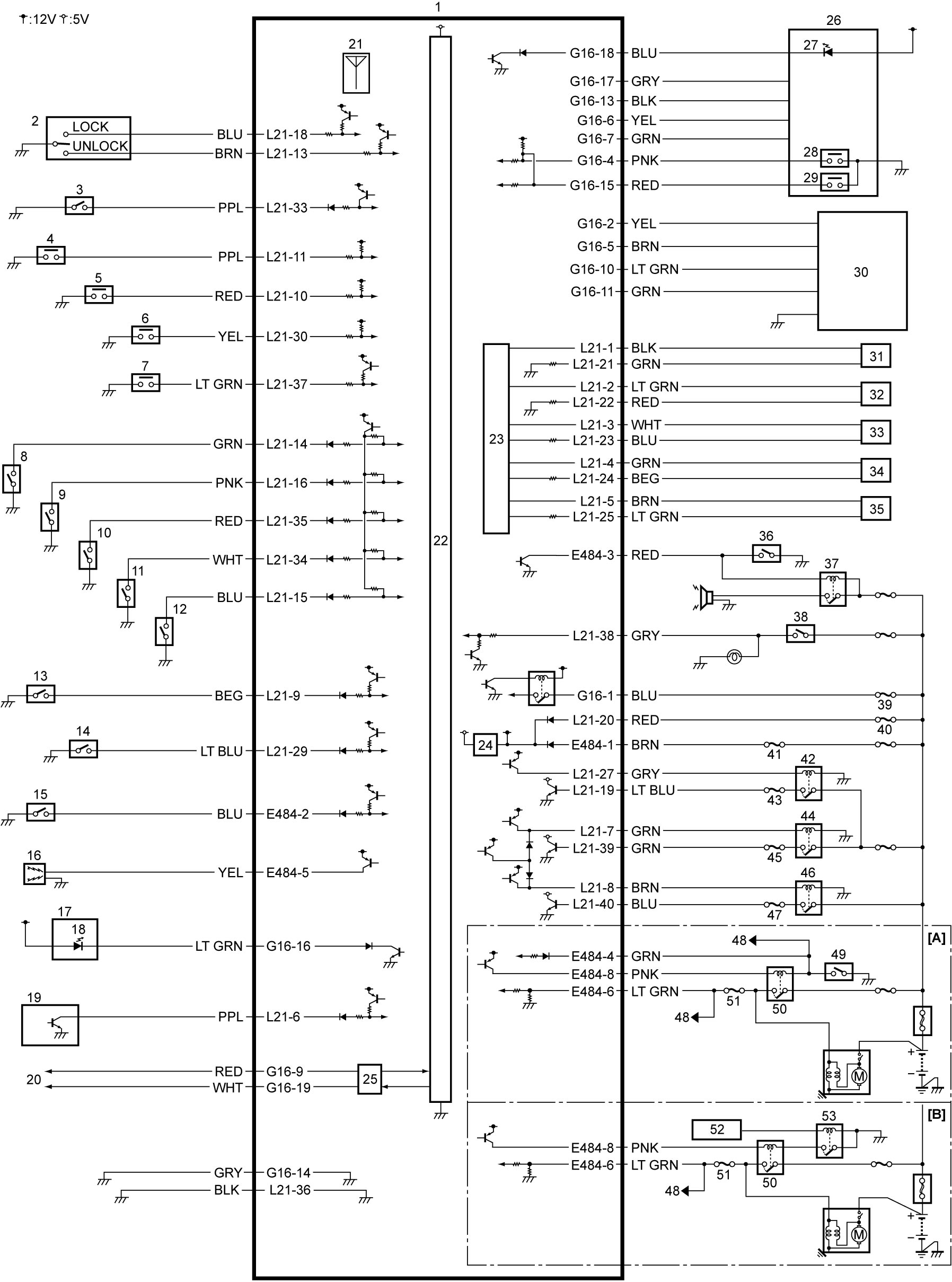

Keyless Start System Electric Circuit Diagram
Precautions: Precautions for Diagnosing Trouble · Precautions for Replacing Remote Controller · Precautions for Remote Controller Disposal · Precautions for Replacing Keyless Start Control Module · Precautions for Control Systems · General safety (00)
| [A]: | M/T model / A/T model | 18. | Theft deterrent light | 37. | Horn relay |
| [B]: | Twin clutch system model | 19. | ESP® control module | 38. | Brake light switch |
| 1. | Keyless start control module | 20. | Each control module
•M16A model: CAN Communication System Circuit Diagram:M16A Model
•K14C model: CAN Communication System Circuit Diagram:K14C Model •D16AA model: CAN Communication System Circuit Diagram:D16AA Model |
39. | “STL” fuse |
| 2. | Door key cylinder switch | 21. | Receiver | 40. | “BCM” fuse |
| 3. | CPP No.2 switch (M/T model) or P position switch (A/T model / twin clutch system model) | 22. | CPU | 41. | “DOME” fuse |
| 4. | Driver door request switch | 23. | Antenna circuit | 42. | ACC relay |
| 5. | Passenger door request switch | 24. | Power supply circuit | 43. | “ACC” fuse |
| 6. | Rear end door request switch | 25. | CAN driver | 44. | IG1 relay |
| 7. | Rear end door opener switch | 26. | Engine switch | 45. | “MTR” fuse |
| 8. | Rear end door switch | 27. | Engine switch illumination | 46. | IG2 relay |
| 9. | Driver door switch | 28. | Push switch 1 | 47. | “IG2 SIG” fuse |
| 10. | Passenger door switch | 29. | Push switch 2 | 48. | ECM |
| 11. | Rear door switch (L) | 30. | Steering lock unit | 49. | CPP No.1 switch (M/T model) or transmission range sensor (A/T model) |
| 12. | Rear door switch (R) | 31. | Mid inside antenna | 50. | Starting motor control relay |
| 13. | Driver door lock switch | 32. | Rear inside antenna | 51. | “ST SIG2” fuse |
| 14. | Passenger door lock switch | 33. | Rear outside antenna | 52. | TCM |
| 15. | Hood latch switch (if equipped) | 34. | Driver side outside antenna | 53. | ST3 relay |
| 16. | Outside warning buzzer | 35. | Passenger side outside antenna | ||
| 17. | Hazard warning switch | 36. | Horn switch |
Terminal Arrangement of Keyless Start Control Module Connector
NOTE:
For circuit name and terminal voltage, refer to Inspection of Keyless Start Control Module and Its Circuits.

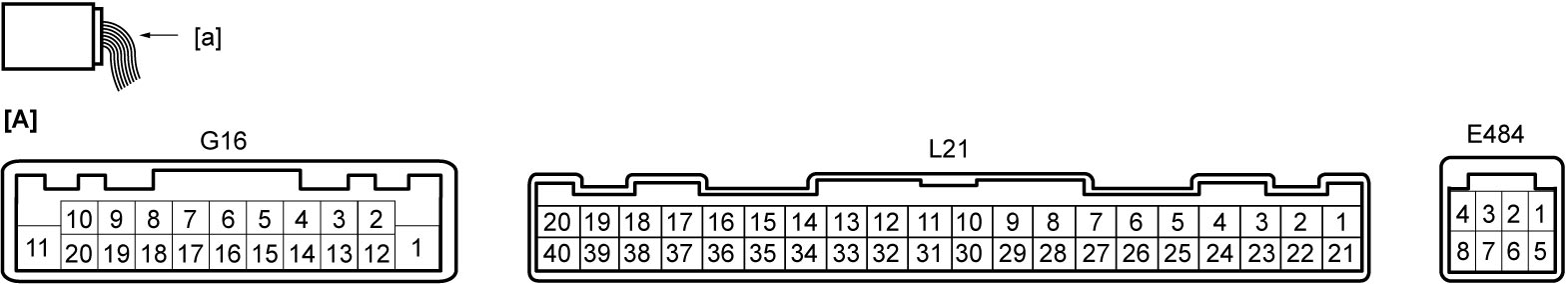

| [A]: | Keyless start control module connector (View: [a]) |
