DTC B1194 (M/T Model / A/T Model)
Precautions: Precautions for Diagnosing Trouble · Precautions for Replacing Remote Controller · Precautions for Remote Controller Disposal · Precautions for Replacing Keyless Start Control Module · Precautions for Control Systems · General safety (00)
DTC Detecting Condition and Trouble Area
| DTC detecting condition | Trouble area |
|---|---|
|
B1194: Starting Motor Relay Malfunction Inconsistency between starting motor control relay monitor input voltage and starting motor control relay ON condition is continued for longer than specified time. |
•Starting motor control relay circuit / connector
•Starting motor control relay •“ST” fuse •“ST SIG2” fuse •CPP No.1 switch circuit / connector (M/T model) •CPP No.1 switch (M/T model) •Transmission range sensor circuit / connector (A/T model) •TCM (including transmission range sensor) (A/T model) •Keyless start control module |

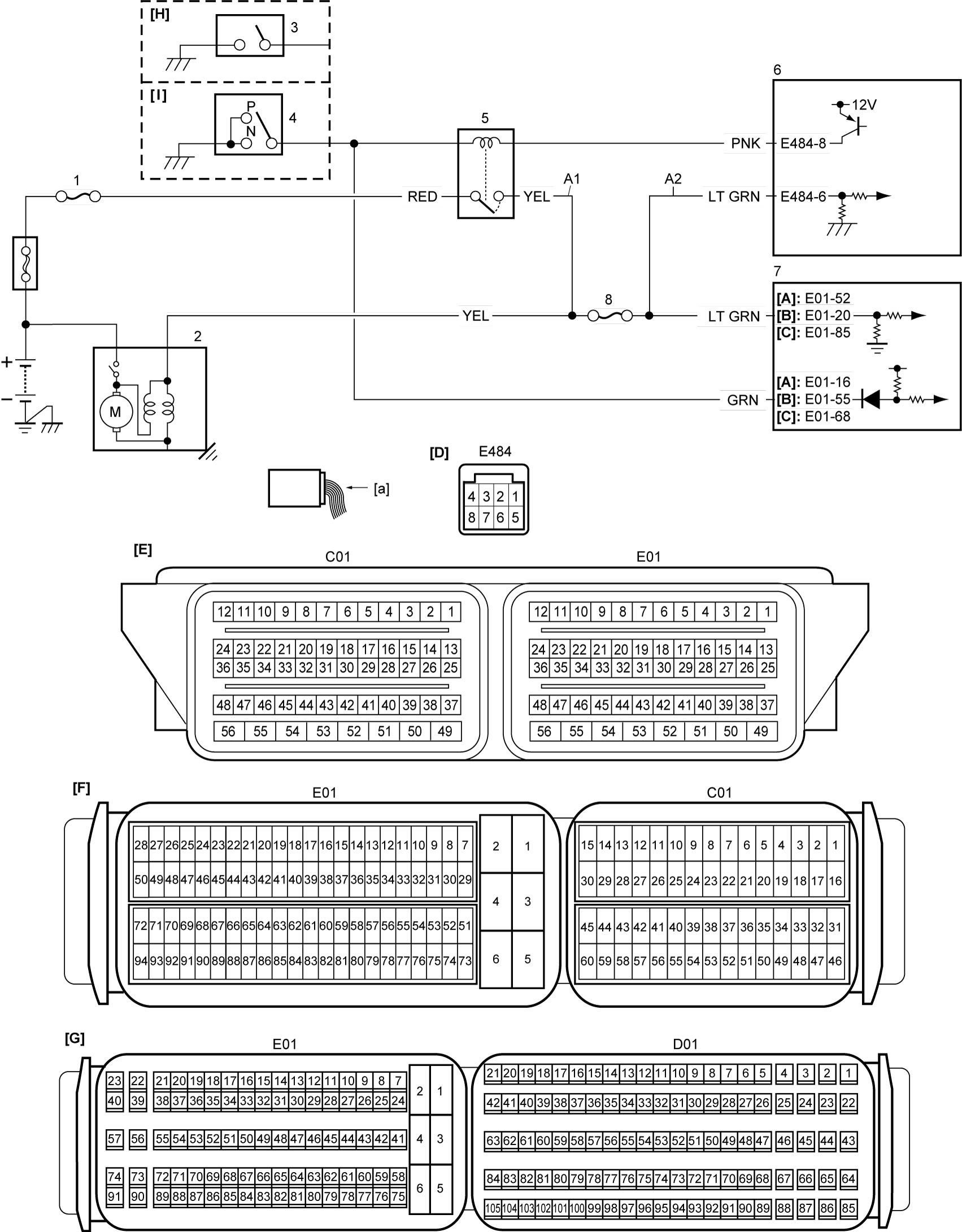

Circuit Diagram
| [A]: | M16A model | [H]: | M/T model | 4. | TCM (including transmission range sensor) |
| [B]: | K14C model | [I]: | A/T model | 5. | Starting motor control relay |
| [C]: | D16AA model | A1: | Starting motor control relay signal circuit No.1 | 6. | Keyless start control module |
| [D]: | Keyless start control module connector (View: [a]) | A2: | Starting motor control relay signal circuit No.2 | 7. | ECM |
| [E]: | ECM connector (M16A model) (View: [a]) | 1. | “ST” fuse | 8. | “ST SIG2” fuse |
| [F]: | ECM connector (K14C model) (View: [a]) | 2. | Starting motor | ||
| [G]: | ECM connector (D16AA model) (View: [a]) | 3. | CPP No.1 switch |
DTC Confirmation Procedure
1)Start engine.
2)Stop engine.
3)Repeat Step 1) – 2) once.
DTC Troubleshooting
NOTE:
This DTC might be detected when battery is run down or the voltage is very low.
| Step | Action | Yes | No |
|---|---|---|---|
| 1 |
DTC check
Is DTC B1125 detected?
|
Go to troubleshooting for applicable DTC.
|
Go to Step 2.
|
| 2 |
Fuse check
1)Check “ST” and “ST SIG2” fuses.
Is check result OK?
|
Go to Step 3.
|
Replace “ST” and/or “ST SIG2” fuse.
|
| 3 |
Starting motor control relay check
1)Check starting motor control relay.
Is check result OK?
|
Go to Step 4.
|
Replace starting motor control relay.
|
| 4 |
Starting motor control relay signal circuit check
1)Set ignition “OFF”.
2)Disconnect “E01”, “E484” and starting motor connectors.
3)Check for proper terminal connection to “E01”, “E484” and starting motor connectors.
4)If connections are OK, check the following points.
•Resistance of “A1” and “A2” circuits: less than 1 Ω
•Resistance between each of “A1” and “A2” circuits and ground: infinity •Resistance between “A1” circuit terminal and each terminal at starting motor control relay connector: infinity Is check result OK?
|
Replace keyless start control module and recheck DTC.
|
Repair or replace defective wire harness.
|
