Rear End Door Opener and Request Switch Removal and Installation

Precautions: Precautions for Diagnosing Trouble · Precautions for Replacing Remote Controller · Precautions for Remote Controller Disposal · Precautions for Replacing Keyless Start Control Module · Precautions for Control Systems · General safety (00)

Removal

1)Disconnect negative (–) cable at battery.

2)Remove rear end door trim.

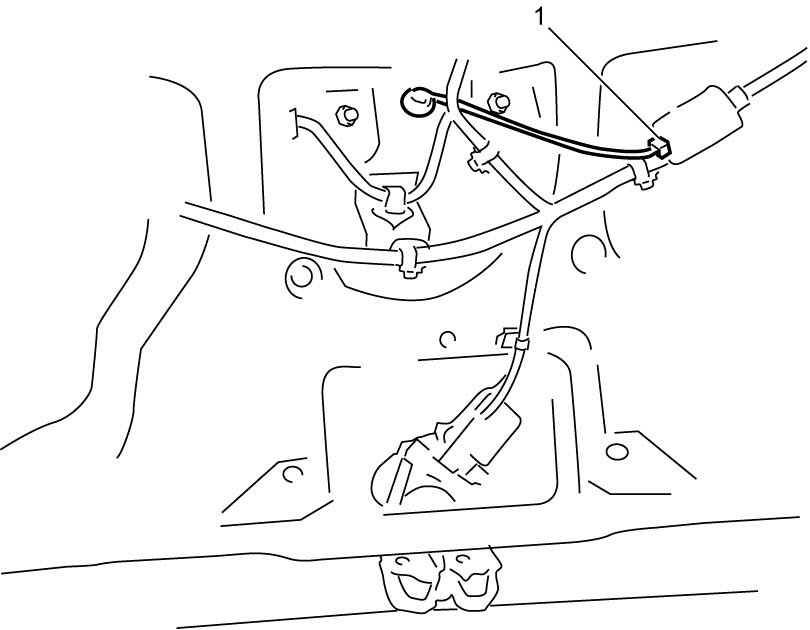

3)Disconnect rear end door opener and request switch connector (1).

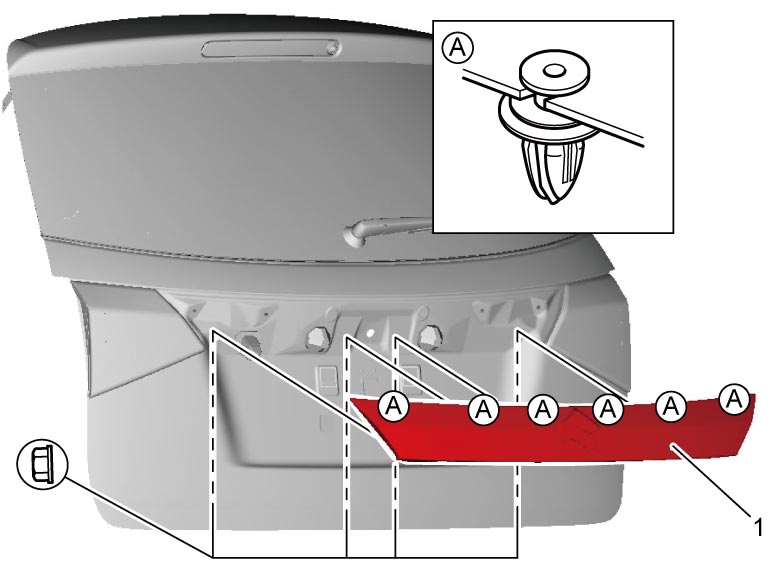

4)Remove rear end door license garnish (1).

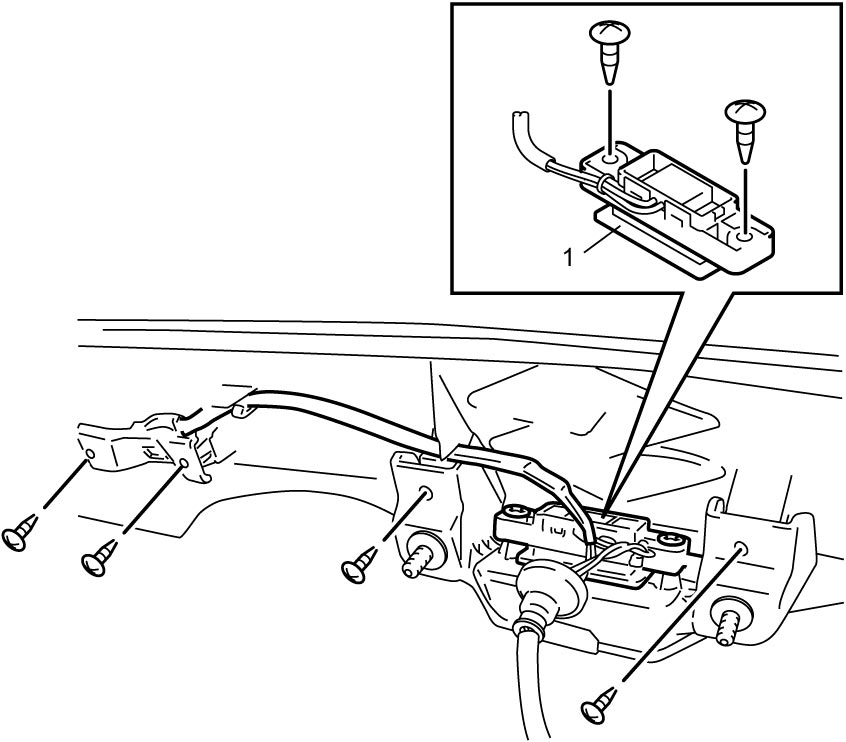

5)Remove screws, and then remove rear end door opener and request switch (1).

Installation

Reference: Request Switch Inspection

Reverse removal procedure noting the following point.

•Tighten rear end door license garnish nuts to specified torque.

Tightening torque

Rear end door license garnish nut: 5.5 N·m (0.56 kgf-m, 4.0 lbf-ft)
