Request Switch Inspection
Precautions: Precautions for Diagnosing Trouble · Precautions for Replacing Remote Controller · Precautions for Remote Controller Disposal · Precautions for Replacing Keyless Start Control Module · Precautions for Control Systems · General safety (00)
1)Remove door trim.
•Front door:
•Rear end door:
•Rear end door:

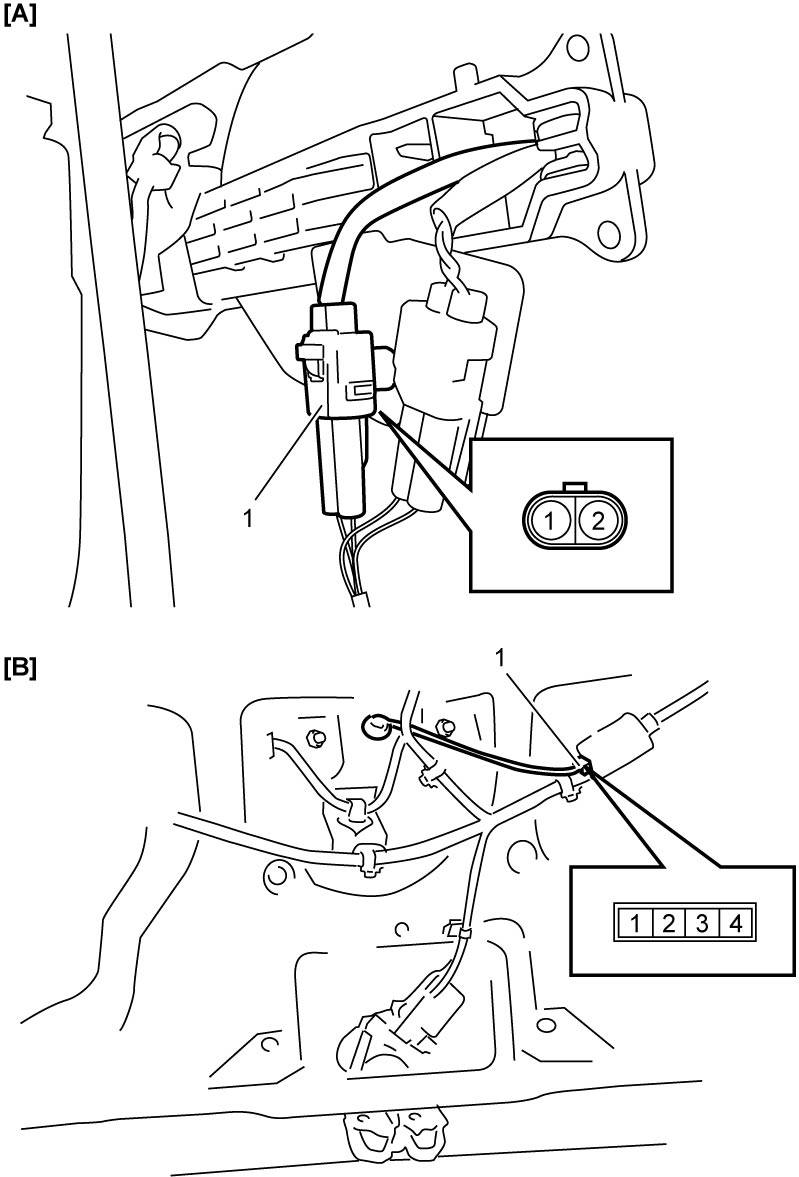

2)Disconnect request switch connector (1).

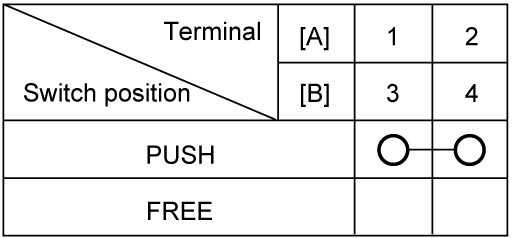

3)Check request switch for continuity between terminals at each switch position.
If check result is not as specified, replace request switch.
If check result is not as specified, replace request switch.
| [A]: | Front door | [B]: | Rear end door |
