Engine Switch Removal and Installation
Precautions: Precautions for Diagnosing Trouble · Precautions for Replacing Remote Controller · Precautions for Remote Controller Disposal · Precautions for Replacing Keyless Start Control Module · Precautions for Control Systems · General safety (00)

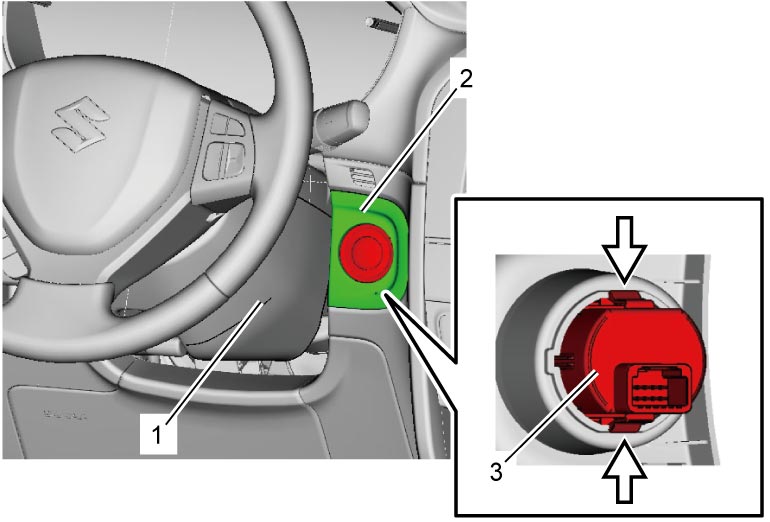

LHD
Removal
1)Disconnect negative (–) cable at battery.
2)Remove steering column lower cover (1).
3)Disconnect engine switch connector.
4)Remove driver inside upper cover (2).
5)Remove engine switch (3) from driver inside upper cover.

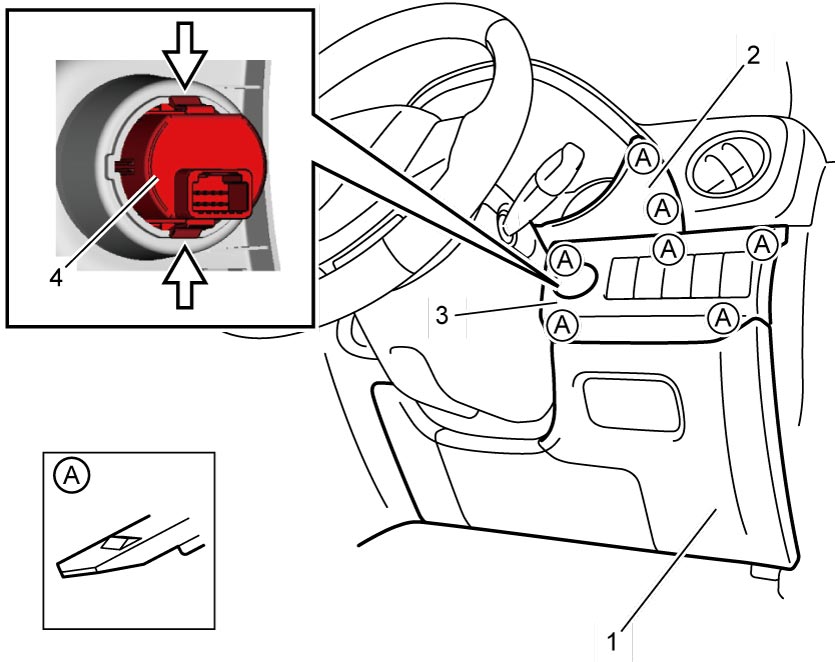

RHD
Removal
1)Disconnect negative (–) cable at battery.
2)Remove steering column hole cover (1).
3)Remove instrument panel driver ornament (2).
4)Remove instrument panel switch bezel (3).
5)Remove engine switch (4) from instrument panel switch bezel.
