ENG A-STOP System Component Location
Precautions: Precautions for Diagnosing Trouble · Precautions for Servicing ENG A-STOP System · Precautions for Replacing ENG A-STOP Control Module · Precautions for Control Systems · General safety (00)
NOTE:

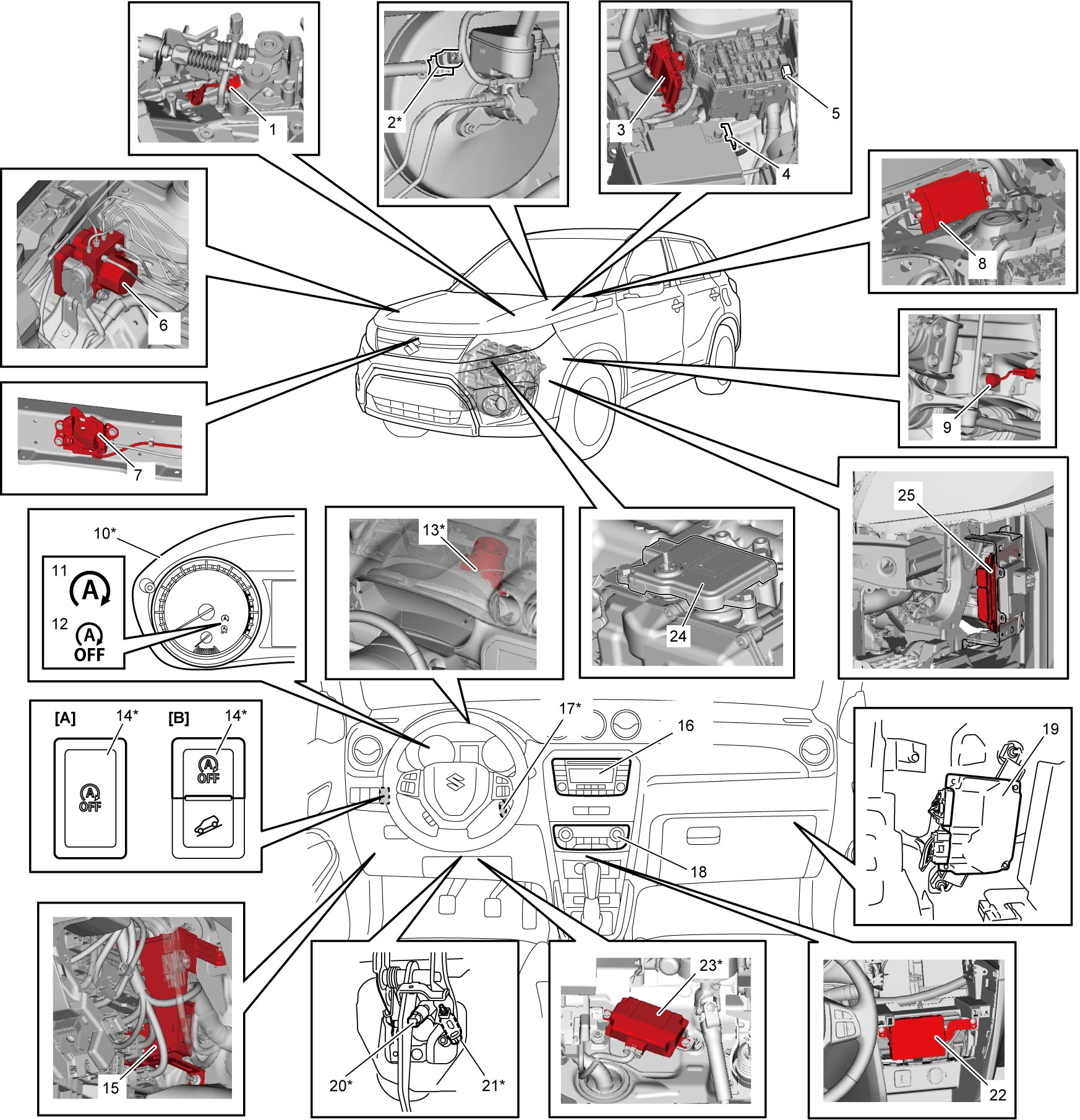

The figure shows LHD. For RHD, parts with (*) are installed on the opposite side.
| [A]: | Without hill descent control switch | 8. | ECM (D16AA model) | 17. | Ignition switch (ignition switch model) |
| [B]: | With hill descent control switch | 9. | Neutral position switch (K14C-M/T model / D16AA-M/T model) | 18. | Auto A/C panel (auto A/C model) |
| 1. | Neutral position switch (M16A- M/T model) | 10. | Combination meter | 19. | ENG A-STOP control module |
| 2. | Brake booster pressure sensor | 11. | ENG A-STOP indicator light | 20. | CPP No.2 switch (M/T model) |
| 3. | ECM (M16A model / K14C model) | 12. | ENG A-STOP warning light | 21. | CPP No.1 switch (M/T model) |
| 4. | Electric load current sensor & battery temperature sensor | 13. | P/S control module | 22. | HVAC control module (auto A/C model) |
| 5. | ST2 relay | 14. | ENG A-STOP OFF switch | 23. | DC/DC converter (A/T model) |
| 6. | ESP® control module | 15. | BCM | 24. | TCM (A/T model) |
| 7. | Hood latch switch (included in hood latch) | 16. | Audio unit / navigation (if equipped) | 25. | TCM (twin clutch system model) |
