CARPETS AND FLOOR MATS
REMOVAL
Front Carpet
1. Remove the front seat for the side being worked on, (Refer to 23 - BODY/SEATS/SEAT - FRONT - REMOVAL).
2. Remove the floor console, (Refer to 23 - BODY/INTERIOR/CENTER CONSOLE - REMOVAL)
3. Remove cowl trim panel for the side being worked on, (Refer to 23 - BODY/INTERIOR/COWL TRIM COVER - REMOVAL)
4. Remove the lower B-pillar trim if required, (Refer to 23 - BODY/INTERIOR/B-PILLAR TRIM - REMOVAL).

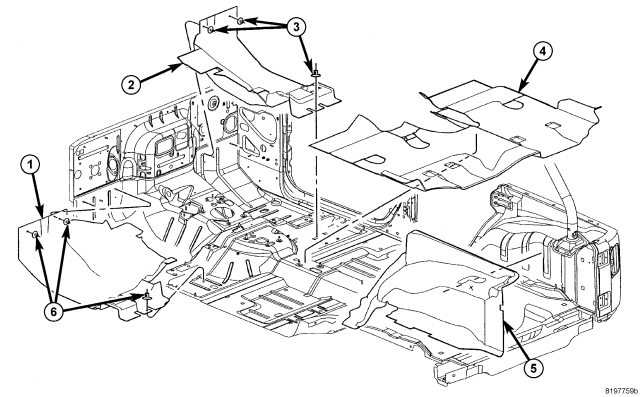

5. Remove the stud caps (3) or (6) and remove the carpet (1) or (2) as necessary.
Rear Carpet
1. Remove the rear seats, (Refer to 23 - BODY/SEATS/SEAT - REAR - REMOVAL)
1. Remove the rear speaker if necessary, (Refer to 8 - ELECTRICAL/AUDIO/SPEAKER - REMOVAL).
2. Remove the wheelhouse carpets (5), if necessary.
3. Remove the load floor carpet if necessary, (Refer to 23 - BODY/INTERIOR/LOAD FLOOR CARPET - REMOVAL).
4. Remove the rear carpet (4).
INSTALLATION
Front Carpet
1. Install the carpet (1) or (2) and install the stud caps (6) or (3).
2. Install the lower B-pillar trim, (Refer to 23 - BODY/INTERIOR/B-PILLAR TRIM - INSTALLATION).
3. Install the cowl trim panel, (Refer to 23 - BODY/INTERIOR/COWL TRIM COVER - INSTALLATION).
4. Install the floor console, (Refer to 23 - BODY/INTERIOR/CENTER CONSOLE - INSTALLATION).
5. Install the front seats, (Refer to 23 - BODY/SEATS/SEAT - FRONT - INSTALLATION).
Rear Carpet
1. Install the rear carpet (4).
2. Install the wheelhouse carpets (5).
3. Install the load floor carpet, (Refer to 23 - BODY/INTERIOR/LOAD FLOOR CARPET - INSTALLATION).
4. Install the rear speaker, (Refer to 8 - ELECTRICAL/AUDIO/SPEAKER - INSTALLATION).
5. Install the rear seat, (Refer to 23 - BODY/SEATS/SEAT - REAR - INSTALLATION).
