INSTALLATION
1. Install the hub bearing to the knuckle.
2. Install the hub bearing to knuckle and the 3 bolts (3) then tighten to 102 N·m (75 ft. lbs.).

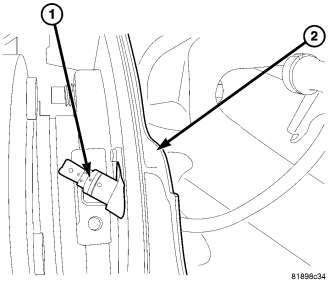

3. Install the wheel speed sensor (1) through the hole in the brake shield (2) (Refer to 5 - BRAKES/ELECTRICAL/FRONT WHEEL SPEED SENSOR - INSTALLATION).

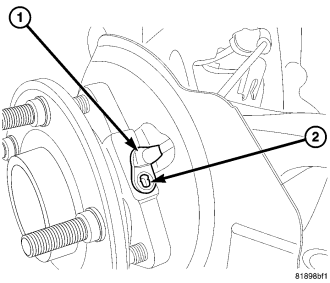

4. Install the wheel speed sensor (1) into the hub & bearing and install the mounting bolt (2). Tighten to 4-6 N·m (34-50 in. lbs.).

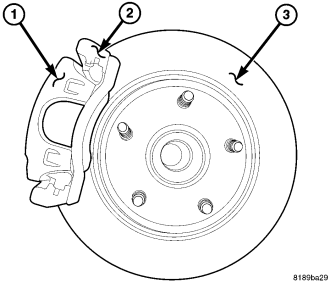

5. Install the brake rotor (3) (Refer to 5 - BRAKES/HYDRAULIC/MECHANICAL/ROTORS - INSTALLATION).
6. Install the brake caliper adaptor (1) (Refer to 5 - BRAKES/HYDRAULIC/MECHANICAL/DISC BRAKE CALIPER ADAPTER - INSTALLATION).
7. Install the caliper (1) (Refer to 5 - BRAKES/HYDRAULIC/MECHANICAL/DISC BRAKE CALIPERS - INSTALLATION).
8. Install the wheel and tire assembly (Refer to 22 - TIRES/WHEELS - STANDARD PROCEDURE).
9. Remove the support and lower the vehicle.
