INSTALLATION

SST

09223-22010
09506-35010

NOTICE:

1. Keep the lip free of foreign matter.

2. Do not tap on the oil seal at an angle.

3. Make sure that the oil seal edge does not stick out of the timing chain case.

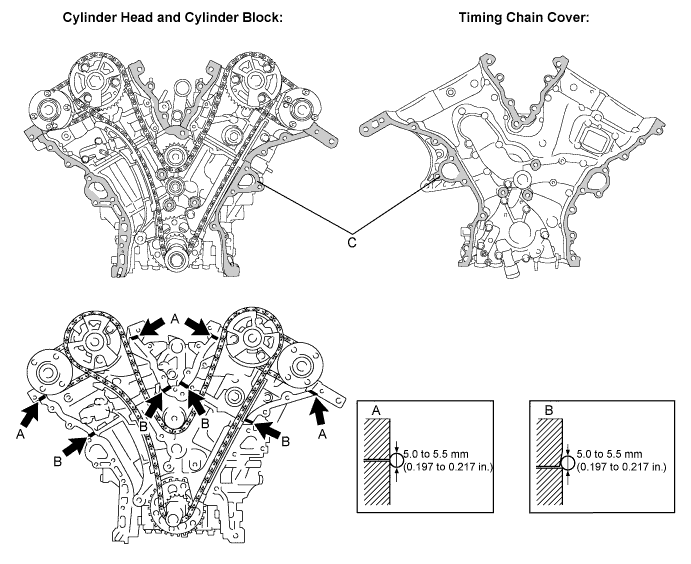

Apply seal packing in a continuous line to the engine unit as shown in the following illustration.

Seal packing:

Part No. 08826-00080 or equivalent

Seal diameter:

5.0 to 5.5 mm (0.197 to 0.217 in.)

NOTICE:

1. Be sure to clean and degrease the contact surfaces, especially the surfaces indicated by C in the illustration.

2. When the contact surfaces are wet, wipe them with an oil-free cloth before applying seal packing.

3. Install the chain cover within 3 minutes.

4. Do not start the engine for at least 2 hours after installing.

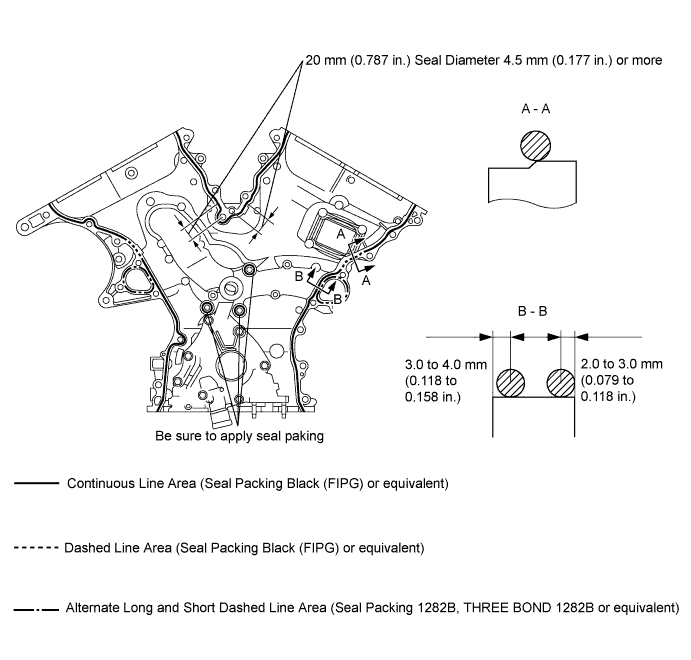

Apply seal packing in a continuous line to the timing chain cover as shown in the following illustration.

Seal packing:

08826-00080 or equivalent

08826-00100, THREE BOND 1282B or equivalent

NOTICE:

1. When the contact surfaces are wet, wipe them with an oil-free cloth before applying seal packing.

2. Install the chain cover within 3 minutes and tighten the bolts within 15 minutes after applying seal packing.

3. Do not start the engine for at least 2 hours after installing.


Apply seal packing as follows:

Area	Seal Packing Diameter	Application Position from Inside Seal Line
Continuous Line Area	3.5 to 4.0 mm (0.138 to 0.158 in.)	3.0 to 4.0 mm (0.118 to 0.158 in.)
Alternate Long and Dashed Line Area	3.5 to 4.0 mm (0.138 to 0.158 in.)	2.0 to 3.0 mm (0.079 to 0.118 in.)
Dashed Line Area	6.0 mm (0.236 in.)	-

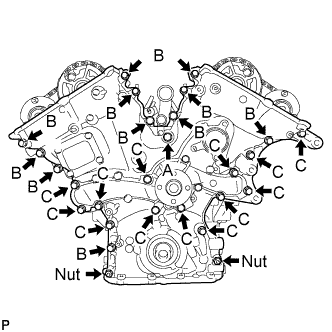

Bolt length:

Item	Length
Bolt A	50 mm (1.97 in.)
Bolt B	25 mm (0.98 in.)
Bolt C	55 mm (2.17 in.)

NOTICE:

Make sure that there is no oil on the bolt threads.

Torque:

43 N*m{ 438 kgf*cm , 32 ft.*lbf } for bolt A

21 N*m{ 214 kgf*cm , 15 ft.*lbf } for bolts except A

Torque:

21 N*m{ 214 kgf*cm , 15 ft.*lbf }

Torque:

21 N*m{ 214 kgf*cm , 15 ft.*lbf }

HINT:

Tighten the bolts and nuts in the order of upper to lower as shown in the illustration.

Torque:

21 N*m{ 214 kgf*cm , 15 ft.*lbf }

HINT:

Tighten the bolts in the order of lower to upper as shown in the illustration.

Torque:

10 N*m{ 102 kgf*cm , 7 ft.*lbf }

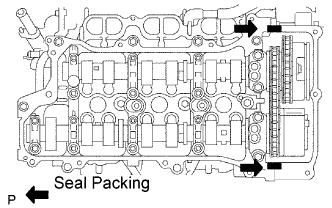

Seal packing:

08826-00080 or equivalent

NOTICE:

1. Remove any oil from the contact surface.

2. Install the head cover within 3 minutes after applying seal packing.

3. Do not start the engine for at least 2 hours after installing.


Install a new gasket to the head cover.

Torque:

21 N*m{ 214 kgf*cm , 15 ft.*lbf } for bolt A

10 N*m{ 102 kgf*cm , 7 ft.*lbf } for bolts except A

Seal packing:

08826-00080 or equivalent

NOTICE:

1. Remove any oil from the contact surface.

2. Install the head cover within 3 minutes after applying seal packing.

3. Do not start the engine for at least 2 hours after installing.


Install a new gasket to the head cover.

Torque:

21 N*m{ 214 kgf*cm , 15 ft.*lbf } for bolt A

10 N*m{ 102 kgf*cm , 7 ft.*lbf } for bolts except A

Make sure that there is no foreign matter on the mesh of the oil control valve filter LH.

NOTICE:

Do not touch the mesh when installing the oil control valve filter.

Install a new gasket and temporarily install the oil pipe (on the cylinder head side) with the oil check valve bolt.

Tighten the oil pipe union (on the head cover side).

Torque:

60 N*m{ 612 kgf*cm , 44 ft.*lbf }

Tighten the oil check valve bolt (on the cylinder head side).

Torque:

60 N*m{ 612 kgf*cm , 44 ft.*lbf }

NOTICE:

If the link that connects the gaskets is broken, remove the connecting link by using nippers or similar tools.

Make sure that there is no foreign matter on the mesh of the oil control valve filter RH.

NOTICE:

Do not touch the mesh when installing the oil control valve filter.

Install a new gasket and temporarily install the oil pipe (on the cylinder head side) with the oil check valve bolt.

Tighten the oil pipe union (on the head cover side).

Torque:

60 N*m{ 612 kgf*cm , 44 ft.*lbf }

Tighten the oil check valve bolt (on the cylinder head side).

Torque:

60 N*m{ 612 kgf*cm , 44 ft.*lbf }

NOTICE:

If the link that connects the gaskets is broken, remove the connecting link by using nippers or similar tools.

Install the 6 ignition coils with the 6 bolts.

Torque:

10 N*m{ 102 kgf*cm , 7 ft.*lbf }

Install a new O-ring, new backup rings (No. 1 and No. 2) and new E-ring to the fuel injector as shown in the illustration.

NOTICE:

1. Check that there is no foreign matter or damaged areas in the injector's O-ring groove.

2. Check that the No. 1 and No. 2 backup rings are installed in the correct direction.

3. Make sure that the backup rings and O-ring are installed in the correct order.

4. Check that the alignment openings of the backup rings are not overlapped or stretched as shown in the illustration.

5. After installing the O-ring, check that it is not contaminated with foreign matter and is not damaged.

6. Check that the No. 3 fuel pipe installation end is not contaminated with foreign matter and is not damaged.


NOTICE:

1. Do not install the No.2 fuel pipe at an angle.

2. Do not install the bolt at this time.


HINT:

When installing the fuel pump by following the procedure described above: By not using the crankshaft pointed side to push up the pump activation surface, it is easier to install the fuel pump and No. 2 fuel pipe later.

Pour 30 cc of engine oil through the cylinder head cover's fuel pump attachment hole into the cylinder head oil collector.

NOTICE:

Install the insulator so that the open sides of the metal eyelets are facing outward, as shown in the illustration.

NOTICE:

Be careful not to damage the sealing surface of the fuel pipe when temporarily installing the fuel pipe.

Torque:

25 N*m{ 255 kgf*cm , 18 ft.*lbf }

Connect the fuel hose.

Torque:

10 N*m{ 102 kgf*cm , 7 ft.*lbf }

Torque:

30 N*m{ 306 kgf*cm , 22 ft.*lbf }

HINT:

The torque shown above should be used for tightening without using union nut wrench. When the union nut wrench is used for tightening, the torque should be calculated based on the length of the union nut wrench (Click here).

Connect the connector to the fuel pump.

Torque:

10 N*m{ 102 kgf*cm , 7 ft.*lbf }

Connect the 2 fuel hoses.

Torque:

40 N*m{ 408 kgf*cm , 28 ft.*lbf }

HINT:

The torque shown above should be used for tightening without using SST. When the SST is used for tightening, the torque should be calculated based on the length of the SST (Click here).

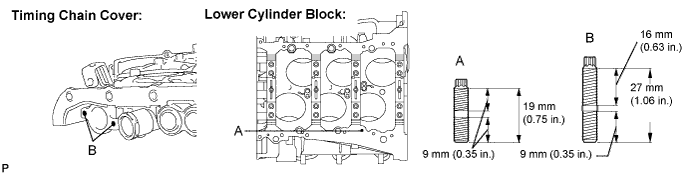

Using an E6 "torx" socket, install the stud bolts as shown in the illustration.

Torque:

4.0 N*m{ 41 kgf*cm , 35 in.*lbf }

Torque:

10 N*m{ 102 kgf*cm , 7 ft.*lbf }

HINT:

Temporarily tighten the 8 bolts. Fully tighten 2 bolts A as shown in the illustration before tightening the other bolts.

Torque:

10 N*m{ 102 kgf*cm , 7 ft.*lbf }

Torque:

4.0 N*m{ 41 kgf*cm , 35 in.*lbf }

Seal packing:

Part No. 08826-00080 or equivalent

Seal diameter:

3.0 to 4.0 mm (0.118 to 0.156 in.)

NOTICE:

1. Remove any oil from the contact surface.

2. Install the oil pan within 3 minutes after applying seal packing.

3. Do not start the engine for at least 2 hours after installing.


Torque:

10 N*m{ 102 kgf*cm , 7 ft.*lbf } for bolt A

21 N*m{ 214 kgf*cm , 15 ft.*lbf } for bolts except A

Seal packing:

Part No. 08826-00080 or equivalent

Seal diameter:

3.0 to 4.0 mm (0.118 to 0.156 in.)

NOTICE:

1. Remove any oil from the contact surface.

2. Install the oil pan No. 2 within 3 minutes after applying seal packing.

3. Do not start the engine for at least 2 hours after installing.


Torque:

10 N*m{ 102 kgf*cm , 7 ft.*lbf }

Using SST, install the crankshaft pulley bolt.

SST

09213-70011   (09213-70020)
09330-00021

Torque:

250 N*m{ 2,550 kgf*cm , 184 ft.*lbf }

Torque:

10 N*m{ 102 kgf*cm , 7 ft.*lbf }

NOTICE:

Be careful not to allow the O-ring to get caught between parts.

Torque:

10 N*m{ 102 kgf*cm , 7 ft.*lbf }

Install the bolt and No. 2 surge tank stay.

Torque:

21 N*m{ 214 kgf*cm , 15 ft.*lbf }

Torque:

10 N*m{ 102 kgf*cm , 7 ft.*lbf }

Install the engine wire to the engine assembly.

Temporarily install the pulley with the 4 bolts.

SST

09960-10010   (09962-01000, 09963-00700)

Torque:

21 N*m{ 214 kgf*cm , 15 ft.*lbf }

Each bolt length is as follows:

Mark	Specified Length
A	70 mm (2.76 in.)
B	35 mm (1.38 in.)

Install the V-ribbed belt tensioner by tightening the bolt 1 and bolt 2 in the order shown in the illustration.

Torque:

43 N*m{ 439 kgf*cm , 32 ft.*lbf }

Tighten the other bolts.

Torque:

43 N*m{ 439 kgf*cm , 32 ft.*lbf }

Torque:

43 N*m{ 439 kgf*cm , 32 ft.*lbf }

Connect the 2 clamps.

Torque:

43 N*m{ 439 kgf*cm , 32 ft.*lbf }

Torque:

25 N*m{ 255 kgf*cm , 18 ft.*lbf }

NOTICE:

Tighten the bolts in the order shown in the illustration to install the compressor and magnetic clutch.

Torque:

20 N*m{ 204 kgf*cm , 15 ft.*lbf }

Torque:

43 N*m{ 438 kgf*cm , 32 ft.*lbf }

Torque:

20 N*m{ 204 kgf*cm , 15 ft.*lbf }

Torque:

9.8 N*m{ 100 kgf*cm , 87 in.*lbf }

Install the terminal cap.

Install the clamp bracket with the bolt (B).

Torque:

10 N*m{ 102 kgf*cm , 7 ft.*lbf }

Attach the 2 clamps, and connect the generator connector to the generator.

Torque:

43 N*m{ 439 kgf*cm , 32 ft.*lbf }

Connect the clamp.

While turning the belt tensioner counterclockwise, remove the bar.

NOTICE:

1. Put the backside of the V-ribbed belt on the tensioner pulley and idler pulley.

2. Check that the V-ribbed belt is properly set to each pulley.


1. Put the V-ribbed belt on every part except the tensioner pulley as shown in the illustration.


2. While releasing the belt tension by turning the belt tensioner counterclockwise, put the V-ribbed belt on the tensioner pulley.


   NOTICE:

   1. Put the backside of the V-ribbed belt on the tensioner pulley and idler pulley.

   2. Check that the V-ribbed belt is properly set to each pulley.


SST

09213-70011   (09213-70020)
09330-00021

Torque:

73 N*m{ 741 kgf*cm , 54 ft.*lbf }

NOTICE:

1. Do not reuse the flywheel installation bolts. Be sure to check the tightening torque within 5 minutes after tightening.

2. Do not impact or damage the flywheel installation bolts. Be sure to handle them carefully.

3. Make sure that the seating surface of the flywheel installation bolts and installation surfaces of the crankshaft and flywheel are free of oil or foreign matter.


SST

09213-70011   (09213-70020)
09330-00021

Apply adhesive to 2 or 3 threads of the mounting bolts ends.

Adhesive:

Part No. 08833-00070, THREE BOND 1324 or equivalent

Install the front spacer, drive plate and rear spacer on the crankshaft.

Torque:

83 N*m{ 846 kgf*cm , 61 ft.*lbf }

NOTICE:

Do not start the engine for at least 1 hour after installing.

Torque:

35 N*m{ 357 kgf*cm , 26 ft.*lbf }

Torque:

58 N*m{ 591 kgf*cm , 43 ft.*lbf }

Connect the wire harness to terminal 30 and install the nut, and then attach the terminal cap.

Torque:

9.8 N*m{ 100 kgf*cm , 87 in.*lbf }

Connect the terminal 50 connector to the starter assembly.

Torque:

21 N*m{ 214 kgf*cm , 15 ft.*lbf }

NOTICE:

1. Do not damage the stud bolt when installing the exhaust manifold.

2. Be sure to tighten either of nuts A first as shown in the illustration.


Torque:

21 N*m{ 214 kgf*cm , 15 ft.*lbf }

NOTICE:

1. Do not damage the stud bolt when installing the exhaust manifold.

2. Be sure to tighten either of nuts A first as shown in the illustration.


Install a new O-ring to the oil dipstick guide.

Apply a light coat of engine oil to the O-ring.

Push in the oil dipstick guide end into the guide hole.

Torque:

10 N*m{ 102 kgf*cm , 7 ft.*lbf }

Connect the clamp.

Torque:

21 N*m{ 214 kgf*cm , 15 ft.*lbf }

Install the oil dipstick.

Set the engine lifter.

Operate the engine lifter, then install the engine to the vehicle.

Torque:

167 N*m{ 1,700 kgf*cm , 123 ft.*lbf } for Nut

204 N*m{ 2,080 kgf*cm , 150 ft.*lbf } for bolt A

50 N*m{ 510 kgf*cm , 37 ft.*lbf } for bolt B

49 N*m{ 500 kgf*cm , 36 ft.*lbf } for bolt C

Torque:

26 N*m{ 265 kgf*cm , 19 ft.*lbf }

Torque:

13 N*m{ 130 kgf*cm , 10 ft.*lbf }

Connect the wire harness connector (E) to the power steering link assembly and securely lock the connector.

Connect the 2 wire harness connectors (C) and (D) to the power steering link assembly.

Install the 2 wire harness clamps to the power steering link assembly.

Connect the earth wire to the bracket with bolt (A).

Torque:

5.0 N*m{ 51 kgf*cm , 44 in.*lbf }

Torque:

43 N*m{ 438 kgf*cm , 32 ft.*lbf }

Torque:

120 N*m{ 1,224 kgf*cm , 89 ft.*lbf }

Torque:

157 N*m{ 1,600 kgf*cm , 116 ft.*lbf }

Torque:

5.4 N*m{ 55 kgf*cm , 48 in.*lbf }

Torque:

35 N*m{ 360 kgf*cm , 26 ft.*lbf }

Torque:

8.0 N*m{ 82 kgf*cm , 71 in.*lbf }

Torque:

8.5 N*m{ 87 kgf*cm , 75 in.*lbf }

Connect the ground cable and install it with the bolt.

Torque:

13 N*m{ 133 kgf*cm , 10 ft.*lbf }

Connect the wire to the engine room No. 1 junction block. Then, install it with the nut.

Torque:

12 N*m{ 124 kgf*cm , 9 ft.*lbf }

Install the engine room No. 1 relay block cover.

Connect the battery positive (+) cable and install it with the nut.

Torque:

13 N*m{ 133 kgf*cm , 10 ft.*lbf }

Connect the ECM connectors.

Torque:

5.5 N*m{ 56 kgf*cm , 49 in.*lbf }

NOTICE:

Make sure that the wire harness does not get caught between the parts.

Apply sufficient compressor oil (ND-OIL 8) to a new O-ring and the fitting surface of the compressor and magnetic clutch.

Compressor oil:

ND-OIL 8 or equivalent

Install the O-ring onto the discharge hose sub-assembly.

Install the discharge hose sub-assembly onto the compressor and magnetic clutch with the bolt.

Torque:

9.8 N*m{ 100 kgf*cm , 87 in.*lbf }

Apply sufficient compressor oil to a new O-ring and the fitting surface of the compressor and magnetic clutch.

Compressor oil:

ND-OIL 8 or equivalent

Install the O-ring onto the No.1 cooler refrigerant suction hose.

Install the No. 1 cooler refrigerant suction hose onto the compressor and magnetic clutch with the bolt.

Torque:

9.8 N*m{ 100 kgf*cm , 87 in.*lbf }

Install the clamp and connect the outlet radiator hose.

Install the clamp and connect the reservoir tank hose.

Connect the hose to the surge tank.

Torque:

5.0 N*m{ 51 kgf*cm , 44 in.*lbf }

HINT:

Be sure to install the air cleaner assembly so that the screw part of the hose clamp is as shown in the illustration.

Torque:

5.0 N*m{ 51 kgf*cm , 44 in.*lbf }

Add new oil.

Specification:

Item	Capacity
Drain and refill with oil filter change	6.3 liters (6.7 US qts, 5.5 Imp. qts)
Drain and refill without oil filter change	5.9 liters (6.2 US qts, 5.2 Imp. qts)
Dry fill	7.2 liters (7.6 US qts, 6.3 Imp. qts)

Install the oil filter cap.

Tighten all the plugs and fill the radiator with TOYOTA Super Long Life Coolant (SLLC).

Torque:

13 N*m{ 130 kgf*cm , 9 ft.*lbf } for cylinder block drain cock plug

Add engine coolant.

Specified capacity:

9.1 liters (9.6 US qts, 8.0 lmp. qts)

HINT:

1. TOYOTA vehicles are filled with TOYOTA SLLC at the factory. In order to avoid damage to the engine cooling system and other technical problems, only use TOYOTA SLLC or similar high quality ethylene glycol based non-silicate, non-amine, non-nitrite, non-borate coolant with long-life hybrid organic acid technology (coolant with long-life hybrid organic acid technology consists of a combination of low phosphates and organic acids).


1. Contact your TOYOTA dealer for further details.


Slowly pour coolant into the radiator reservoir until it reaches the FULL line.

Press the inlet and outlet radiator hoses several times by hand, and then check the level of the coolant.
If the coolant level is low, add coolant.

Install the radiator cap and reservoir cap.

Bleed air from the cooling system.

NOTICE:

Before starting the engine to warm up the engine, turn the A/C switch OFF.

1. Warm up the engine until the thermostat opens. While the thermostat is open, circulate the coolant for several minutes.


   HINT:

   The thermostat open timing can be confirmed by pressing the inlet radiator hose by hand, and checking when the engine coolant starts to flow inside the hose.

   NOTICE:

   When pressing the radiator hoses:

   1. Wear protective gloves.


   1. Be careful as the radiator hoses are hot.


   1. Keep your hands away from the radiator fans.


2. Maintain the engine speed at 2,000 to 2,500 rpm.


3. Press the inlet and outlet radiator hoses several times by hand to bleed air.


   NOTICE:

   When pressing the radiator hoses:

   1. Wear protective gloves.


   1. Be careful as the radiator hoses are hot.


   1. Keep your hands away from the radiator fans.


Stop the engine, and wait until the engine coolant cools down to ambient temperature.

NOTICE:

Do not remove the radiator cap while the engine and radiator are still hot. Pressurized, hot engine coolant and steam may be released and cause serious burns.

Check the coolant level in the radiator reservoir.
If the coolant level is low, add SLLC to the radiator reservoir FULL line.

Perform vacuum purging using a vacuum pump.

Charge refrigerant HFC-134a (R134a).

Standard:

430 +- 30 g (15.17 +- 1.06 oz.)

SST

07110-58060   (07117-58060, 07117-58070, 07117-58080, 07117-58090, 07117-78050, 07117-88060, 07117-88070, 07117-88080)

NOTICE:

1. Do not operate the cooler compressor before charging refrigerant as the cooler compressor will not work properly without any refrigerant, and will overheat.


1. Approximately 100 g (3.53 oz.) of refrigerant may need to be charged after bubbles disappear. The refrigerant amount should be checked by measuring its quantity, and not with the sight glass.


1. Turn the engine switch on (IG).


   NOTICE:

   Do not start the engine.

2. Push the intelligent tester main switch ON.


3. Select the following menus: Powertrain / Engine / Active Test / Control the Fuel Pump /Speed.


Check the fuel pump operation.

1. Check for pressure in the fuel inlet tube from the fuel line. Check that sound of fuel flowing in the fuel tank can be heard.
   If no sound can be heard, check the integration relay, fuel pump, ECM and wiring connector.


Check for fuel leaks.

1. Check that there are no fuel leaks anywhere on the system after performing maintenance.
   If there is a fuel leak, repair or replace parts as necessary.


Fill the radiator with coolant and attach a radiator cap tester.

Warm up the engine.

Using a radiator cap tester, increase the pressure inside the radiator to 118 kPa (1.2 kgf*cm², 17 psi), and check that the pressure does not drop.
If the pressure drops, check the hoses, radiator and water pump for leaks. If no external leaks are found, check the heater core, cylinder block and cylinder head.

After recharging the refrigerant gas, check for refrigerant gas leakage using a halogen leak detector.

Perform the operation under the following conditions:

1. Stop the engine.


1. Secure good ventilation (the gas leak detector may react to volatile gases other than refrigerant, such as evaporated gasoline or exhaust gas).


1. Repeat the test 2 or 3 times.


1. Make sure that some refrigerant remains in the refrigeration system. When compressor is off: approximately 392 to 588 kPa (4 to 6 kgf*cm² 57 to 85 psi)


If a gas leak is not detected on the drain hose, remove the blower motor control (blower resistor) from the cooling unit. Insert the gas leak detector sensor into the unit and perform the test.

Disconnect the connector and leave the pressure switch on for approximately 20 minutes. Bring the gas leak detector close to the pressure switch and perform the test.

Move the shift lever to the N position and tighten the nut while lightly pushing the lever toward the R position.

NOTICE:

Do not push the shift lever too hard.

After adjustment, check that the shift lever moves smoothly and the shift lever and gear operate correctly.

When shifting from the P to R position with the engine switch on (IG) and the brake pedal depressed, make sure that the shift lever moves smoothly and moves correctly into the position.

Start the engine and make sure that the vehicle moves forward when shifting from the N to D position and moves rearward when shifting to the R position.
If operation cannot be done as specified, inspect the park/neutral position switch assembly and check the shift lever assembly installation condition.

Warm up the engine and stop the engine.

NOTICE:

A warmed up engine should have an engine coolant temperature of over 80°C (176°F), have an engine oil temperature of 60°C (140°F), and the engine rpm should be stabilized.

1. Connect the intelligent tester to the DLC3.


2. Start the engine and idle it.


3. Push the intelligent tester main switch ON.


4. Enter the following items: Powertrain / Engine and ECT / Data list / IGN Advance.


   Ignition timing:

   5 to 15° BTDC at idle


   HINT:

   Refer to the intelligent tester operator's manual for further details.

When not using the intelligent tester:

1. Remove the V-bank cover sub-assembly.


2. Connect the tester probe of a timing light to the wire of the ignition connector for No. 1 cylinder.


   NOTICE:

   Use a timing light which can detect the primary current.

3. Using SST, connect terminals TC and CG of the DLC3.


   SST

   09843-18040


   NOTICE:

   1. Confirm the terminal numbers before connecting them. Connecting the wrong terminals can damage the engine.

   2. When checking the ignition timing, the transmission should be in neutral.


4. Using a timing light, check the ignition timing.


   Ignition timing:

   8 to 12 BTDC at idle


5. Remove the SST from the DLC3.


6. Check the ignition timing.


   Ignition timing:

   5 to 15° BTDC at idle


7. Check that the ignition timing advances immediately when the engine speed is increased.


8. Disconnect the timing light from the engine.


9. Install the V-bank cover sub-assembly.


Warm up and stop the engine.

NOTICE:

A warmed up engine should have an engine coolant temperature of over 80°C (176°F) and an engine oil temperature of 60°C (140°F), and the engine rpm should be stabilized.

1. Connect the intelligent tester to the DLC3.


   NOTICE:

   Switch off all accessories and A/C before connecting the intelligent tester.

2. Race the engine speed at 2,500 rpm for approx. 90 seconds.


3. Push the intelligent tester main switch ON.


4. Enter the following items: powertrain / Engine and ECT / Data list / Engine SPD.


   Idle speed:

   650 to 750 rpm


   NOTICE:

   When checking the idle speed, the transmission should be in the neutral.

   HINT:

   Refer to the intelligent tester operator's manual for further details.

   If the idle speed is not as specified, check the air intake system.


5. Disconnect the intelligent tester from the DLC3.


1. Using SST, connect the tachometer probe to terminal TAC of the DLC3.


   SST

   09843-18040


   NOTICE:

   Confirm the terminal numbers before connecting them. Connecting the wrong terminals can damage the engine.

2. Race the engine speed at 2,500 rpm for approx. 90 seconds.


3. Check the idle speed.


   Idle speed (Transmission neutral position):

   650 to 750 rpm


   If the speed is not as specified, check the air intake system.


4. Disconnect the tachometer from the DLC3.


Start the engine.

Keep the engine speed at 2,500 rpm for approx. 180 seconds.

Immediately check CO / HC concentration at idle and / or 2,500 rpm.

HINT:

1. When performing the 2 mode (2,500 rpm and idle) test, follow the measurement order prescribed by the applicable local regulations.

2. If the CO / HC concentration does not comply with regulations, troubleshoot in the order given below.


1. Check the A/F sensor and heated oxygen sensor operation.


2. See the table below for possible causes, then inspect and correct the applicable causes if necessary.


   CO	HC	Symptom	Causes
   Normal	High	Rough idle	1 .Faulty ignitions Incorrect timing Fouled, shorted or improperly gapped plugs 2. Leaky intake and exhaust valves 3. Leaky cylinder
   Low	High	Rough idle (Fluctuating HC reading)	1. Vacuum leaks PCV hose Intake manifold Throttle body 2. Lean mixture causing misfire
   High	High	Rough idle (Black smoke from exhaust)	1. Restricted air filter 2. Faulty fuel SFI system Faulty pressure Defective ECT sensor Faulty ECM Faulty injector Faulty throttle position sensor Faulty MAF sensor

Warm up the engine, stop the engine and wait 5 minutes. The oil level should be between the dipstick's low level mark and full level mark.
If low, check for leakage and add oil up to the full level mark.

NOTICE:

Do not fill with engine oil above the full level mark.

NOTICE:

1. Be sure to engage the clips securely.

2. Do not apply excessive force or do not hit the cover to engage the clips. This may cause the cover to break.


Perform initialization (Click here).

NOTICE:

Certain systems need to be initialized after reconnecting the cable to the negative (-) battery terminal.
