Title: PARKING BRAKE: PARKING BRAKE CABLE: INSTALLATION (2008 LX570)

INSTALLATION

1. INSTALL NO. 2 PARKING BRAKE CABLE ASSEMBLY

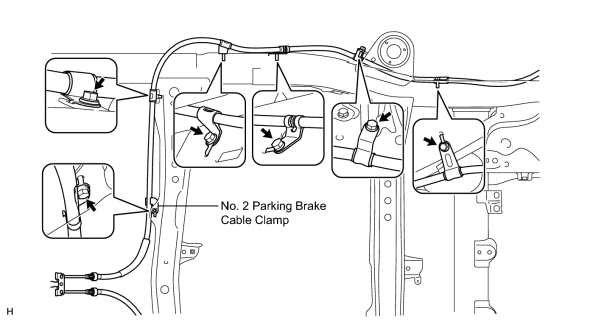

(a) Install the No. 2 parking brake cable clamp.

(b) Install the No. 2 parking brake cable with the 6 bolts.



Torque: 13 N·m (127 kgf·cm, 9 ft·lbf)

(c) Install the fuel tank 3UR-FE FUEL: FUEL TANK: INSTALLATION (2008 LX570) .

(d) Attach the claws of the No. 2 parking brake cable.

(e) Connect the No. 2 parking brake cable to the No. 1 parking brake pull rod.

2. INSTALL NO. 3 PARKING BRAKE CABLE ASSEMBLY

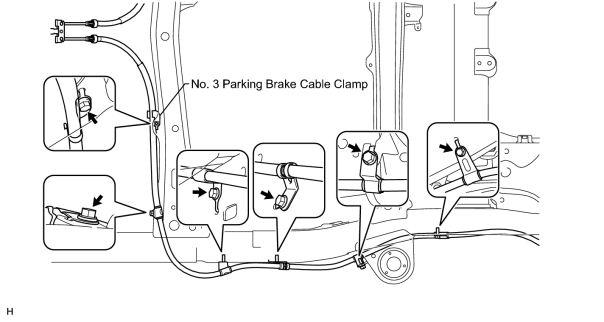

(a) Install the No. 3 parking brake cable clamp.

(b) Install the No. 3 parking brake cable with the 6 bolts.



Torque: 13 N·m (127 kgf·cm, 9 ft·lbf)


(c) Attach the claws of the No. 3 parking brake cable.

(d) Connect the No. 3 parking brake cable to the No. 1 parking brake pull rod.

3. CONNECT NO. 3 PARKING BRAKE CABLE ASSEMBLY PARKING BRAKE: PARKING BRAKE ASSEMBLY: REASSEMBLY (2008 LX570)+

4. INSTALL PARKING BRAKE SHOE LEVER SUB-ASSEMBLY PARKING BRAKE: PARKING BRAKE ASSEMBLY: REASSEMBLY (2008 LX570)+

5. INSTALL NO. 2 PARKING BRAKE SHOE ASSEMBLY PARKING BRAKE: PARKING BRAKE ASSEMBLY: REASSEMBLY (2008 LX570)+

6. INSTALL NO. 1 PARKING BRAKE SHOE ASSEMBLY PARKING BRAKE: PARKING BRAKE ASSEMBLY: REASSEMBLY (2008 LX570)+

7. INSTALL PARKING BRAKE SHOE RETURN SPRING PARKING BRAKE: PARKING BRAKE ASSEMBLY: REASSEMBLY (2008 LX570)+

8. CHECK PARKING BRAKE INSTALLATION PARKING BRAKE: PARKING BRAKE ASSEMBLY: REASSEMBLY (2008 LX570)+

9. INSTALL REAR DISC BRAKE (REAR): REAR BRAKE: INSTALLATION (2008 LX570)+

10. CONNECT REAR DISC BRAKE CYLINDER ASSEMBLY

(a) Connect the rear disc brake cylinder with 2 new bolts.

Torque: 95 N·m (969 kgf·cm, 70 ft·lbf)

NOTICE:

  • Do not twist the brake hose.
  • Make sure that the bolts are free from damage and foreign matter.
  • Do not overtighten the bolts.

11. INSTALL REAR NO. 2 SUSPENSION CONTROL ACCUMULATOR BRACKET SUSPENSION CONTROL: DAMPING FORCE CONTROL ACTUATOR (for Rear Side): INSTALLATION (2008 LX570)+

12. INSTALL HEIGHT CONTROL UNIT PROTECTOR PIPE SUSPENSION CONTROL: DAMPING FORCE CONTROL ACTUATOR (for Front Side): INSTALLATION (2008 LX570)+

13. INSPECT PARKING BRAKE LEVER TRAVEL PARKING BRAKE: PARKING BRAKE SYSTEM: ADJUSTMENT (2008 LX570)+

14. ADJUST PARKING BRAKE LEVER TRAVEL PARKING BRAKE: PARKING BRAKE SYSTEM: ADJUSTMENT (2008 LX570)+

15. INSTALL REAR WHEEL

Torque: 131 N·m (1336 kgf·cm, 97 ft·lbf)

16. INSTALL REAR CONSOLE BOX SUB-ASSEMBLY (w/o Cool Box)

(a) Install the rear console box sub-assembly INTERIOR PANELS / TRIM: FRONT CONSOLE BOX (w/o Cool Box): INSTALLATION (2008 LX570) .

17. INSTALL COOLING BOX ASSEMBLY (w/ Cool Box)

(a) Install the cooling box assembly INTERIOR PANELS / TRIM: FRONT CONSOLE BOX (w/ Cool Box): INSTALLATION (2008 LX570) .

18. INSTALL FRONT SEAT ASSEMBLY LH (w/ Cool Box)

(a) Install the front seat assembly LH SEAT: FRONT SEAT ASSEMBLY: INSTALLATION (2008 LX570) .

19. CHARGE REFRIGERANT (w/ Cool Box) HEATING / AIR CONDITIONING: REFRIGERANT: REPLACEMENT (2008 LX570)+

20. WARM UP ENGINE (w/ Cool Box) HEATING / AIR CONDITIONING: REFRIGERANT: REPLACEMENT (2008 LX570)+

21. CHECK FOR REFRIGERANT GAS LEAK (w/ Cool Box) HEATING / AIR CONDITIONING: REFRIGERANT: REPLACEMENT (2008 LX570)+

22. INSTALL UPPER RADIATOR SUPPORT SEAL (w/ Cool Box) EXTERIOR PANELS / TRIM: RADIATOR GRILLE: INSTALLATION (2008 LX570)+

23. INSTALL ENGINE ROOM SIDE COVER RH (w/ Cool Box) EXTERIOR PANELS / TRIM: RADIATOR GRILLE: INSTALLATION (2008 LX570)+

24. INSTALL ENGINE ROOM SIDE COVER LH (w/ Cool Box) EXTERIOR PANELS / TRIM: RADIATOR GRILLE: INSTALLATION (2008 LX570)+
