- Display and Navigation assembly power source circuit (w/ Navigation System)
- Multi-display power source circuit (w/o Navigation System)
- AVC-LAN circuit between multi-display and component which has stored this code
- Display and navigation module display (w/ Navigation System)
- Multi-display assembly (w/o Navigation System)
- Component which has stored this code
| Last Modified: 11-27-2007 | 1.6 C | |
| Service Category: Audio/Visual/Telematics | Section: Audio/Video | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM00000182L03IX |
| Title: AUDIO / VIDEO: AUDIO AND VISUAL SYSTEM: DESCRIPTION (2008 LX570) | ||
|
DTC |
01-DD |
Master Reset |
|
DTC |
01-E1 |
Voice Processing Device ON Error |
DESCRIPTION
|
DTC Code |
DTC Detection Condition |
Trouble Area |
|---|---|---|
|
01-DD |
The device that should be the master has been disconnected after the engine starts. |
|
|
01-E1*1 |
The amplifier device records that the amplifier output does not function even while the source device is operating. |
HINT:
*: Even if no fault is present, this trouble code may be stored depending on the battery condition or engine start voltage.
NOTICE:
- Before starting troubleshooting, be sure to clear DTCs to clear codes stored due to the reasons described in the Hint above. Then, check for DTCs and troubleshoot according to the output DTCs.
- The multi-display or display and navigation module display is the master unit.
- Be sure to clear and recheck for DTCs after the inspection is completed to confirm that no DTCs are output.

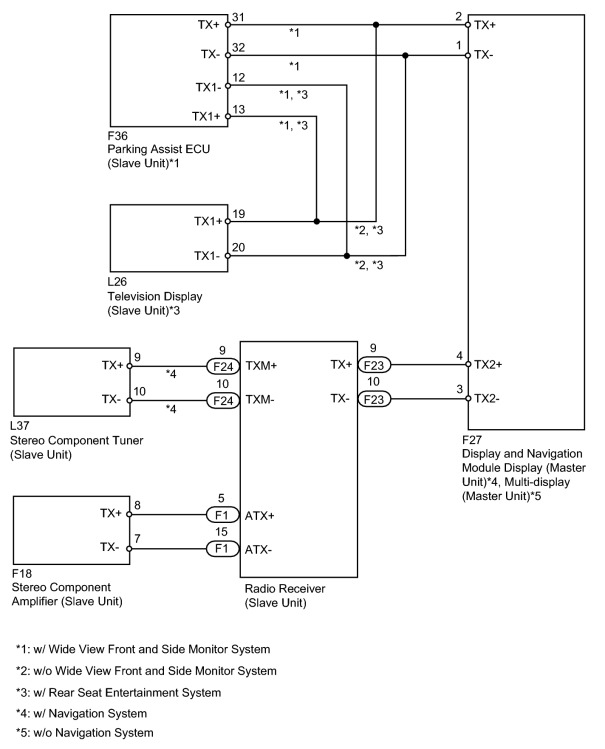

WIRING DIAGRAM
INSPECTION PROCEDURE
NOTICE:
Be sure to read the Description before performing the following procedures.
HINT:
If the vehicle has a navigation system, "multi-display" refers to the "display and navigation module display".
PROCEDURE
|
1. |
CHECK POWER SOURCE CIRCUIT |
(a) w/ Navigation System: Refer to the Display and Navigation Assembly Power Source Circuit
.
(b) w/o Navigation System: Refer to the Multi-display Power Source Circuit
.
If the power source circuit is operating normally, proceed to the next step.
|
|
2. |
INSPECT RADIO RECEIVER ASSEMBLY |
(a) Disconnect the F1, F23 and F24 receiver connectors.
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
F1-5 (ATX+) - F1-15 (ATX-) |
Always |
60 to 80 Ω |
|
F23-9 (TX+) - F23-10 (TX-) |
Always |
60 to 80 Ω |
|
F24-9 (TXM+) - F24-10 (TXM-) |
Always |
60 to 80 Ω |
|
|
3. |
IDENTIFY COMPONENT WHICH HAS STORED THIS CODE |
|
(a) Enter the diagnostic mode. |
(b) Press the "LAN Mon" switch to change to "LAN Monitor" mode.
(c) Identify the component which has stored this code.
Component Table
|
Display |
Component |
|---|---|
|
AUDIO |
Radio receiver |
|
DSP-AMP |
Stereo component amplifier |
|
CAMERA-C*1 |
Parking assist ECU |
|
XM*2 |
Stereo component tuner |
|
RSE*3 |
Television display |
*1: w/ Wide View Front and Side Monitor System
*2: w/ SDARS System
*3: w/ Rear Seat Entertainment System
HINT:
"NAVI" is the component which has stored this code in the example shown in the illustration.
|
|
4. |
CHECK HARNESS AND CONNECTOR (MULTI-DISPLAY - COMPONENT WHICH HAS STORED THIS CODE) |
HINT:
For details of the connectors, refer to Terminals of ECU
.
(a) Referring to the AVC-LAN wiring diagram, check the AVC-LAN circuit between the multi-display and the component which has stored this code.
(1) Disconnect all connectors between the multi-display and the component which has stored this code.
(2) Check for an open or short in the AVC-LAN circuit between the multi-display and the component which has stored this code.
OK:
There is no open or short circuit.
|
|
5. |
REPLACE MULTI-DISPLAY WITH NORMAL ONE AND CHECK |
(a) w/ Navigation System: Replace the display and navigation module display with a normal one and check if the same problem occurs again
.
(b) w/o Navigation System: Replace the multi-display with a normal one and check if the same problem occurs again
.
OK:
Same problem does not occur.
|
|
|
