DTC P0045 / P0046 / P0047 / P0048 / P004C / P004D / P006E
Precautions: General safety (00)
DTC Detecting Condition and Trouble Area
| DTC detection condition | Trouble area |
|---|---|
|
P0045: Turbocharger / Supercharger Boost Control “A” Circuit / Open Turbocharger actuator drive circuit is open. (1 D/C detecting logic) |
•Turbocharger actuator and/or its circuit
•ECM |
|
P0046: Turbocharger / Supercharger Boost Control “A” Circuit Range / Performance Turbocharger actuator drive circuit is overload. (1 D/C detecting logic) |
|
|
P0047: Turbocharger / Supercharger Boost Control “A” Circuit Low Turbocharger actuator (+) drive circuit is shorted to ground. (1 D/C detecting logic) |
|
|
P0048: Turbocharger / Supercharger Boost Control “A” Circuit High Turbocharger actuator (+) drive circuit is shorted to power supply. (1 D/C detecting logic) |
|
|
P004C: Turbocharger / Supercharger Boost Control “B” Circuit Low Turbocharger actuator (–) drive circuit is shorted to ground. (1 D/C detecting logic) |
|
|
P004D: Turbocharger / Supercharger Boost Control “B” Circuit High Turbocharger actuator (–) drive circuit is shorted to power supply. (1 D/C detecting logic) |
|
|
P006E: Turbocharger / Supercharger Boost Control “A” Supply Voltage Circuit Low Measured voltage of turbocharger actuator drive circuit is lower than specified value. (1 D/C detecting logic) |

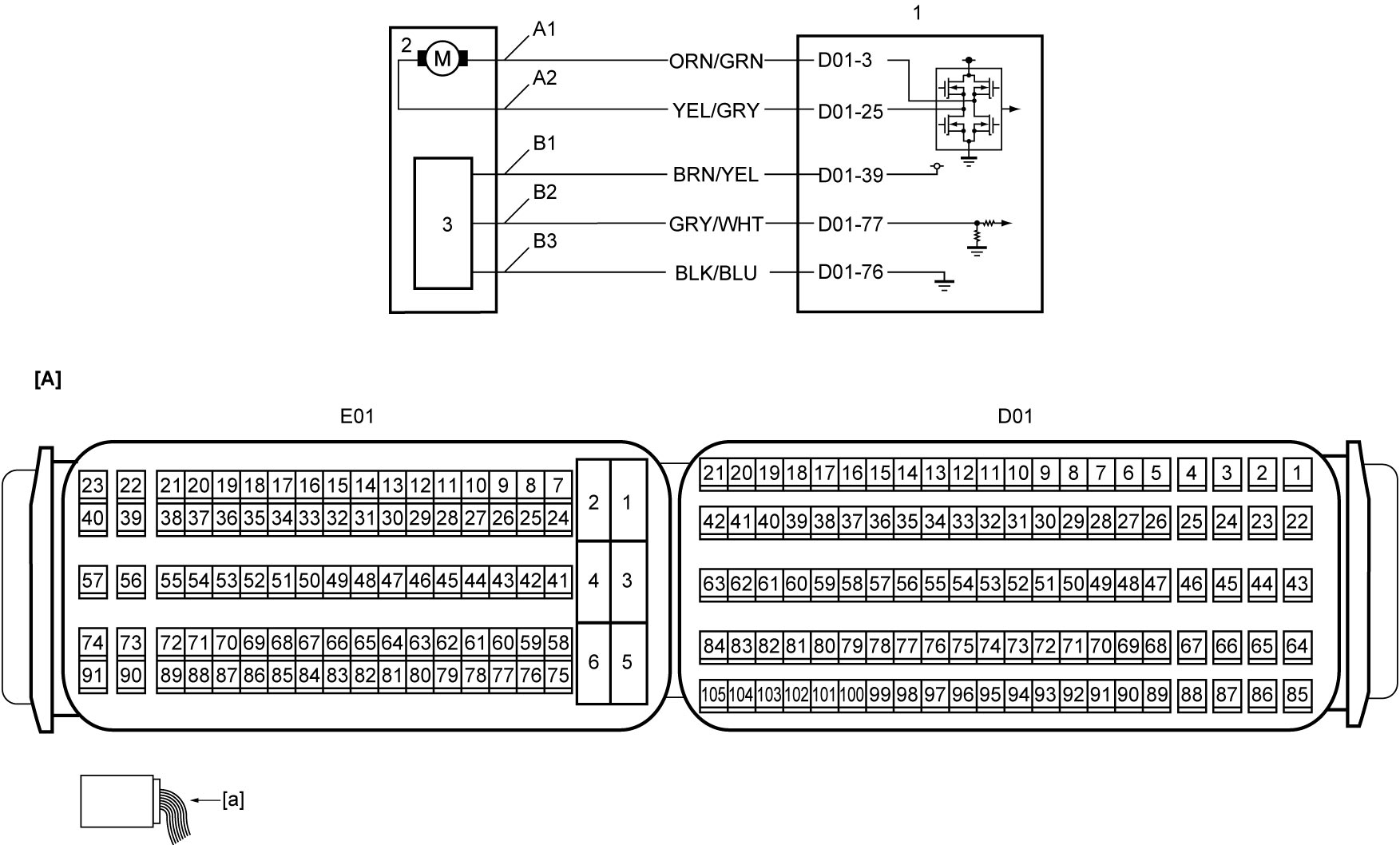

Circuit Diagram
| [A]: | ECM connector (View: [a]) | B1: | Turbocharger actuator position sensor power supply circuit | 1. | ECM |
| A1: | Turbocharger actuator (+) drive circuit | B2: | Turbocharger actuator position sensor signal circuit | 2. | Turbocharger actuator motor |
| A2: | Turbocharger actuator (–) drive circuit | B3: | Turbocharger actuator position sensor ground circuit | 3. | Turbocharger actuator position sensor |
DTC Troubleshooting
| Step | Action | Yes | No |
|---|---|---|---|
| 1 |
Was “Engine and Emission Control System Check” performed?
|
Go to Step 2.
|
|
| 2 |
Turbocharger actuator (+) drive circuit and (–) drive circuit check
1)Check “A1” and “A2” circuits according to Step 2 of Turbocharger Actuator Operation Check:D16AA.
Is check result OK?
|
Go to Step 3.
|
Repair or replace defective wire harness.
|
| 3 |
Turbocharger actuator check
1)Check turbocharger actuator.
Is check result OK?
|
Replace ECM and recheck turbocharger actuator operation.
|
Replace turbocharger with exhaust manifold.
|
