DTC P2199
Precautions: General safety (00)
DTC Detecting Condition and Trouble Area
| DTC detecting condition | Trouble area |
|---|---|
|
P2199: Intake Air Temperature Sensor 1/2 Correlation Difference between IAT sensor-1 signal and EGT sensor-1 signal is higher than specified value. (1 D/C detection logic but MIL does not light up) |
•IAT sensor-1 and/or its circuit
•EGT sensor-1 and/or its circuit •ECM |

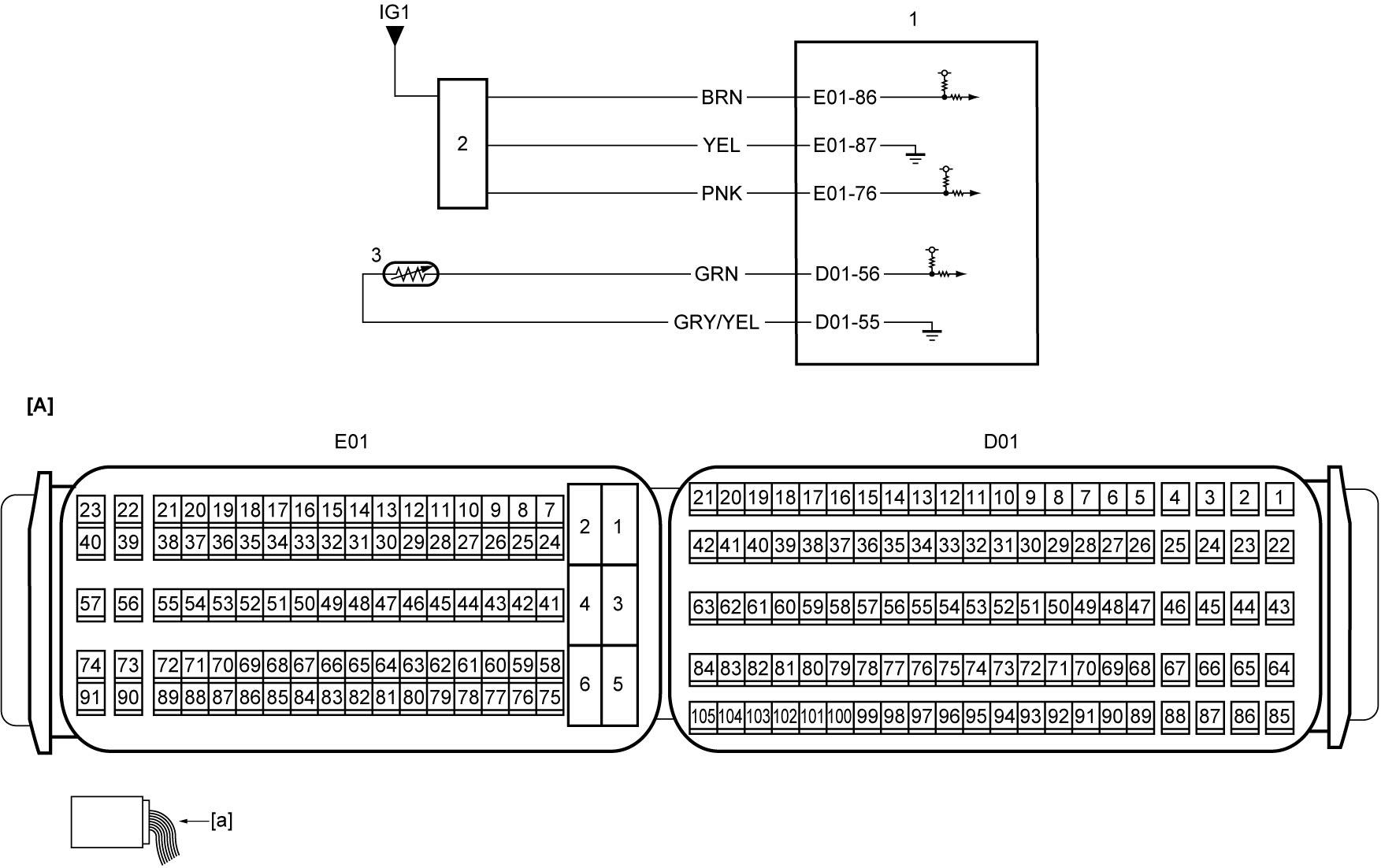

Circuit Diagram
| [A]: | ECM connector (View: [a]) | 2. | MAF sensor with IAT sensor-1 |
| 1. | ECM | 3. | EGT sensor-1 |
DTC Troubleshooting
| Step | Action | Yes | No |
|---|---|---|---|
| 1 |
Was “Engine and Emission Control System Check” performed?
|
Go to Step 2.
|
|
| 2 |
IAT sensor-1 operation check
1)Check that IAT sensor-1 is working properly.
Is check result OK?
|
Go to Step 3.
|
Repair or replace defective part(s).
|
| 3 |
EGT sensor-1 operation check
1)Check that EGT sensor-1 is working properly.
Is check result OK?
|
Replace ECM and recheck DTC.
|
Repair or replace defective part(s).
|
