DTC P2288 / P2289
Precautions: General safety (00)
DTC Detecting Condition and Trouble Area
| DTC detecting condition | Trouble area |
|---|---|
|
P2288: Injector Control Pressure Too High Measured fuel pressure in common rail is higher than specified value. (1 D/C detection logic) |
•Lack of fuel
•Fuel pressure sensor and/or its circuit •Fuel flow actuator and/or its circuit •Low fuel pressure circuit (fuel pressure regulator in fuel pump, fuel pump and/or its circuit, fuel hose, fuel pipe) •High fuel pressure circuit (high pressure pump, common rail, high pressure pipe, fuel injector) •ECM |
|
P2289: Injector Control Pressure Too High – Engine Off Measured fuel pressure in common rail is higher than specified value when engine is stopped. (1 D/C detection logic) |

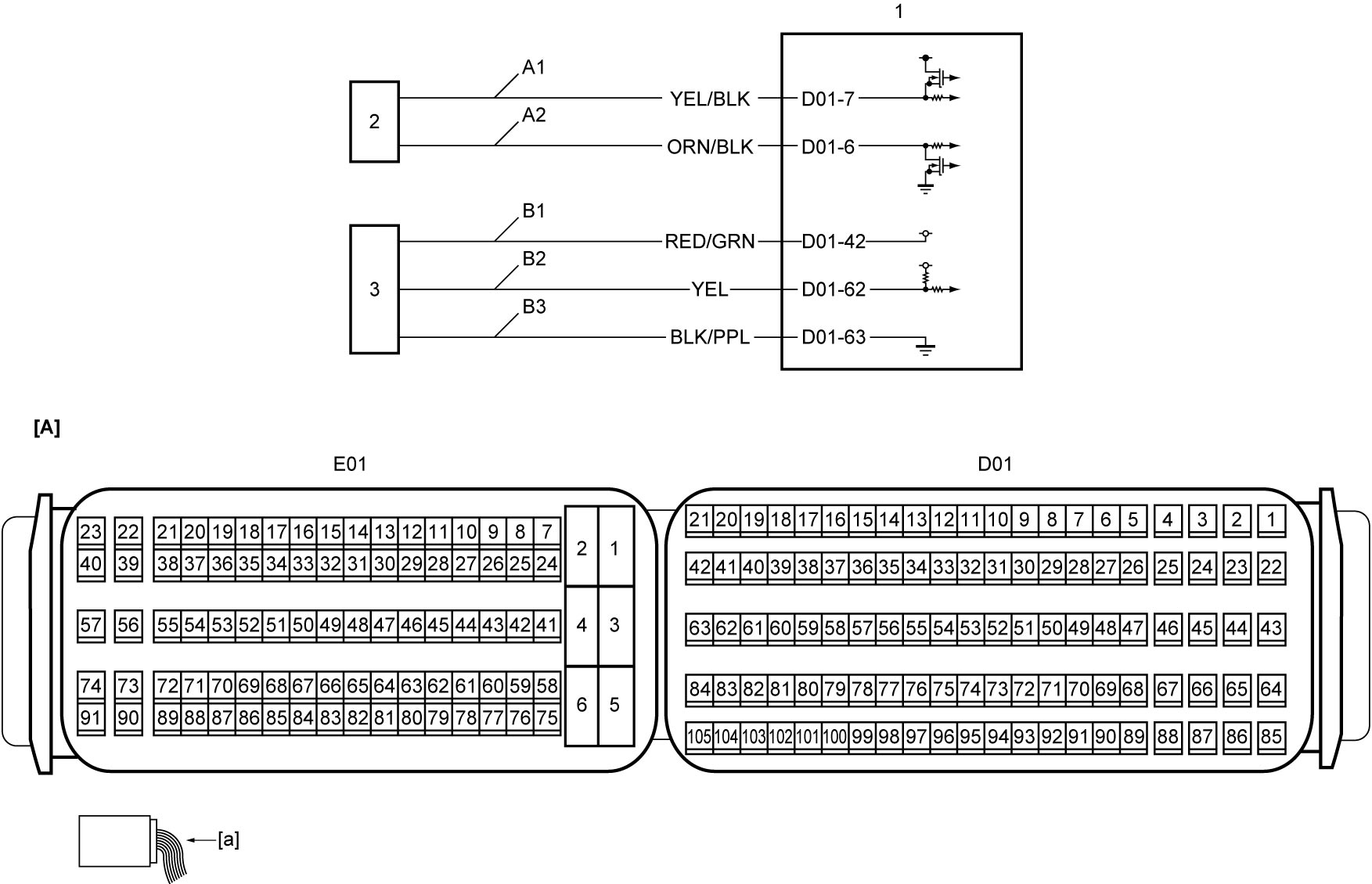

Circuit Diagram
| [A]: | ECM connector (View: [a]) | B1: | Fuel pressure sensor power supply circuit | 1. | ECM |
| A1: | Fuel flow actuator power supply circuit | B2: | Fuel pressure sensor signal circuit | 2. | Fuel flow actuator |
| A2: | Fuel flow actuator drive circuit | B3: | Fuel pressure sensor ground circuit | 3. | Fuel pressure sensor |
DTC Troubleshooting
| Step | Action | Yes | No |
|---|---|---|---|
| 1 |
Was “Engine and Emission Control System Check” performed?
|
Go to Step 2.
|
|
| 2 |
Fuel level check
1)Check fuel level by fuel gauge.
Does fuel gauge indicate “E” level (empty)?
|
Add fuel and recheck DTC.
|
Go to Step 3.
|
| 3 |
Fuel pressure sensor power supply circuit, signal circuit and ground circuit check
1)Check “B1”, “B2” and “B3” circuits according to Step 3 – 6 of Fuel Pressure Sensor Circuit Check:D16AA.
Is check result OK?
|
Go to Step 4.
|
Repair or replace defective wire harness.
|
| 4 |
Fuel flow actuator power supply circuit and drive circuit check
1)Check “A1” and “A2” circuits according to Step 1 of Fuel Flow Actuator Operation Check:D16AA.
Is check result OK?
|
Go to Step 5.
|
Repair or replace defective wire harness.
|
| 5 |
Low fuel pressure circuit check
1)Check low fuel pressure circuit.
Is check result OK?
|
Go to Step 6.
|
Repair or replace defective part(s).
|
| 6 |
High fuel pressure circuit check
1)Check high fuel pressure circuit.
Is check result OK?
|
Go to Step 7.
|
Repair or replace defective part(s).
|
| 7 |
Fuel flow actuator check
1)Check fuel flow actuator.
Is check result OK?
|
Go to Step 8.
|
Replace high pressure pump.
|
| 8 |
Fuel pressure sensor replacement
1)Replace fuel pressure sensor.
2)Clear DTC.
3)Set ignition “OFF”.
4)Check DTC.
Is DTC P2288 or P2289 still detected?
|
Replace ECM and recheck DTC.
|
End.
|
