Oil Pressure Check
Precautions: General safety (00)
NOTE:
Before checking oil pressure, check the following points.
•Oil level in oil pan

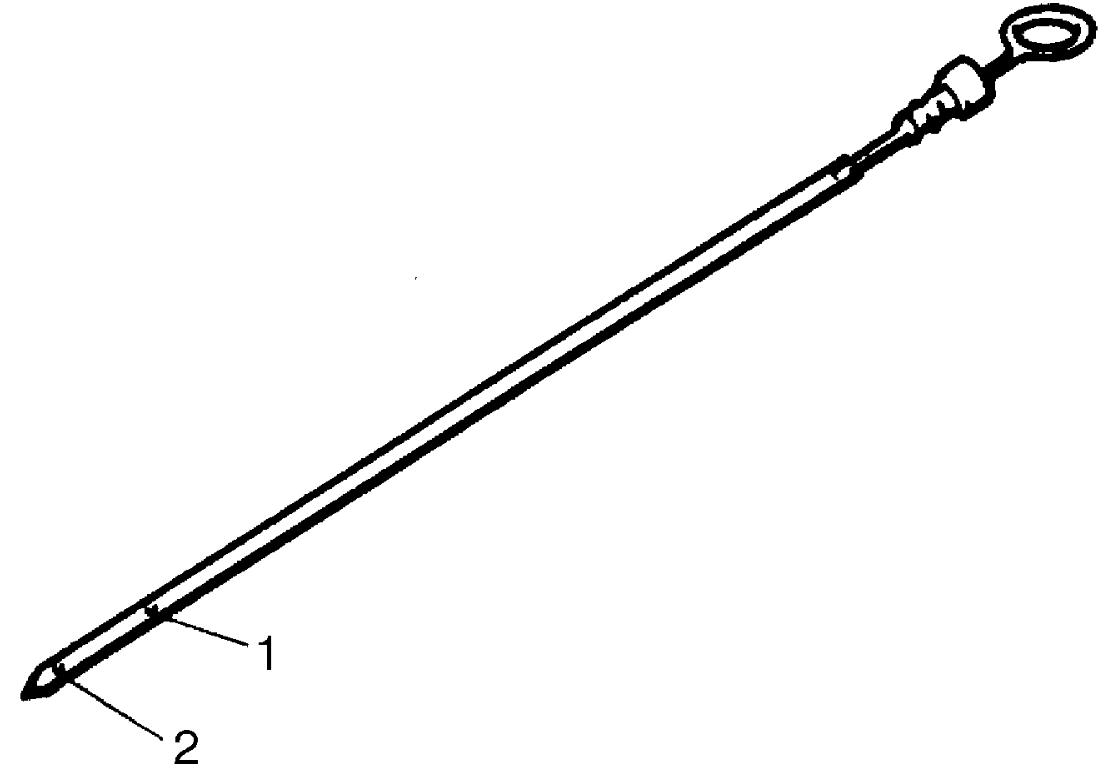

If oil level is low, add oil up to FULL level mark (hole) (1) on oil level gauge.
•Oil quality
If oil is discolored or deteriorated, change it.
•Oil leakage
If leakage is found, repair leaky point.
If oil level is low, add oil up to FULL level mark (hole) (1) on oil level gauge.
| 2. | LOW level mark (hole) |
If oil is discolored or deteriorated, change it.
•Oil leakage
If leakage is found, repair leaky point.
1)For M/T model, place gear shift lever in “Neutral” and apply parking brake.
For A/T model, place select lever in “P” and apply parking brake.
For A/T model, place select lever in “P” and apply parking brake.
2)Remove oil pressure switch.

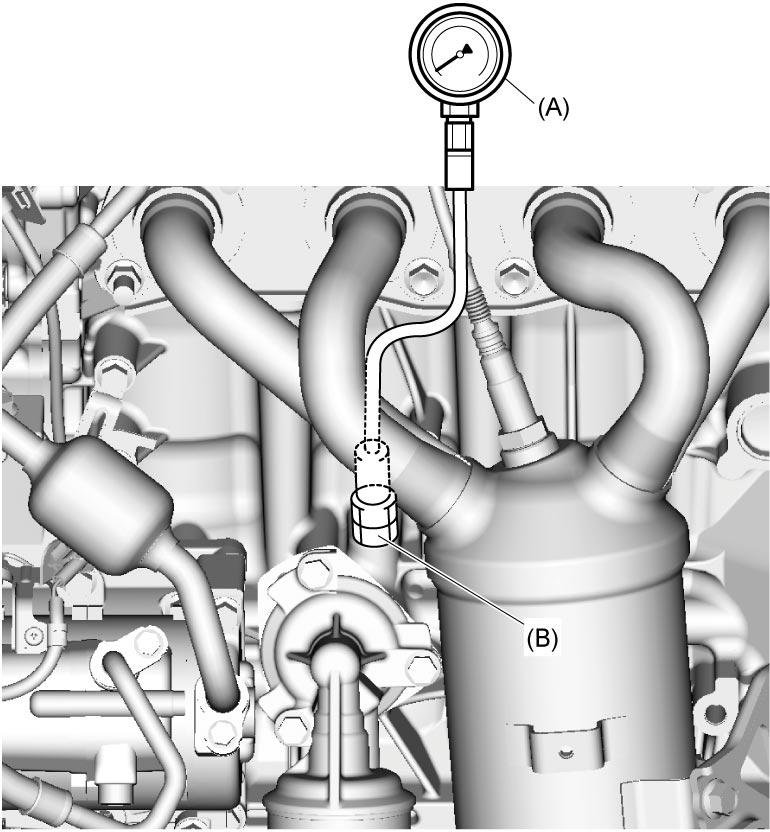

3)Install special tools to threaded hole where oil pressure switch was removed.
4)Connect HO2S-1 connector.
5)Install air cleaner assembly.
6)Start engine and warm it up to normal operating temperature.
7)Measure oil pressure at 2,000 rpm and 4,000 rpm respectively.
Oil pressure specification
110 – 190 kPa (1.1 – 1.9 kgf/cm2, 16.0 – 27.6 psi) at 2,000 rpm
310 – 390 kPa (3.2 – 4.0 kgf/cm2, 45.0 – 56.6 psi) at 4,000 rpm
8)Stop engine.
9)Remove air cleaner assembly.
10)Disconnect HO2S-1 connector.
11)Remove special tools.
12)Install oil pressure switch.
13)Connect HO2S-1 connector.
14)Install air cleaner assembly.
15)Start engine and check oil pressure switch for oil leakage. If oil leakage is found, repair incorrect installation of oil pressure switch.
16)Remove air cleaner assembly.
17)Install oil pressure switch cover.
18)Install exhaust manifold cover.
19)Check DTC.
If any DTC is displayed, clear DTC.
If any DTC is displayed, clear DTC.
